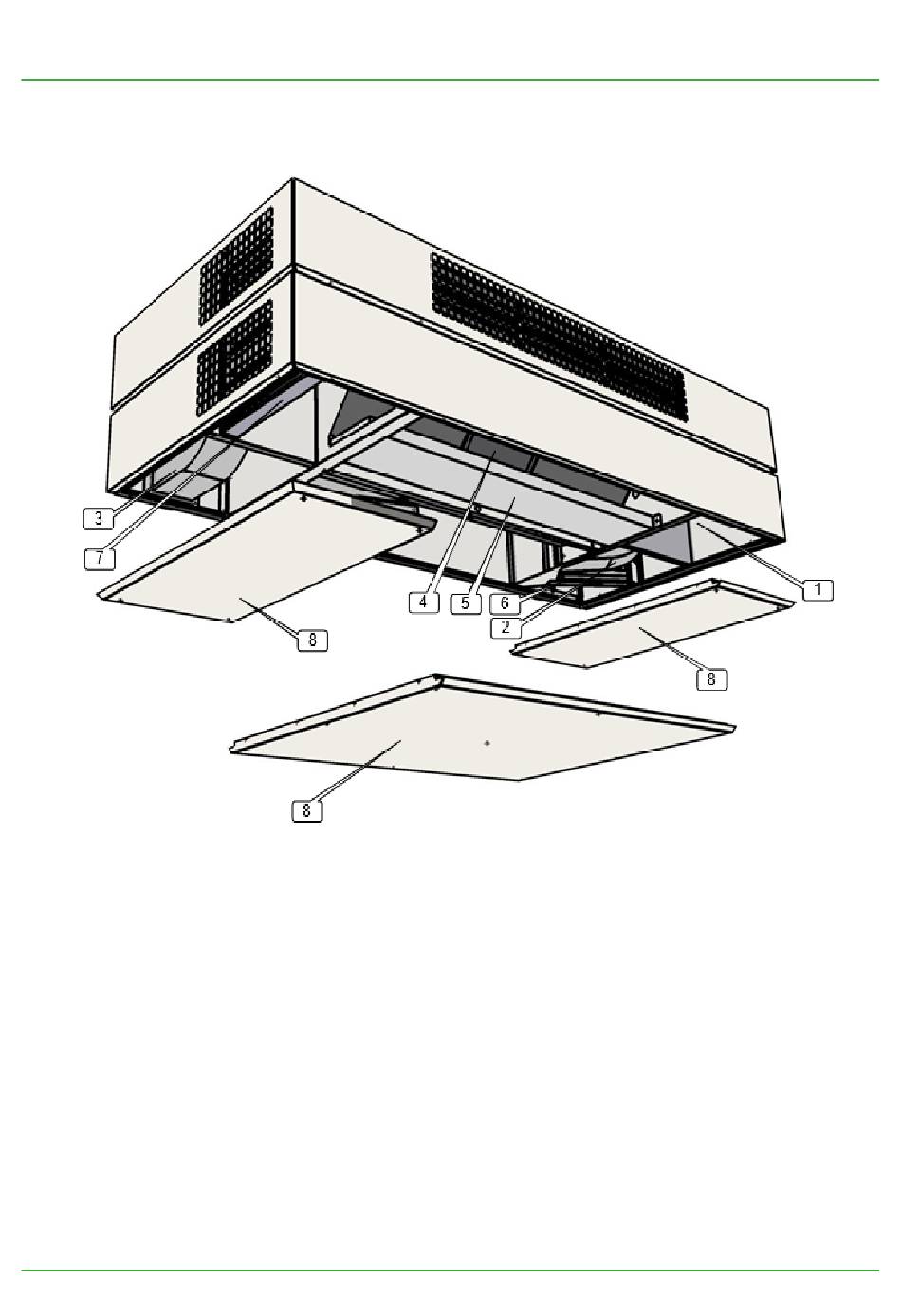

2.0 Product Overview
COMPONENTS CLASS UNIT
1. Centralized wiring box of the CB4 TAC5 DG circuit
(factory pre-wired)
2. Supply fan
3. Exhaust fan
4. Air/Air heat exchanger ( + modulating 100% by-pass)
6
5. Drain pan
6. GF-ePM10 50% filter at fresh air inlet
7. GF-ePM10 50% filter on exhaust air
8. Access panels
9. Air inlet damper
10. Internal postheating electric coil (KWout)
Operation and maintenance
instructions – CLASS UNIT TAC5
