5.1 COMMISSIONING WITH TACtouch INTERFACE
The hand-held terminal consists of a 4.3" touch screen with a 1,5 metre long cable for connection to the air handling
unit's control circuit board.
If the hand-held terminal is not used for 20 minutes, it switches over to the sleep mode.
The Touchscreen controller can be used outdoors, but it must be kept at a weatherproof place.
Data:
Operating temperature:
Maximum length of the cable:
Protection class:
Dimensions [mm]:
Power consumption:

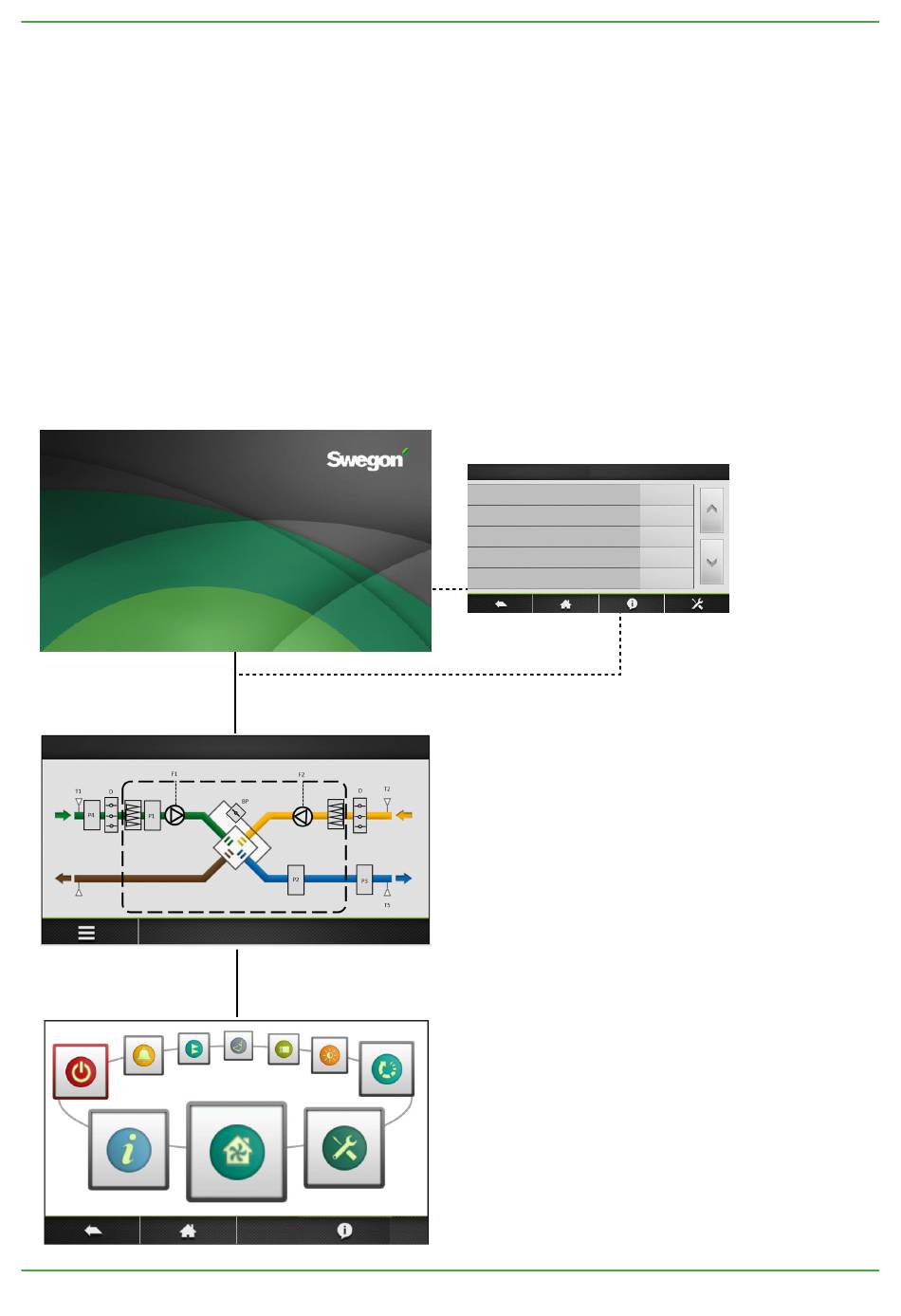

IMAGE MANAGEMENT
Start-up image
16
0... + 50°C
>100 metres
IP20
96,8x148,8x14,5
120mA
At the first start up, the basic setup menu will be acti-
vated automatically. See section 6.1.3
BASIC SETUP
LANGUAGE
UNIT
AIRFLOW REGULATION
TEMPERATURE
FIRE ALARM
Home Screen. See Section 6.1.1.
By default, the home screen will be shown if no other
menu is opened by the user or if selected in the main
menu.
N.B.! The appearance of the image varies depending on
the type of air handling unit and functions selected.
Main menu. See Section 6.1.2.
The main menu is presented as a rotary menu. After
pressing the "menu"-button at the bottom left corner of
the Home Screen, the rotary menu will be shown.
