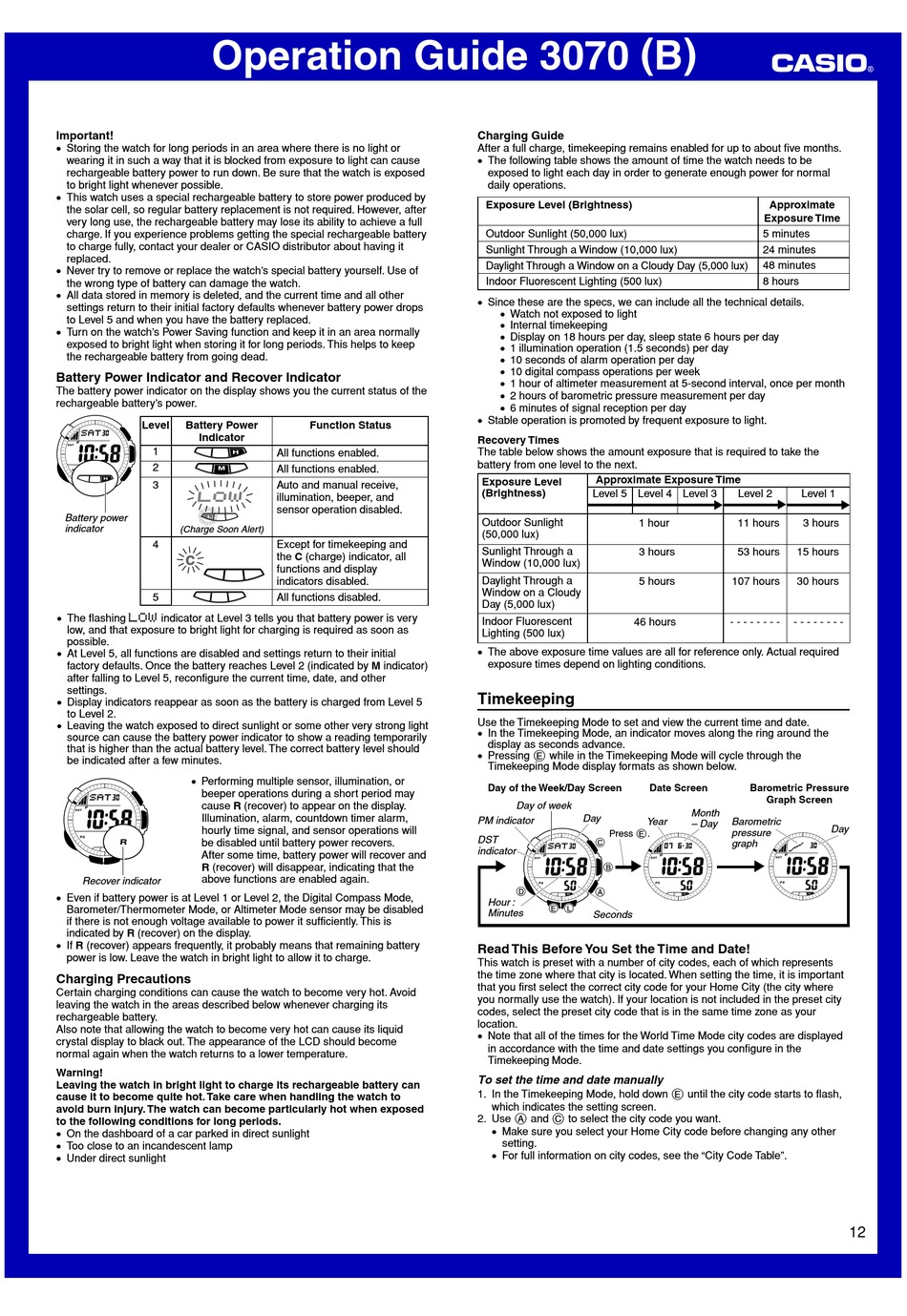

Operation Guide 3070 ( B )
Important!
• Storing the watch for long periods in an area where there is no light or
wearing it in such a way that it is blocked from exposure to light can cause
rechargeable battery power to run down. Be sure that the watch is exposed
to bright light whenever possible.
• This watch uses a special rechargeable battery to store power produced by
the solar cell, so regular battery replacement is not required. However, after
very long use, the rechargeable battery may lose its ability to achieve a full
charge. If you experience problems getting the special rechargeable battery
to charge fully, contact your dealer or CASIO distributor about having it
replaced.
• Never try to remove or replace the watch's special battery yourself. Use of
the wrong type of battery can damage the watch.
• All data stored in memory is deleted, and the current time and all other
settings return to their initial factory defaults whenever battery power drops
to Level 5 and when you have the battery replaced.
• Turn on the watch's Power Saving function and keep it in an area normally
exposed to bright light when storing it for long periods. This helps to keep
the rechargeable battery from going dead.
Battery Power Indicator and Recover Indicator
The battery power indicator on the display shows you the current status of the
rechargeable battery's power.
Level
Battery Power
Indicator
1
2
3
l
Battery power
indicator
(Charge Soon Alert)
4
c
5
• The flashing
LOW
indicator at Level 3 tells you that battery power is very
low, and that exposure to bright light for charging is required as soon as
possible.
• At Level 5, all functions are disabled and settings return to their initial
factory defaults. Once the battery reaches Level 2 (indicated by M indicator)
after falling to Level 5, reconfigure the current time, date, and other
settings.
• Display indicators reappear as soon as the battery is charged from Level 5
to Level 2.
• Leaving the watch exposed to direct sunlight or some other very strong light
source can cause the battery power indicator to show a reading temporarily
that is higher than the actual battery level. The correct battery level should
be indicated after a few minutes.
• Performing multiple sensor, illumination, or
beeper operations during a short period may
cause R (recover) to appear on the display.
Illumination, alarm, countdown timer alarm,
hourly time signal, and sensor operations will
be disabled until battery power recovers.
After some time, battery power will recover and
R (recover) will disappear, indicating that the
above functions are enabled again.
Recover indicator
• Even if battery power is at Level 1 or Level 2, the Digital Compass Mode,
Barometer/Thermometer Mode, or Altimeter Mode sensor may be disabled
if there is not enough voltage available to power it sufficiently. This is
indicated by R (recover) on the display.
• If R (recover) appears frequently, it probably means that remaining battery
power is low. Leave the watch in bright light to allow it to charge.

Charging Precautions

Certain charging conditions can cause the watch to become very hot. Avoid
leaving the watch in the areas described below whenever charging its
rechargeable battery.
Also note that allowing the watch to become very hot can cause its liquid
crystal display to black out. The appearance of the LCD should become
normal again when the watch returns to a lower temperature.
Warning!
Leaving the watch in bright light to charge its rechargeable battery can
cause it to become quite hot. Take care when handling the watch to
avoid burn injury. The watch can become particularly hot when exposed
to the following conditions for long periods.
• On the dashboard of a car parked in direct sunlight
• Too close to an incandescent lamp
• Under direct sunlight
Function Status
All functions enabled.
All functions enabled.
Auto and manual receive,
illumination, beeper, and
sensor operation disabled.
Except for timekeeping and
the C (charge) indicator, all
functions and display
indicators disabled.
All functions disabled.
Charging Guide
After a full charge, timekeeping remains enabled for up to about five months.
• The following table shows the amount of time the watch needs to be
exposed to light each day in order to generate enough power for normal
daily operations.
Exposure Level (Brightness)
Outdoor Sunlight (50,000 lux)
Sunlight Through a Window (10,000 lux)
Daylight Through a Window on a Cloudy Day (5,000 lux)
Indoor Fluorescent Lighting (500 lux)
• Since these are the specs, we can include all the technical details.
• Watch not exposed to light
• Internal timekeeping
• Display on 18 hours per day, sleep state 6 hours per day
• 1 illumination operation (1.5 seconds) per day
• 10 seconds of alarm operation per day
• 10 digital compass operations per week
• 1 hour of altimeter measurement at 5-second interval, once per month
• 2 hours of barometric pressure measurement per day
• 6 minutes of signal reception per day
• Stable operation is promoted by frequent exposure to light.
Recovery Times
The table below shows the amount exposure that is required to take the
battery from one level to the next.
Approximate Exposure Time
Exposure Level
(Brightness)
Level 5 Level 4 Level 3
Outdoor Sunlight
1 hour
(50,000 lux)
Sunlight Through a
3 hours
Window (10,000 lux)
Daylight Through a
5 hours
Window on a Cloudy
Day (5,000 lux)
Indoor Fluorescent
46 hours
Lighting (500 lux)
• The above exposure time values are all for reference only. Actual required
exposure times depend on lighting conditions.
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
• In the Timekeeping Mode, an indicator moves along the ring around the
display as seconds advance.
• Pressing E while in the Timekeeping Mode will cycle through the
Timekeeping Mode display formats as shown below.
Day of the Week/Day Screen
Day of week
Day
PM indicator
Year
Press E.
DST
indicator
Hour :
Minutes
Seconds
Read This Before You Set the Time and Date!
This watch is preset with a number of city codes, each of which represents
the time zone where that city is located. When setting the time, it is important
that you first select the correct city code for your Home City (the city where
you normally use the watch). If your location is not included in the preset city
codes, select the preset city code that is in the same time zone as your
location.
• Note that all of the times for the World Time Mode city codes are displayed
in accordance with the time and date settings you configure in the
Timekeeping Mode.
To set the time and date manually
1. In the Timekeeping Mode, hold down E until the city code starts to flash,
which indicates the setting screen.
2. Use A and C to select the city code you want.
• Make sure you select your Home City code before changing any other
setting.
• For full information on city codes, see the "City Code Table".
Approximate
Exposure Time
5 minutes
24 minutes
48 minutes
8 hours
Level 2
Level 1
11 hours
3 hours
53 hours
15 hours
107 hours
30 hours
- - - - - - - -
- - - - - - - -
Date Screen
Barometric Pressure
Graph Screen
Month
Barometric
– Day
pressure
graph
Day
12
