BodyMed BDMDOORTC Instruction Manual

Overdoor Cervical Traction Set
Thank you for purchasing the BodyMed
manual carefully before use.

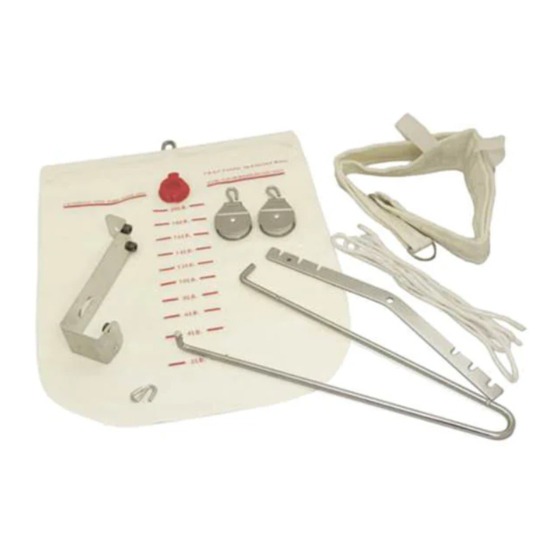

KIT CONTENTS
• Hook-and-loop head halter
• 20-lb. capacity water bag
• S-hook
• V-brace
ASSEMBLY INSTRUCTIONS
Slide the two pulleys by their hooks onto the V-brace.
Connect the V-brace to the door bracket by inserting
the horizontally bent end of the V-brace through the
raised metal opening on the door bracket.
Then squeeze the V-brace slightly and insert the
downward bent end into the drilled hole in the
bottom of the bracket.
Place the assembled bracket over the top of an
interior door (maximum thickness 1-5/8")
Instruction Manual
Overdoor Cervical Traction Set. Please read this
®
• Pulleys (2)
• Traction cord
• Door bracket
• Spreader bar
Top Edge of Door
Over-Door
Bracket
Reorder Number
BDMDOORTC
V-Brace
Pulley Assembly
