- Page 1 Reorder Number ZZA250 Transcutaneous Electrical Nerve Stimulator (TENS) Instruction Manual ENGLISH READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
About the Device ..................4 The Device Controls ................5 Attaching the Lead Wires ...............5 Electrode Selection and Care ..............6 Connecting the Device ................6 Battery Information ................7 Changing the Battery ................7 Cleaning the Device ................8 Troubleshooting ..................8 Technical Specifications .................9 Distributed by BodyMed ®... -
Page 3: General Description
• 2 lead wires • Operation manual If you are missing any of these items, please contact BodyMed ® 1-866-528-2152 before using the unit. Limited Product Warranty This warranty does not extend to the normal wear of the product and is void if the... -
Page 4: Indications And Contraindications
Indications and Contraindications Read the operation manual before using the device. Federal Law restricts this device to sale by, or on the order of, a physician or licensed practitioner. Follow your physician’s or licensed practitioner’s precise instructions and let him or her show you where to apply the electrodes. - Page 5 Isolated cases of skin irritation may occur at the site of electrode placement following long-term application. Always properly clean skin before use. If skin irritation occurs, discontinue use. Do not resume use of the BodyMed TENS unit until you have ®...
-
Page 6: About The Device
Warnings and Precautions (continued) BODYMED SELLS THIS PRODUCT AS-IS AND MAKES NO WARRANTY, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ALL SUCH WARRANTIES BEING HEREBY EXPRESSLY EXCLUDED. About the Device The device offers two controllable output channels. -
Page 7: The Device Controls

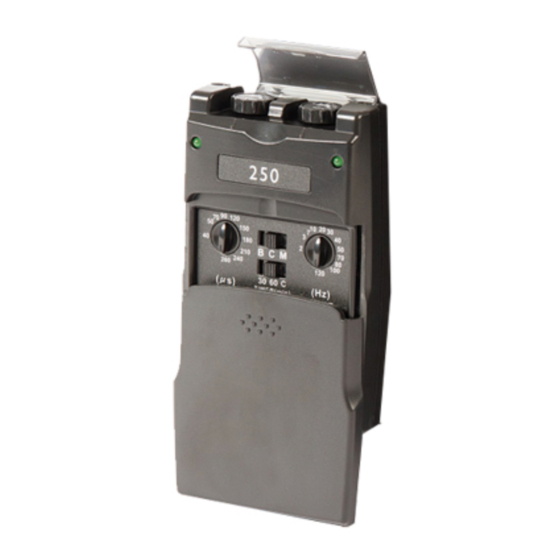

The Device Controls SLIDE COVER A cover conceals the controls for Mode, Time, Width, and Rate. Press the front of the cover and pull down in order to open the cover. AMPLITUDE CONTROLS The Amplitude Control knobs are located on the top of the unit. The Amplitude Control knobs function as ON/OFF controls and adjust the intensity of the stimulation. -
Page 8: Electrode Selection And Care
Follow application procedures outlined in electrode packaging to maintain stimulation and prevent skin irritation. The packaging will provide instructions for care, maintenance and proper storage of the electrodes. Be sure to use the electrodes provided by BodyMed and/or similar FDA legally ®... -
Page 9: Battery Information
Connecting the Device (continued) 6. Adjust the Amplitude Control knobs: Locate the Amplitude Control knobs at the top of the unit. Slowly turn the Amplitude Control knob for Channel 1 clockwise until you reach the intensity recommended by your physician or licensed practitioner. Always start with the lowest intensity and increase slowly. -
Page 10: Cleaning The Device
Amplitude Control knobs to the OFF position (counterclockwise) for about 7 seconds. Next, gradually turn the Amplitude Control knobs clockwise until stimulation is felt. If device is still not working, turn the unit off and contact BodyMed ® If any other problems occur, please consult or return the device to BodyMed ®... -
Page 11: Technical Specifications
Technical Specifications Channel: Dual, isolated between channels. Adjustable 0-80 mA peak into 500 Ω load Pulse Intensity: each channel, constant current. Pulse Rate: 2-120 Hz (adjustable). μ μ Pulse Width: s-260 s (adjustable). Timer: 30-, 60-minute and continuous mode. Function Modes: B: Cycle Bursts, 2 bursts/sec., 9 Pulses/burst, and 100 Hz, width is adjustable. - Page 12 Reorder Number ZZA250 Distributed by BodyMed ® Hudson, Ohio 44236 1-866-528-2152 Made in Taiwan...
