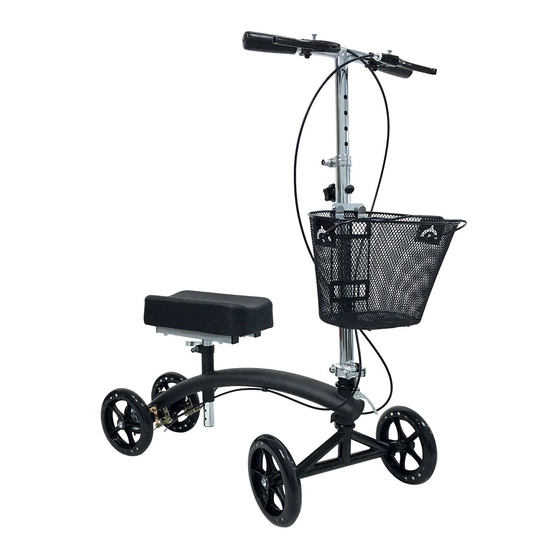

- Page 1 ZZRWAL03 Knee Walker with Dual Brake System Instruction Manual...
-
Page 2: Product Introduction
Stay active and live independently while you recover with the BodyMed Knee Walker! ®... -
Page 3: Product Specifications
Handlebar with Anti-Slide Grips and Hand Brakes Height Adjustable Steering Column Attachable Basket Padded Contoured Knee Pad Height Adjustable Knee Pad Column Dual Back Wheel Brakes Sturdy Solid Bar Frame Product Specifications • Height adjustable steering column, 30”–40” (78 cm–102 cm) •... -
Page 4: Installation
INSTALLATION Steering Column Assembly When you receive your knee walker, the steering column will be in the folded position. 1. Raising the Steering Column a. Pull up the quick release clamp lever at the base of the steering column to release the clamp, then push the lever forward to disengage. - Page 5 IMPORTANT NOTE...
- Page 6 Knee Pad Assembly and Height Adjustment 1. Release the quick release clamp. 2. Remove the pin on the knee pad assemble bar. 3. Insert the knee pad column into the column on the frame, then adjust the knee pad column to the proper height. 4.
-
Page 7: Brake Adjustment
Brake Adjustment During assembly or routine maintenance, it is important to check the tightness of the braking mechanism. The pressure of the braking mechanism on the brake wheel should be enough so that the brake wheel does not turn and is not overly tight when the hand brake is fully squeezed. -
Page 8: Hand Brake Adjustment
Hand Brake Adjustment The position of the hand brakes may be adjusted to suit the user’s preference. • Use a 3/16 Allen wrench to loosen the hand brakes. • Reposition each hand brake to a comfortable use position, then retighten with the Allen wrench to set each in place. Use Allen wrench to adjust position Parking Brake Mode 1. -
Page 9: How To Use
Basket Attachment 1. To install the basket, locate the two upper holes on the back of the basket. 2. Insert these two holes over the front anchor tabs on the steering column, then press down until the basket is securely fitted into the front anchor tabs. -
Page 10: Safety Considerations
SAFETY CONSIDERATIONS 1. When adjusting the height of the handlebars, make sure the star screw (knob) locks tightly for a secure hold. 2. Be sure to hold onto the handlebar grips using two hands. 3. To slow down or stop the knee walker, squeeze the two hand brakes to engage the rear-wheel brakes. -
Page 11: Limited Product Warranty
This warranty extends only to the original purchase. The purchase receipt or other proof of date of original purchase is required before full replacement will be provided. Please contact BodyMed at 1-866-528-2152 ® BODYMED MAKES NO OTHER WARRANTY, EXPRESS OR ®... - Page 12 Knee Walker with Dual Brake System ZZRWAL03 Manufactured for BodyMed Hudson, Ohio 44236 • 1-866-528-2152...
