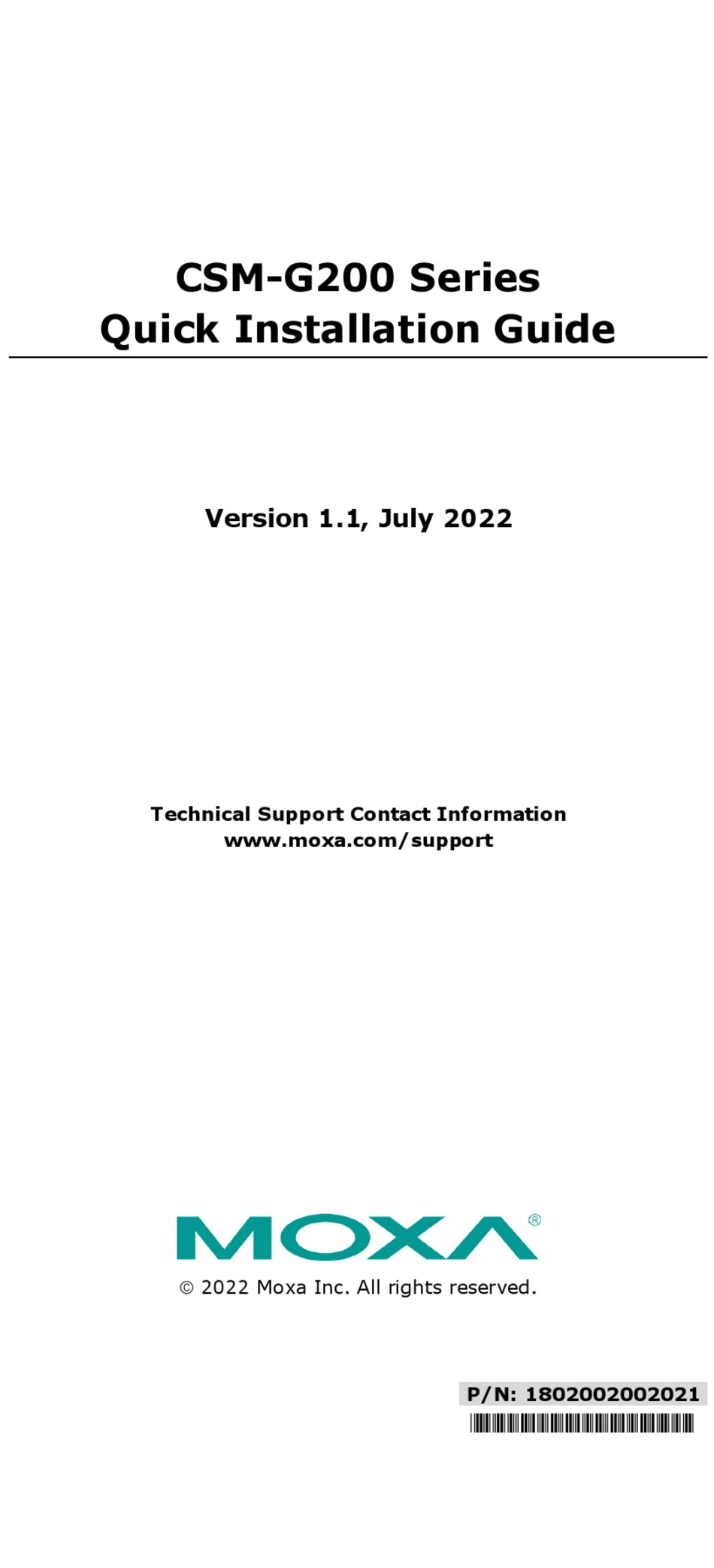

- Page 1 CSM-G200 Series Quick Installation Guide Version 1.1, July 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802002002021 *1802002002021*...

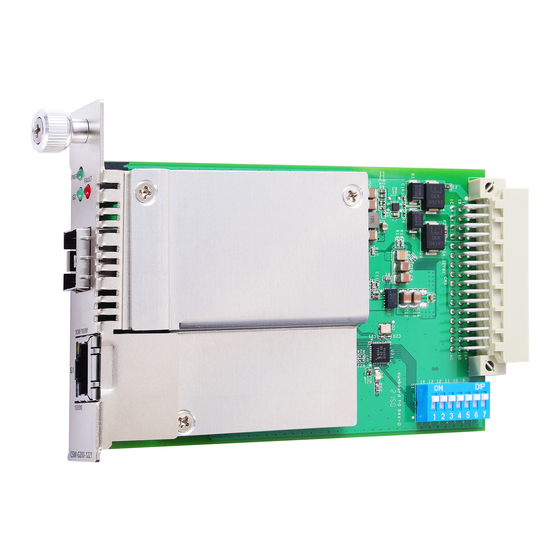

- Page 2 Overview Introduction The CSM-G200 Series is a Gigabit Ethernet to optical fiber slide-in media converter module and is part of the NRack System. It provides Ethernet media conversion from 10/100/1000 BaseT(X) to 100/1000 BaseFX (SFP slot) and can be installed in every chassis of the NRack System.
- Page 3 • Plug and play • Hot-swap • Jumbo frame Package Checklist Moxa’s CSM-G200 Series is shipped with the following items. • CSM-G200 slide-in media converter module • Quick installation guide (printed) • Warranty card NOTE: Please notify your sales representative if any of the above items are missing or damaged.
- Page 4 CSM-G200 slide-in modules. Communication Connections The CSM-G200 Series has one 10/100/1000BaseT(X) Ethernet port and one 100/1000BaseFX (SFP slot) fiber port. RJ45 Ethernet Port Connection The CSM-G200 has a 10/100/1000BaseT(X) Ethernet port located on the front panel to connect to Ethernet-enabled devices.
- Page 5 1000BaseT(X) Ethernet Port Connection 1000BaseT(X) data is transmitted on differential TRD+/- signal pairs over copper wires. When connected to a 1000 Mbps Ethernet port, the pinouts and cable wiring diagrams for both the MDI (NIC-type) and MDI-X (HUB/switch-type) ports for both straight-through and crossover Ethernet cables are: MDI/MDI-X Port Pinouts Signal...
- Page 6 ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the laser beam. DIP Switch Settings Function ON (Default) Force Fiber Speed Auto 1000 Mbps TP Auto Negotiation Enable Disable Force TP Speed 1000 Mbps...
- Page 7 Auto-Negotiation and Speed Sensing All the CSM-G200’s RJ45 Ethernet ports independently support auto- negotiation for transmission speeds of 10 Mbps, 100 Mbps, and 1000 Mbps in operations, according to the IEEE 802.3u standard. This means that some nodes could operate at 10 Mbps, while other nodes are operating at 100 Mbps or 1000 Mbps.
