windirect TOTAL CRUNCH EVOLUTION Manual page 5

3A
15
5
26
6
6
26
3B
4A
11
21
10
18
4B 24
8
4C
7
7

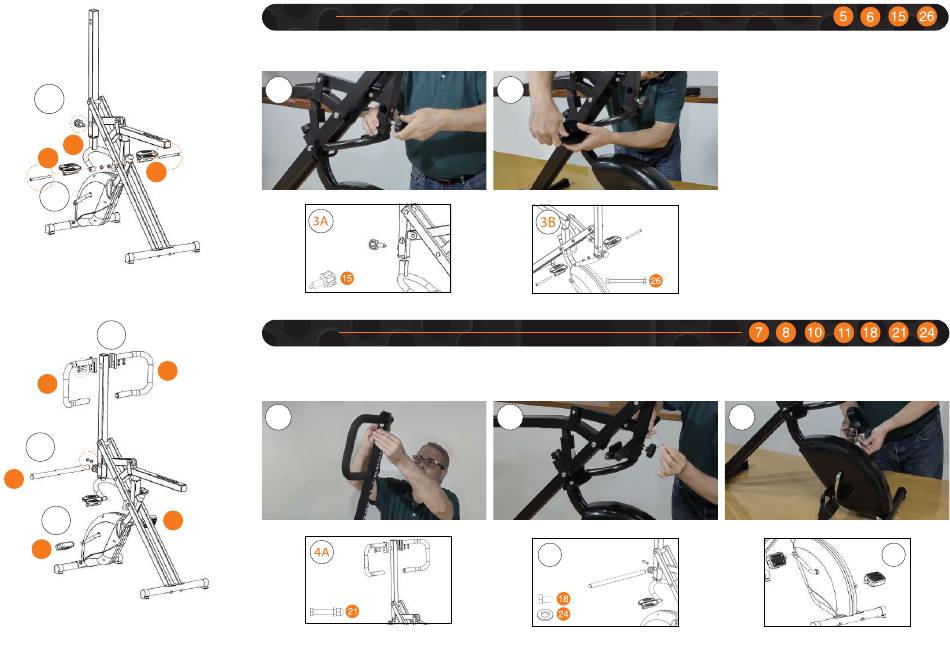

STEP 3
- Fix the foot tube (5) to the vertical pipe (3A), using the knob (15).
- Attach foot tube pedals (6) to the foot tube (3B), using the screw 26 (2 pcs.).
3A
x1
STEP 4
- Fix each handlebar (10 / 11) to the vertical pipe (4A), using the screw 21 (2 pcs.).
- Attach upper foot tube (8) to the vertical pipe (4B), using the screw 18 (1 pc.) and the washer 24 (1 pc.).
- Assemble bike pedals (7) to the main frame tube (4C); tighten the screws with a tool.
4A
x2
3B
x2
4B
4B
x1
x1
4C
4C
