windirect TOTAL CRUNCH EVOLUTION Manual page 4

1C
25
1
2
4
3
1A
20
19
1B
9 2C
2B
25
13
12
22
23
2A
25

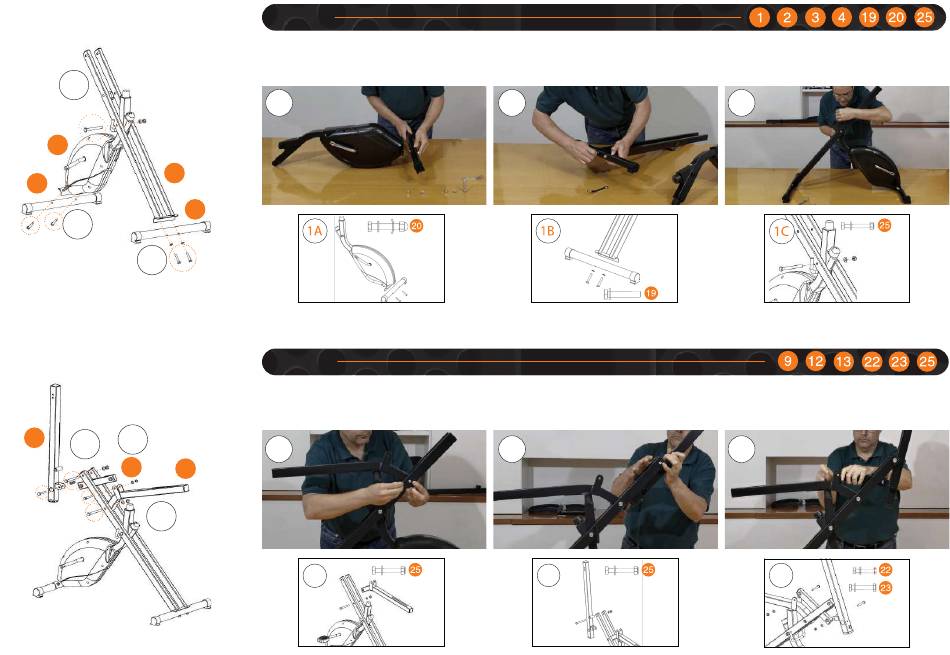

STEP 1
- Fix the rear stabilizer (4) to the main frame tube (1) (1A), using the screw 20 (2 pcs.).
- Fix the front stabilizer (3) to the rear frame pipe (2) (1B), using the screw 19 (2 pcs.).
- Assemble the main frame tube with the rear frame pipe (1C), using the screw 25 (1 pc.).
1A
x2
STEP 2
- Assemble the seat tube (12) to the rear frame pipe (2A), using the screw 25 (1 pc.).
- Assemble the vertical pipe (9) to the rear frame pipe (2B), using the screw 25 (1 pc.).
- Assemble the large piece (13) to the seat tube and the vertical pipe (2C), using the screw 22 (1 pc.) and 23 (1 pc.).
2A
x1
2A
1B
x2
2B
x1
2B
1C
x1
2C
x1
2C
x1
