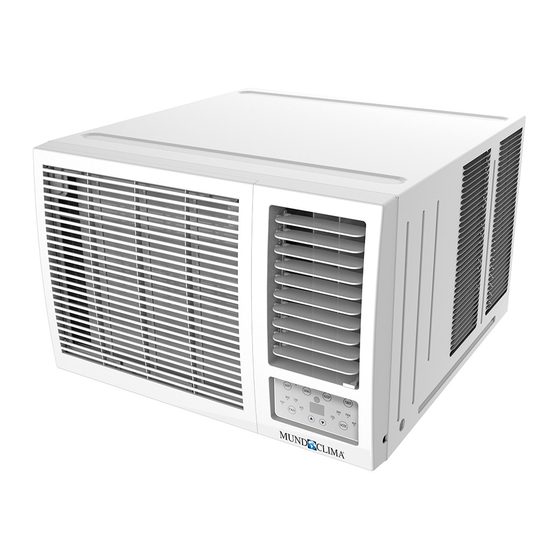

- Page 1 DC INVERTER WINDOW TYPE AIR CONDITIONER Installation and Owner`s manual MUVR-12-H10 CL20384 English www.mundoclima.com...
-
Page 2: Table Of Contents
MUNDOCLIMA MUVR DC inverter window type CONTENTS Thank you for choosing air conditoner.Our design is based on the best eff- iciency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation. -
Page 3: The Refrigerant
MUNDOCLIMA MUVR DC inverter window type Please read this operating manual carefully before operating the unit. to the material objects for reference. The Refrigerant ● To realize the function of the air conditioner unit, a special refrigerant circulates leads to explosion . -
Page 4: Precautions
MUNDOCLIMA MUVR DC inverter window type Precautions Warning This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Installation
MUNDOCLIMA MUVR DC inverter window type Installation Installation precaution: Window type conditioner is so valuable and the improper installation of it will cause a lot of da- mage! Please associate the professional tech- nician to install the unit and don’t install it by yourself. Otherwise, we are not responsible for the damage like this. - Page 6 MUNDOCLIMA MUVR DC inverter window type Installation procedure: Remove the sticker from the front panel. Put the unit into the installation hole. ● When installing the unit, it should be sl- anted down to the back to avoid the en- largement of noise or vibration.
- Page 7 MUNDOCLIMA MUVR DC inverter window type Drain water : Drain joint and drain hose need to be installed before using. Drain hose is not included in the products, you need to purchase it locally to satisfy your particular needs. Use the following procedure to install drain joint and drain hose.
-
Page 8: Notes For Installation
MUNDOCLIMA MUVR DC inverter window type Notes for installation Remove Before removing air conditioner to the other place, you Then it must be done under the direction of the profe- ssional technician. In addition, the charge of this must be paid. -
Page 9: Function
MUNDOCLIMA MUVR DC inverter window type Function Introduction Window type room air conditioners can Autumn Spring regulate the room temperature and dry the Summer Winter Room room. It is convenient for your work, study temp. and life. It can be widely used in residence, Wind so on. -
Page 10: Power Requirement
MUNDOCLIMA MUVR DC inverter window type Power requirement Rated voltage : 220-240V~ 50Hz ● The electric components will be damaged when the voltage is too high. If the voltage is too low, the compressor will vibrate violently to damage the refrigerant system and easily cause the compressor and electric components not work. -
Page 11: Part Identification
MUNDOCLIMA MUVR DC inverter window type Part identification Panel outlook picture, just for reference, please take the real unit as standard. A i r Air outlet Louver i n t a k e Cabinet Air filter tab Fr ont panel... -
Page 12: Remote Control Operation Procedure
MUNDOCLIMA MUVR DC inverter window type Remote control operation procedure Buttons on remote controller HEALTH button SWING button ON/OFF button MODE button +/- button SPEED button SLEEP button TURBO button TIMER button ECO button CLEAN button I FEEL button DISPLAY button... -
Page 13: Introduction For Buttons On Remote Controller
MUNDOCLIMA MUVR DC inverter window type Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 14 MUNDOCLIMA MUVR DC inverter window type Introduction for buttons on remote controller + / - button ● Pressing + or - button once will increase or decrease set temperature by 1°F(°C). Hold + or - button for 2s, set temperature on remote controller will change quickly.
- Page 15 MUNDOCLIMA MUVR DC inverter window type Introduction for buttons on remote controller CLEAN button Press this button to turn onself-cleaning technology . Note:This function is not available for this model. I FEEL button Press this button to turn on I FEEL function .
- Page 16 MUNDOCLIMA MUVR DC inverter window type Instruction for remote controller 1.The remote controller uses two AAA batteries under normal condition, the batteries l ast for about 6 months. Please use two new batteries of similar type (pay attention to the poles in installing).
-
Page 17: Remote Control Panel
MUNDOCLIMA MUVR DC inverter window type Remote control panel Note: If wireless remote controller is lost, open the surface panel and operate manually. ON/OFF BUTTON SLEEP BUTTON Operation starts when pressing this button, and stops MODE BUTTON when pressing this button again. -
Page 18: Operation Tips
MUNDOCLIMA MUVR DC inverter window type Operation Tips Operation for comfort and economy Do not overcool the room te- Keep blind or curtains closed. Keep the room temp. uniform. mperature. This is not good Do not let sunshine enter the... -
Page 19: Caution
MUNDOCLIMA MUVR DC inverter window type Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard. - Page 20 MUNDOCLIMA MUVR DC inverter window type Always wait at Always wait at least 3 minutes before least 3 minutes. switching the air conditioner on again after you have switched it off during cooling or heating. Inappropriate treatment of the unit involves the risk of severe damages of people and material.
-
Page 21: Care And Maintenance
MUNDOCLIMA MUVR DC inverter window type Care and maintenance Always turn off the air conditioner and main power supply before cleaning to ensure safety. Cleaning unit 1. Cut power of f before cleaning. Plug out only washed at least once every two weeks or as after air con- often as it needs cleaning. -
Page 22: Troubleshooting Guide
MUNDOCLIMA MUVR DC inverter window type Troubleshooting guide Please check the following items before asking for repair, it saves your time andmoney. Fault phenomenon Trouble-shooting ● Is there a power failure? Air conditioner ● Is the plug out? does not oper- ●... -
Page 23: After Service
MUNDOCLIMA MUVR DC inverter window type Malfunction code Solution Means defrosting status. It’s the normal phenomenon. Compressor stalling PFC protection Capacitor charging fault DC line voltage drop protection Indoor ambient temp sensor short/open Outdoor ambient temp sensor short/open Outdoor mid-coil temp sensor short/open... -
Page 24: Safety Operation Of Flammable Refrigerant
MUNDOCLIMA MUVR DC inverter window type Safety operation of flammable refrigerant Qualification requirement for installation and maintenance man 1. All the work men who are engaging in the refrigeration system should bear the for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised 2. - Page 25 MUNDOCLIMA MUVR DC inverter window type ● Welding 1. If you should cut or weld the refrigerant system pipes in the process of maintain- ing, please follow the steps as below a. Shut down the unit and cut power supply b.
- Page 26 C/ NÁPOLES 249 P1 08013 BARCELONA SPAIN (+34) 93 446 27 80 www.mundoclima.com...
