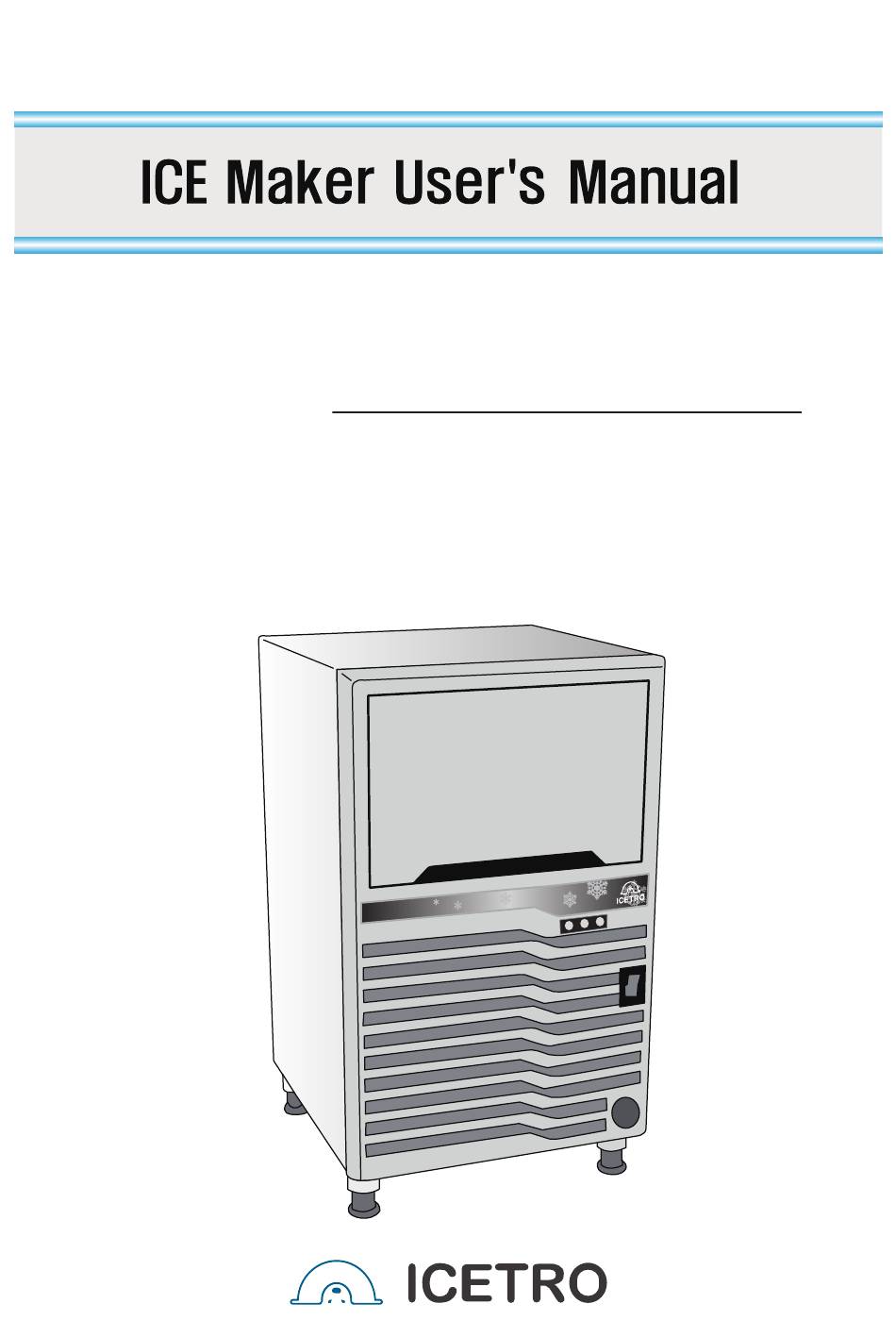

IU / WU-0100-AC / AH
IU / WU-0100-ACNF / AHNF
This machine cannot be used in any other country
●
where the electric voltage for its power supply is not available.
This product is designed for indoor installation.
●
Please be sure to install it indoors.
The external appearance, design, color, and components
●
of this machine may be changed without prior notice.
C ol d IC E
Th e St or y of
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for icetro IU / WU-0100-AC / ACNF
Summary of Contents for icetro IU / WU-0100-AC / ACNF
- Page 1 IU / WU-0100-AC / AH IU / WU-0100-ACNF / AHNF This machine cannot be used in any other country ● where the electric voltage for its power supply is not available. This product is designed for indoor installation. ● Please be sure to install it indoors. The external appearance, design, color, and components ●...
-
Page 2: Table Of Contents
Contens Features of the Product Safety Warning Safety Cautions 10~11 Part name Cautions for Installation 13~14 Installing the Product Correct Operation Cleaning and Disassembling Cleaning Method 18~20 Sanitizing Procedure 21~22 Ice Making and Detachment Operations Inspection Items Before Calling Service Specifications Product Warranty... -
Page 3: Features Of The Product
Features of the Product Thank you for purchasing this product. Read through this manual carefully because it is intended to prevent any loss or accident caused by careless use and let you use the product with convenience and ease. New technology from “Craftsmanship,”quick freeze for all seasons, and the best ice making capability in the same class!!! 1. -
Page 4: Safety Warning 4~9
Safety Warning In order to prevent accidents caused by wrong use and to conveniently use the product, be cautious of the following: Be sure to understand the following symbols and their descriptions first. If you neglect this symbol and wrongly use the product, it may cause a fire, serious injury or death. - Page 5 Warning ■ The Ice Machine must be earthed. - Do not use an adapter or an extension cord. - Do not remove the grounding prong. - The unit must be installed in accordance with the state and local electrical and plumbing codes. ■Use the outlet that is connected to the circuit breaker (sensitivity current: 30 mA or below).
- Page 6 Warning ■Do not forcibly bend the power plug or place any heavy material on it. It cause damage to the plug. - It may cause an electric leak or electric shock. ■If the power cord is damaged or the metal part of the power plug is loosely conntected, do not use the power cord.
- Page 7 Warning ■ Do not let the person other than service personnel disassemble, repair or modify the product. - Arbitrary disassemble, repair or modification may affect the product safety. - If any failure is detected, refer to this manual or contact the service agency. ■Install the product on an even and solid place.
- Page 8 Warning For cleaning and maintenance, pull off the power plug and close ■ the water supply valve. Perform the work after the operation stops. - It may cause an electric shock or injury. Be sure to clean the condenser filter on the front panel one or more times in a month.
- Page 9 Warning ■Be sure to use the drinking water supply. ■When moving the product, do not go over 45 degrees on the incline. - It may cause a product failure. ■Do not make the drain hose twisted or kinked. - It may cause water leak, failure or no water supply. ■The outlet must be occupied by this ice maker only.
-
Page 10: Safety Cautions 10~11
Safety Cautions Caution ■Use this product as described in the user manual. - If you do not follow the instructions, it may cause an electric shock or property loss. - When transferring the product to another person, transfer the user manual also. ■When the product is not used for a long time (e.g. - Page 11 Caution ■When storing the ice made for a long time, move it to the refrigerator. - The ice box in the ice maker has no freezing function except for the coldness of ice. - If the ice is stored in the ice box for a long time, the ice melts. So store the ice in the refrigerator.
-
Page 12: Part Name
Part names (ICETRO-60V/VH) Front view Rear view Door Rear Cover Display Lamp Front Cover Connection for Drainage Power Switch Water Supply Connection Hole for Purification Filter Power Cord Leveling Foot Detailed drawing Ice Detection Sensor Ice Making Evaporator Water Supply Hose... -
Page 13: Cautions For Installation 13~14
Cautions for Installation Installation place Install the product in the place with no heat generator..- Install the product away from the heat generator such as heater and gas stove. Do not install it in the place where the ambient temperature is within 5 to 38℃. Install the product in a place that has good ventilation.. - Page 14 Installation place Install the product inside a house..the drain hose - Do not place the product outdoors. must be sloppy - Place the drain hose to slope downward for better drainage. Install the product in the place where children cannot access..
-
Page 15: Installing The Product
Installing the Product 1. Removing the packing box -After removing the packing box of the ice maker, take out the provided parts from the ice maker. 2. Attaching the Feet - Attach four height control stoppers among the provided parts to the bottom of the product. -
Page 16: Correct Operation
Correct Operation Protection of the water supply hose - Do not place any heavy material on the water supply hose or nor walk on it. Adequate water pressure, water temperature, and ambient temperature - Use the product while the supply pressure is within 1 to 5 kgf/㎠ (14.22psig~71.12psig), the water temperature is within 5 to 32℃, and ambient temperature is within 5 to 38℃(41~89.6℉). -
Page 17: Cleaning And Disassembling
Cleaning and Disassembling Read the following carefully for proper handling.! Warning : Pull off the power plug before cleaning the product or replacing the parts of it. It may cause an electric shock or fire. - Do not directly spray water on the ice maker. It may cause a product Danger ! failure, electric leak or electric shock. -
Page 18: Cleaning Method 18~20
Cleaning Method 【Cleaning the ice box and water tank】 1. Set the position of the power switch (ICE/OFF/WASH) to OFF. 2. Remove the power cord from the outlet. 3. Block the water supply. 4. Open the door of the ice maker. Door Be careful not to bump your head into the edge of the door while it is open. - Page 19 Cleaning the condenser filter Condenser filter 1. After pulling up the condenser filter that is inserted in the front panel, use a vacuum cleaner for removing dust. Wipe the filter with lukewarm water (approx. 25℃(77℉)) and neutral detergent, dry it, and insert it into the front front panel panel.
- Page 20 【Using the WASH mode】 1. Set the position of the switch located at the lower right to OFF. 2. After removing ice, dispose it or store it in the ice box or refrigerator. 3. Diute 30g(1.058 oz) of neutral detergent in 8 liters(2.11gal) of warm WASH water (35 to 45℃...
-
Page 21: Sanitizing Procedure 21~22
Sanitizing Procedure Use a sanitizier to remove algae or sticky substances (sodium hypochlorite or equals to) Do not use a Sanitizer to remove calcic substances or other minerals. 1. When the deicing cycle has been completed and the ice has been fallen off from the Assembly Evaporator, turn off the main switch. - Page 22 Sanitizing Procedure 12. Turn off the main switch after 10 minutes. 13. Remove the packing down from the inner vessel sheet downwards, remove the water inside the packing down and insert it back into the vessel sheet. 14. Proceed with the third Sanitizing Procedure in the same manner as that of the second Sanitizing Procedure (repeat paragraphs 11~13).
-
Page 23: Ice Making And Detachment Operations
Ice Making and Detachment Operations ◆ When ice is made in the ice making evaporator, the ice thickness sensor operates to start ice detachment. ◆ Because the ice making evaporator is sloped in dice shape, ice detachment is performed using a high temperature gas and the ice made is collected in the ice box. -
Page 24: Inspection Items
Inspection Items Sensor system 1. Ice full sensor - This ice maker contains the ice box. - When the ice level reaches the limit, the automatic sensor stops the ice making operation. - When ice is removed from the ice maker, the automatic sensor starts the ice making operation so new ice can be made. -
Page 25: Before Calling Service
3. To operate the product again after restoring water performed. block, provide water for operation. ● Manufacture: ● M a n u f a c t u r e : ■Manufacturer : ■Sales Agency : www.icetro.com 78BL/ 3LT 2nd Namdong Insdustrial Complex Namdong-gu Incheon, Korea... -
Page 26: Specifications
Specifications Spce Specification Unit Item IU / WU-0100-AC / ACNF IU / WU-0100-AH / AHNF M a x i m u m I c e M a k i n g Kg /day 50(110.2) (Based on 10 ℃ ) (Lbs/day) Freezing Capability Ice is made after 30 minutes. -
Page 27: Product Warranty
Product Warranty If you lost or did not receive the product warranty card, the warrant period starts after 6months from the manufactured date. [ Free service ] 1. Failures caused by normal operation during the warranty period. [ Charged service ] 1. - Page 28 Online Internet Service http://www.icetrousa.com 3 2 4 0 2 8 7 - 0 2...
