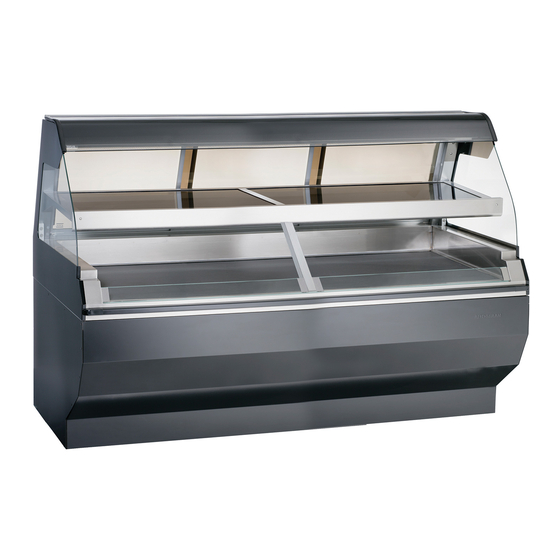

- Page 1 ® OPERATION and CARE MANUAL ED2-96 ED2-48 ED2-72 HEATED DISPLAY CASES SELF-SERVICE REACH-IN & PASS-THRU ED2-48 ED2SYS-48 ED2-48/P ED2-72 ED2-72/PL ED2SYS-72 ED2-72/PR ED2-96 ED2-96/PL ED2SYS-96 ED2-96/PR COOK/HOLD/SERVE SYSTEMS W 1 6 4 N 9 2 2 1 W a t e r S t r e e t P .
- Page 2 U N P A C K I N G & S E T - U P 2. PLACE DIVIDERS and SERVING PANS IN CASE Refer to the pan layout diagrams for different types of pan The Alto-Shaam Heated Display Case has accommodations. A complete pan configuration layout is been thoroughly tested, checked for calibration, located in this manual.
-
Page 3: Safety Alert
OPERATING PROCEDURES continued cleaning agent on a clean cloth and wipe with the grain of the stainless steel. 6. PLACEMENT OF FOOD PROBE If the unit is equipped with the probe accessory, wipe each F. If the display case is supplied with probes, be sure to clean probe and probe tip with a disposable alcohol pad to clean these probes daily. -
Page 4: General Holding G U I D E L I N E S
S A N I TA T I O N G U I D E L I N E S GENERAL HOLDING G U I D E L I N E S Food flavor and aroma are usually so closely related that it is Chefs, cooks and other specialized food service personnel difficult, if not impossible, to separate them. - Page 5 SHEET PAN CONFIGURATIONS • HEATED DISPLAY CASES ED2-96 ED2-72 ED2-48 3 SHEET PAN 4 SHEET PAN 2 SHEET PAN ZONES ZONES ZONES ONE-HALF SIZE PAN FULL-SIZE SHEET PAN ONE-HALF SIZE PAN ONE-THIRD SIZE PAN 48 MODELS 72 MODELS 96 MODELS...
- Page 6 PAN CONFIGURATIONS • HEATED DISPLAY CASES ED2-96 ED2-72 ED2-48 7 PAN ZONES 3 PAN ZONES 5 PAN ZONES ONE-THIRD ONE-HALF SIZE PAN TWO-THIRDS SIZE PAN SIZE PAN FULL-SIZE ONE-THIRD SIZE PAN ONE-HALF ONE-THIRD SIZE PAN ONE-THIRD SIZE PAN SIZE PAN...
- Page 7 ED2-48 Heated Display Case with Carvery ED2SYS-48 #868 • ED2 Series Operation & Care Manual • 6...
- Page 8 ED2-48 Series • Service Parts JUNE ’03 Alto-Shaam Alto-Shaam Part Description Qty. Part No. Part Description Qty. Part No. 14. TRACK, TOP TK-25417 1. CORD, (120/240V), 7’ (2133mm) CD-3291 TRACK, BOTTOM TK-25418 CORD, (230V), 7’ (2133mm) CD-3607 PLUG (COUNTERTOP UNITS, 120/240V...
- Page 9 ED2-72 Series • Service Parts Alto-Shaam JUNE ’03 Alto-Shaam Part Description Qty. Part No. Part Description Qty. Part No. 14. TRACK, TOP TK-25569 1. CORD, (120/240V), 7’ (2133mm) CD-3291 TRACK, BOTTOM TK-25792 CORD, (230V), 7’ (2133mm) CD-3607 PLUG (COUNTERTOP UNITS, 120/240V...
- Page 10 PIN, HINGE, ANCHOR PI-23678 PIN, STRUT PIVOT PI-23679 12. GASKET, 7’ (2134 mm) GS-22547 BUSHING, BEARING, NYLON BU-2827 13. DOOR, GLASS, LEFT HAND (ED2-48/72/96) DR-25422 PLUG, WEAR PG-2899 DOOR, GLASS, MID (ED2-48/72/96) DR-25423 PLUG, 4-WIRE PG-3267 DOOR, GLASS, RIGHT HAND (ED-72/96) DR-25424 21.
- Page 11 Indicator Lights Light Switch Thermostats Cutting Board Bracket Operator/Control side with cutting board Thermostat #868 • ED2 Series Operation & Care Manual • 10...
- Page 12 Thermostat Fuses Thermostat Switch Switch Cutting Board Light Control panel Light Bracket Control panel access Cable wrap: Access by removal of bottom panel #868 • ED2 Series Operation & Care Manual • 11...
- Page 13 Inside the top - lights Bulb sockets Digital temperature sensor, option Glass Manual temperature gauge, option Glass clamp #868 • ED2 Series Operation & Care Manual • 12...
- Page 14 #868 • ED2 Series Operation & Care Manual • 13...
- Page 15 #868 • ED2 Series Operation & Care Manual • 14...
- Page 16 #868 • ED2 Series Operation & Care Manual • 15...
-
Page 17: Limited Warranty
This warranty is 7. Save any packages and packing material for further inspection in lieu of all other warranties expressed or implied and Alto-Shaam, by the carrier. Inc. neither assumes or authorizes any persons to assume for it any other obligation or liability in connection with Alto-Shaam 8.
