Maintenance; Battery Replacement - Acuity Brands EXTL Manual

page 4

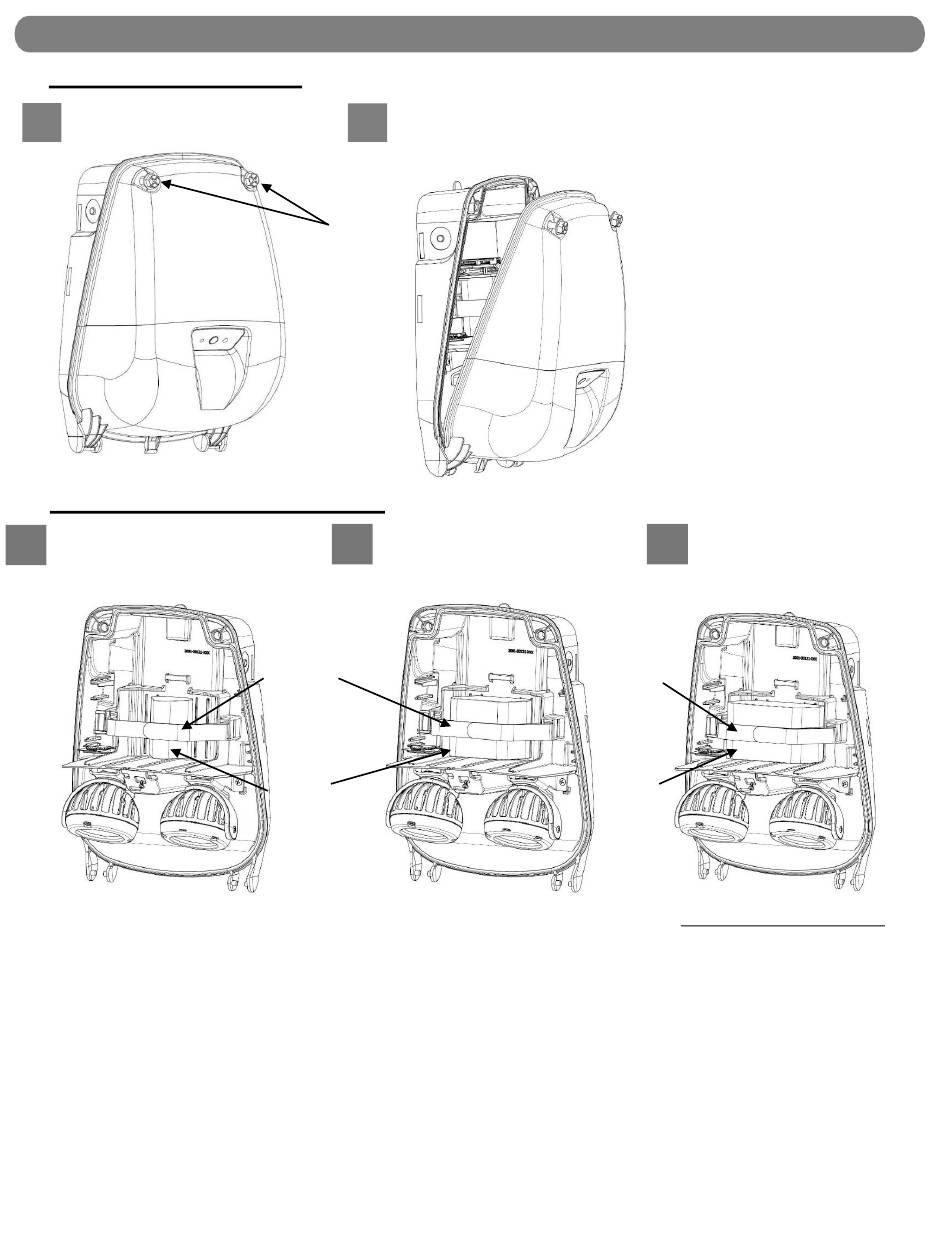

TO OPEN THE UNIT:
Unscrew the two nylon screws on the
1
top of product with a screw driver.

BATTERY REPLACEMENT:

Disconnect battery from charger board.
1
Release battery strap.
Std LiFePO4 Battery

MAINTENANCE

Open the unit and service the unit if
2
necessary. When closing, ensure that wires
are not pinched and proceed to screw the
two nylon screws back into position.
Nylon Screw
Torque = 10 in-lbs
Replace battery, secure the strap
2
snugly, and reconnect to the charger
board.
HO LiFePO4 Battery
Battery
Strap
LiFePO4
Battery
Re-assemble the unit
3
EHO LiFePO4 Battery
Battery
Strap
LiFePO4
Battery
BATTERY HANDLING WARNINGS:
•
Dispose of used batteries promptly.
•
Keep away from children.
•
Do not disassemble.
•
Do not dispose of in fire.
