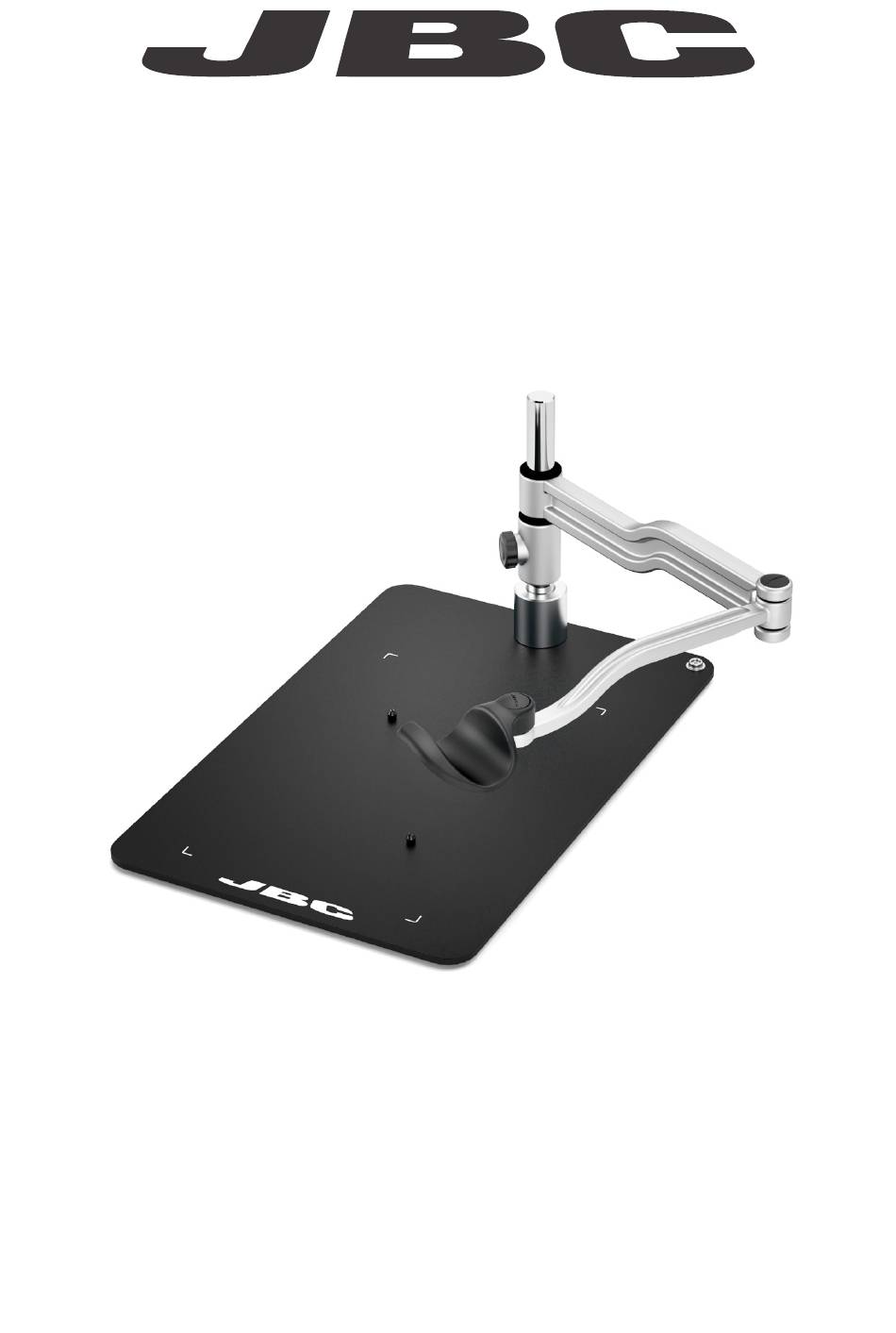

- Page 1 www.jbctools.com INSTRUCTION MANUAL Rework Hand Support for PHSK...
-
Page 2: Packing List
This manual corresponds to the following reference: RHS-A Packing List The following items are included: Hand Height Shaft ....... 1 unit Support Arm ....1 unit Adjustment Flange ..1 unit Ref. HRR-A Ref. 0023991 Base PHS compatible ......1 unit Headless Screw ........ - Page 3 para manuales - color gris 200 mm Features 130 mm 130 mm Shaft 100 mm Hand Height Adjustment Flange Support Arm Headless Screw 80 mm Printed Corner Guides ESD Connector 60 mm Hand Support (connect to ESD Common Grounding Point) Base Positioning Bolds 50 mm...
-
Page 4: Height Adjustment
Height Adjustment According to your work needs the hand support arm allows adjustment for different heights through the vertical axis. Slide the arm to the appropriate height (1) and Knob secure by tightening the knob (2) to guarantee stability. Work Position Adjustment RHN arm allows adjustment for different positions according to your work needs. - Page 5 Preheater Positioning 130 mm 130 mm RHS has been designed to work together with PHS Fit PHS onto the positioning bolts (1) for a proper alignment. The four corner guides (2) help to place 100 mm the heater unit in its position.
- Page 6 Accessories* If a second hand support ist need, Left Hand Support HRL is available. HRL also allows adjustment for different positions. Left Hand Support In case of using both left and right arms, assemble both as shown in the illustration according to the letters on the back of the hand support, to keep the hand supports at the same level.
- Page 7 - color gris 200 mm Compatible JBC Articles* 130 mm 130 mm HRR and HRL can be combined with RWT, RWS or RWB. Assemble first the height adjustment flange (1), then the HRR (2) and afterwards the HRL (3). Assemble 100 mm the second height adjustment flange (4) and finally the RWT (5).
-
Page 8: Maintenance
Maintenance Shaft - Check periodically that RHS is clean, especially the sliding parts and the shaft. Sliding Parts - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Replace any defective damaged parts. - Page 9 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 10 Notes...
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
-
Page 12: Specifications
18.66 x 14.49 x 7.68 / 15.73 lb Complies with CE standards ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
