KWC 802330 Installation And Service Instructions Manual page 56

6
10.151.102.
c
700 mm / 27 9/16"
c =
d =
350 mm / 13 13/16"
d
10.151.003.
10.151.033.
10.151.113.
c
600 mm / 23 5/8"
c =
d =
500 mm / 19 11/16"
d

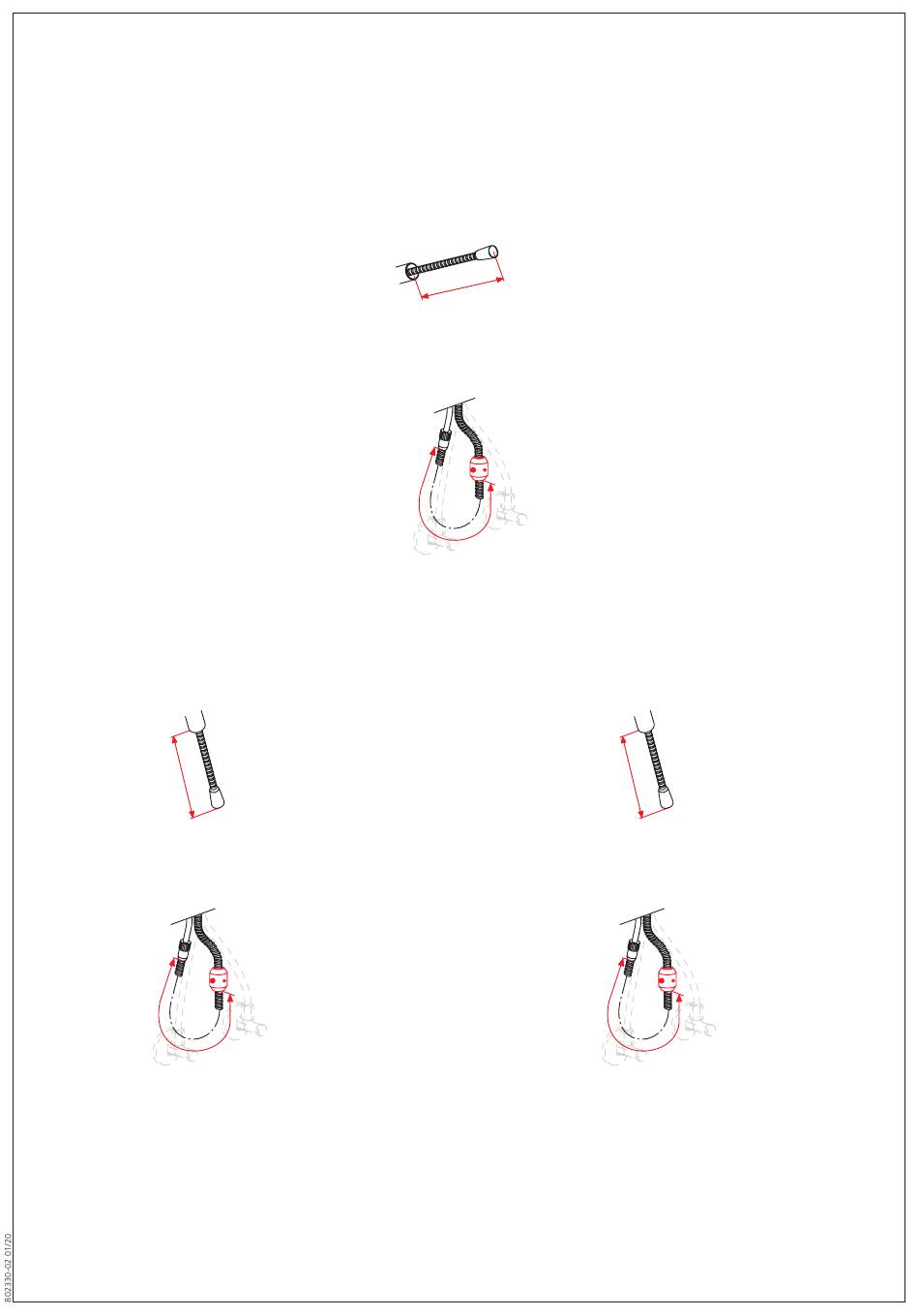

Montage des Schlauchstop's
Montage du stop
Montagio del stop
Montaje del stop
Installation of pull-out stop
10.151.322.000
c
600 mm / 23 5/8"
c =
d =
500 mm / 19 11/16"
d
