READY
WINDSOR HUTCH
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Before assembling your Windsor Hutch, please read through these
instructions carefully, familiarising yourself with the different parts.
Phillips Head
Screwdriver
Please note that you will require a Phillips Head Screwdriver and an Allen wrench.
Customer Supplied
Assembling by Adult

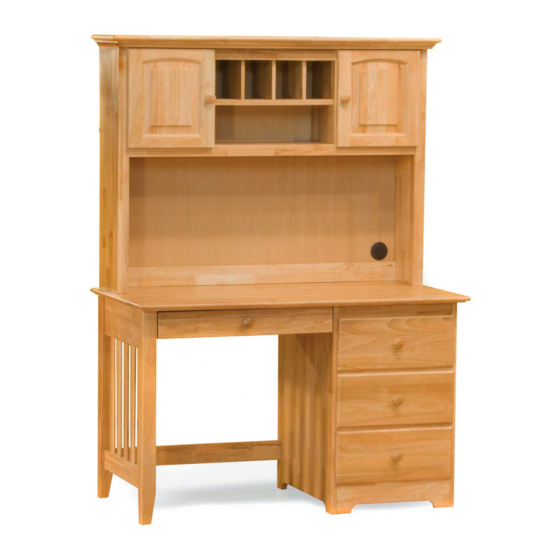

WINDSOR DESK WITH HUTCH
HARDWARE
A
B
C
JCB M6 X 35mm - 8 pcs
WOOD SCREW 8 X 5/8" - 11 pcs
ALLEN WRENCH - 1 pc
E
WOOD SCREW 8 X 3/4" - 8 pcs
D
METAL PLATE - 2 pcs
WINDSOR HUTCH
07152008
Page 1 of 4
Advertisement
Related Manuals for Atlantic Furniture WINDSOR HUTCH
Summary of Contents for Atlantic Furniture WINDSOR HUTCH
- Page 1 READY WINDSOR HUTCH ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Before assembling your Windsor Hutch, please read through these instructions carefully, familiarising yourself with the different parts. Phillips Head Screwdriver Please note that you will require a Phillips Head Screwdriver and an Allen wrench.
- Page 2 Stand the side panel(03&04) upside down ZOOM IN and using JCB (A), tighten with Allen wrench (C). Assembling by Adult ALLEN WRENCH WINDSOR HUTCH 07152008 Page 2 of 4...
- Page 3 WOOD SCREW Phillips Head Screwdriver Customer Supplied Attach the back panel (05) to the Windsor Hutch as shown using 5/8”wood screws (B). Tighten with Phillips head screwdriver. Your Windsor Hutch is now ready to assemble with Desk. WINDSOR HUTCH 07152008...
- Page 4 STEP 3 Lift the Windsor Hutch onto the desk as shown. Assembling by Adult Attach metal plate (D) to the Windsor Hutch and Desk as shown. STEP 4 Using wood screw (E), tighten with Phillips head screwdriver. Assembling by Adult...
