Proline® LEX Series Exit Sign

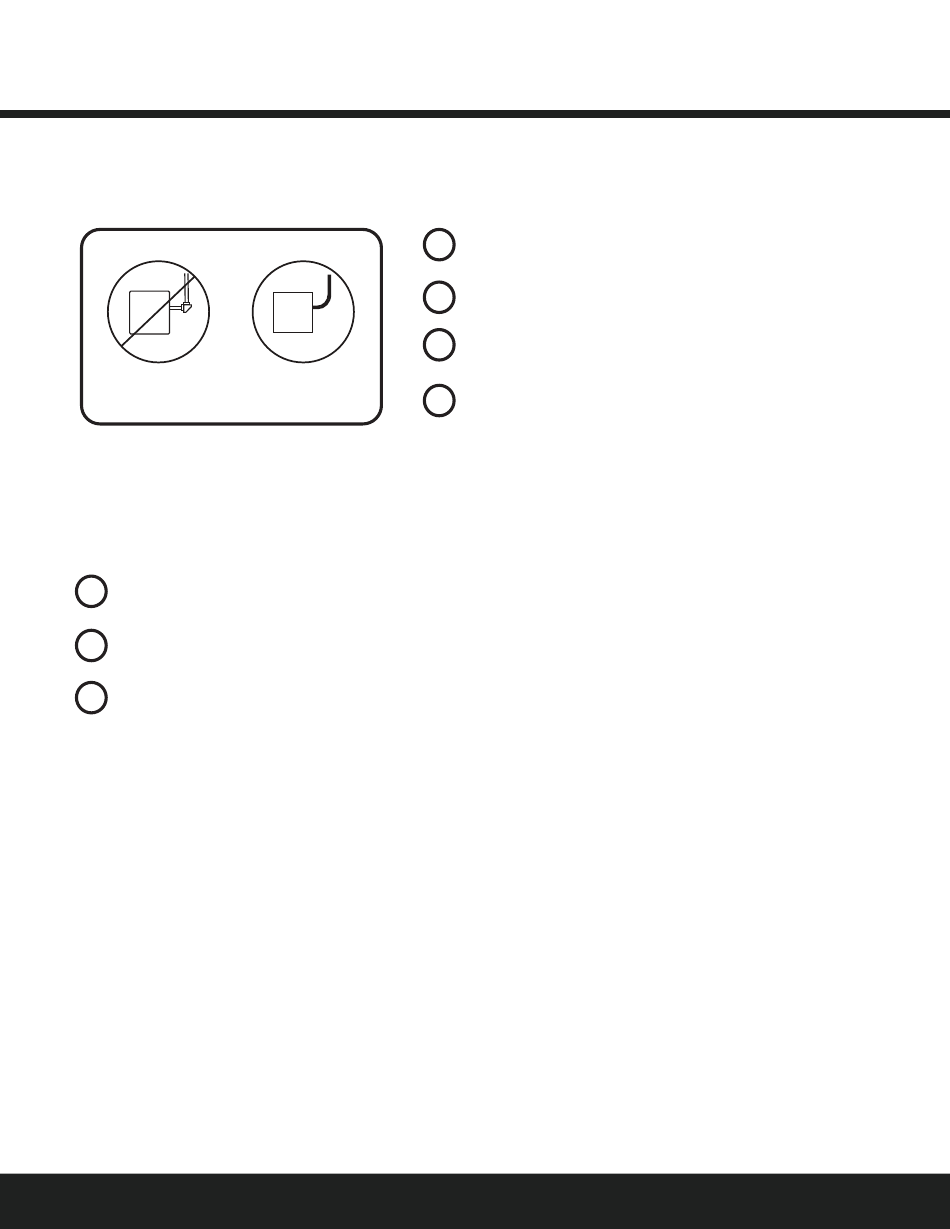

Conduit Entry
FLEXIBLE CONDUIT ONLY!
Operation (Battery Back-up)
1
Apply AC power to the unit. The LED indicator will be RED. Plug battery into the board and the LED indicator
will turn Green.
2
After the battery has been left to charge for 2 hours, test the unit by pushing the switch. The LED indicator
turns OFF and the LED board stays ON.
3
When the switch is released, the LED indicator will turn to GREEN and the LED board remains ON.
1
Drill a 3/4" hole through the desired conduit entry knockout
location on the top or side of the frame of the sign.
2
Route the AC input conduit into housing.
3
All conduit connections must use UL LISTED and SUITABLE
FOR WET LOCATION parts.
4
To finish installation of EXIT sign, reference Wall, Ceiling
or End Mount instructions.
4
Installation Guide
