LEX Series
®

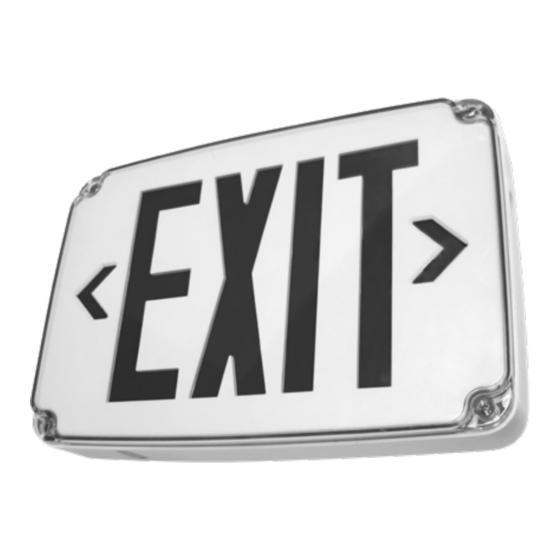

LEX Exit Sign
BEFORE YOU BEGIN
• READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
• RISK OF ELECTRIC SHOCK — NEVER CONNECT TO,
DISCONNECT FROM, OR SERVICE WHILE EQUIPMENT
IS ENERGIZED.
• FAILURE TO FOLLOW THESE INSTRUCTIONS AND
WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY
OR SIGNIFICANT PROPERTY DAMAGE—
For your protection, read and follow these warnings and
instructions carefully before installing or maintaining this
equipment. These instructions do not attempt to cover
all installation and maintenance situations.
• All service shall be performed by qualified service personnel. This product must be installed and maintained in
accordance with the applicable installation codes by a person familiar with the construction operation of the product
and hazards involved.
• This product must be installed in accordance with the applicable installation codes and ordinances.
• Before wiring to power supply, turn off electricity at fuse or circuit breaker.
• Disconnect A.C. power and unplug battery before servicing.
• Consult your local building code for approved wiring installation.
• UL listed for wet location (−20°C to 50°C).
• Do not let power supply cord touch hot surfaces.
• Do not mount near gas or electric heater.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering
by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause unsafe condition.
• Do not use this equipment for other than intended use.
• The AC voltage rating of this equipment is specified on the product label. Do not connect equipment to any
other voltage.
Save These Instructions
Deliver to owner after installation.
IMPORTANT SAFEGUARDS
Installation Guide
IND677
