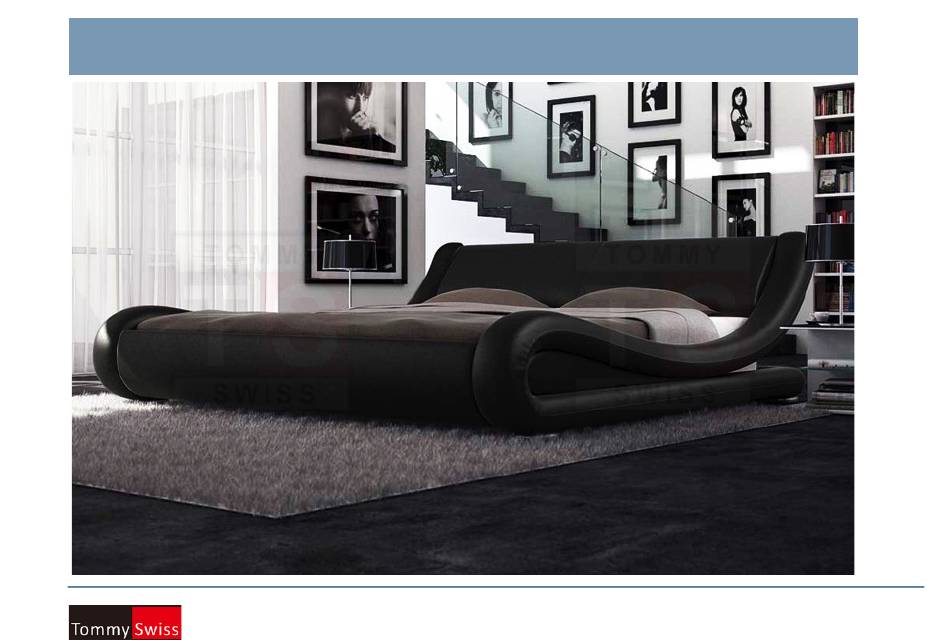

- Page 1 B304 Leonardo Bed – Installation Guide...
-
Page 2: Parts List
Parts list 25 x Bolt A (27 x for King Size) 1 x Bolt B 4 x Bolt C 7 x Bolt D (9 x for King Size) 4 x Bolt E 2 x Bolt F 2 x Nuts (4 x for King Size) - Page 3 Parts list - continued 4 x rectangle corner brackets 2 x middle support beam brackets (4 x in king size) 2 x triangle brackets 2 x support legs (4 x in king size) 4 x corner legs...
- Page 4 Parts list - continued Head Support Piece Lower Head Piece Headboard Footboard...
- Page 5 Attach the side bar and brackets as shown below Attach side metal bar with 5 x Bolt D Attach brackets to end of Join footboard to side panel with Bolts A side panel...
- Page 6 Connect the headboard to the curved side panels Screw in 2 x Bolt C on each side of the Hook the headboard onto both side headboard as shown above panels via the hooks and tighten bolts...
- Page 7 Join the back and attach middle support bar Attach the lower headboard bar to Attach the middle beam Place middle beam on the 2 side panels with bracket shown bracket as shown above bracket and secure tight using 4 x Bolt A using 2 x Bolt A with 1 x Bolt D...
- Page 8 Place the 2 support legs under the middle bar...
- Page 9 Attach the headboard support piece Attach the longer Bolt B at top and the Secure the back panel onto the shorter Bolt A at bottom corresponding holes as shown...
- Page 10 Fix the 4 wooden legs in each corner Attach Bolt E onto the wooden corner Position the wooden leg under each corner legs as shown above with the bolt matching the nut insert Final step: join the wooden slats curving upwards with the plastic clips and click into place...
