Geemarc loophear 160 v2 Quick Start Manual

Small area and
counter loop
Amplifier
www.geemarc.com
UNPACKING THE LOOPHEAR
When unpacking the LoopHEAR
following in the box :
TM
● 1 LoopHEAR main unit
● 1 user guide.
● 1 power adaptor 15V 1,5A DC (optional)
● 1 Loop Antenna (optional)
● 1 hand held HAC receiver (optional)
● 1 external lapel microphone (optional)
INTRODUCTION

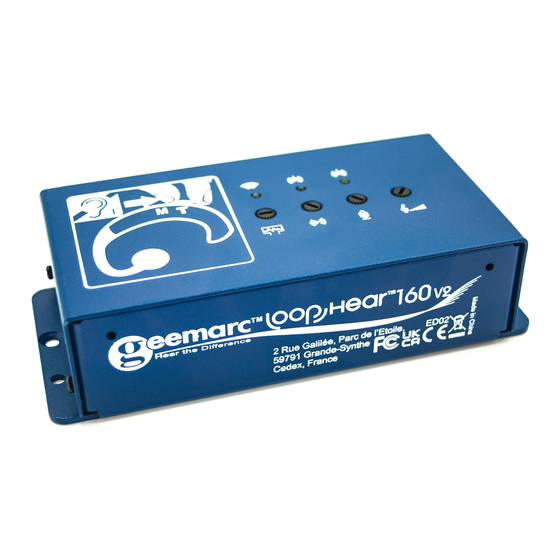

The LH160v2 has been designed as a standalone Induction
Loop system for use inside a vehicle, point of sale desks, banks,
ticket counters or other customer service locations. It is easy
to install and use.
The unit is designed for use with the standard Geemarc multi
turnsloop antenna which can cover an area of about 1m
The functions and features include the following:
1. Headset volume control
2. Headset Output socket
English
TM
160v2, you should find the
● Microphone input for use with standard desktop or lapel
● Input for Aux signal (like from a MP3 player).
● Headset output
● Power input from a car battery via a car cigarette lighter
● Loop output with spring clamps for easy connection.
● Individual level controls for each input and loop output.
● LED indication of Power, Input signals and Loop output
2
.
INSTALLATION & OPERATION
Choose a suitable location, free from magnetic or electrical
interference for installation and use of LH160v2.
(1) Install the LH160v2 onto a panel or wall, ensuring that the
(2) Connect the loop antenna or other compatible loop coil to
(3) Connect the supplied (optional) lapel microphone or any
(4) If required connect Aux input to the Aux jack.
(5) Using a small common blade flat screwdriver, turn the Mic,
(6) Connect the AC power adaptor (optional) to the power input
(7) Apply the input signal (for example speaking into the Mic) to
8. Loop current indicator
9. AUX input indicator
1
3. MIC input socket 10. MIC input indicator
4. AUX input socket 11. Loop current adjustment
5. Power On indicator 12. AUX level adjustment
6. Power input socket 13. MIC level adjustment
7. Loop antenna connector 14. TONE adjustment
Microphones.
socket or a 15V 1.5A DC power adaptor.
current for easy set up.
cables are securely anchored.
the loop output terminals. For optimal performance the
loop antenna should be located about 40 to 60cm in front
of the customer.
Press the tab above the connector terminal and release
after inserting the wire of the loop antenna (or coil). Polarity
is not important.
other compatible Geemarc Microphone to the Mic jack.
Aux, Tone and Field Strength controls fully anti-clockwise
(to their minimum levels).
socket. Check that the Power ON LED illuminates.
Mic and turn the corresponding control clockwise until the
corresponding LED begins to light up.
2
