Summary of Contents for Geemarc Loop Hear LH600

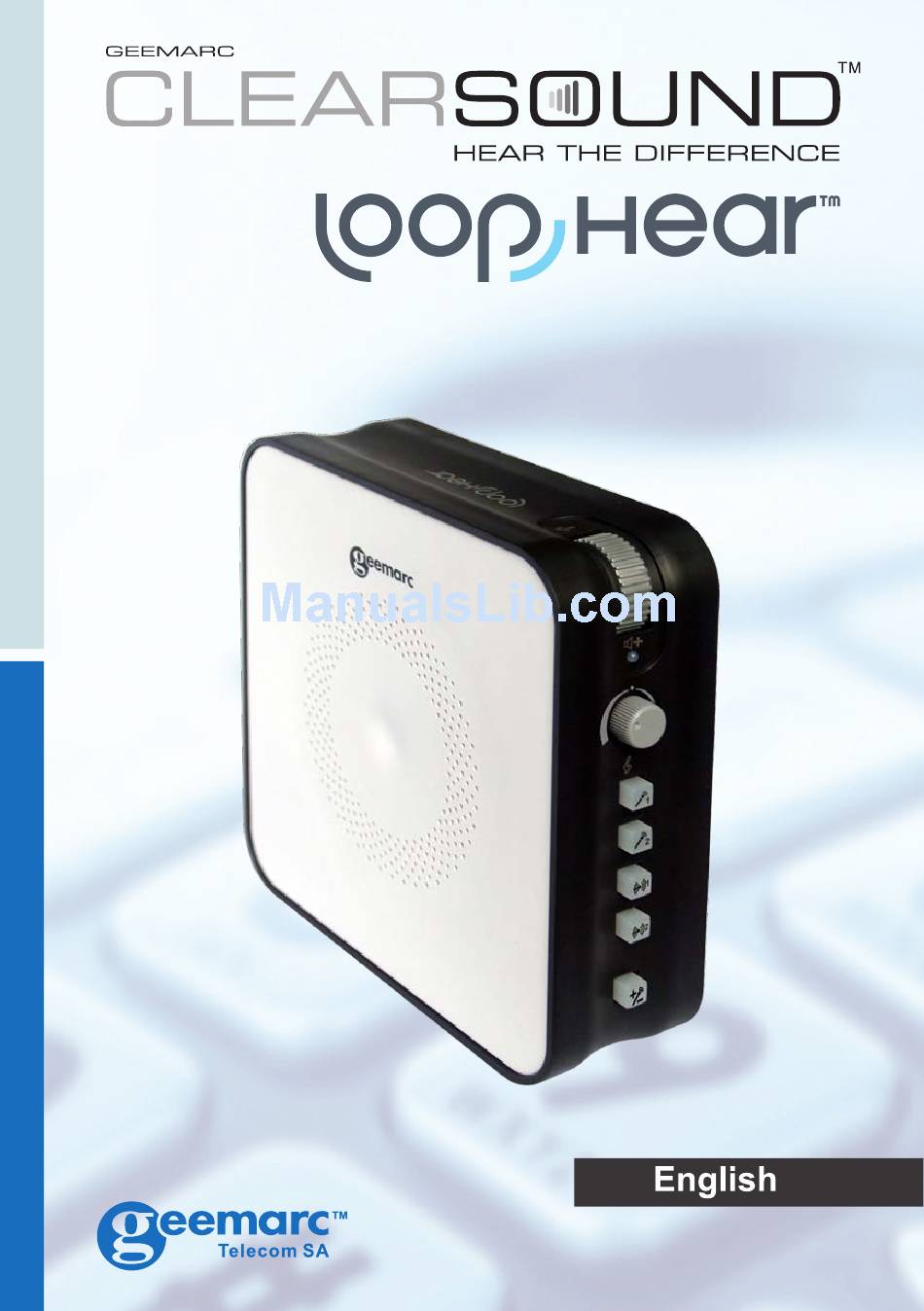

- Page 1 LH600...
-
Page 2: Table Of Contents
CONTENTS CONTENTS INTRODUCTION Unpacking the LH600 DESCRIPTION INSTALLATION Setting Up Wall Mounting USING THE LH600 Turn the LH600 On/Off Volume Control Tone Control Telephone Use Microphone SENSE Switch Line Input Selector Microphone Input Selector TROUBLESHOOTING SAFETY INFORMATION GUARANTEE RECYCLING DIRECTIVES... -
Page 3: Introduction
It is easy to setup and use and fits into any home environment with its sleek and inconspicuous design. The sound quality of the LH600 is unparalleled and will bring great pleasure during its everyday use. -
Page 4: Unpacking The Lh600
INTRODUCTION Unpacking the LH600 When unpacking the LH600 you should find the following in the box: • 1 LH600 Amplifier Unit • 1 Power adaptor/charging Unit. • 1 Telephone line cord • 1 Telephone adaptor • 1 External microphone with 3m extension lead and lapel clip •... -
Page 5: Description
DESCRIPTION General Description Top View... - Page 6 DESCRIPTION Left View Mic input 2 Mic input 1 Audio input 2 Audio input 1 1V DC supply Telephone input Connections for cable loop Right View Volume Power LED Tone MIC 1 MIC 2 Line 1 Line 2 MIC sense...
- Page 7 DESCRIPTION Wall Mount Hanger Wall Mount...
-
Page 8: Installation
INSTALLATION Setting Up Connect Amplifier to the Sound Source Place the amplifier near the sound source and connect the audio leads between the sound source and the amplifier. This direct connection method with leads gives the best results. TV Connection: For a TV with SCART connector audio output: connect the SCART adaptor to the TV set;... -
Page 9: Wall Mounting
AC power adaptor into the mains wall socket. Wall Mounting To wall mount the LH600, drill two holes and insert two screws 40mm apart. Leave about 5 mm of the screw projecting from the wall,. Guide the wall mounting apertures of the wall mount over the screws and slide the wall mount downwards. - Page 10 INSTALLATION Connect the Microphone If for some reason a direct connection is not possible a microphone can be used to pick up the sound source. Or, a microphone can be used simultaneously with line input to pick up background noise e.g. the doorbell. A microphone can also be used for someone to speak directly into the loop system whilst the hearing aid user is listening to a sound source.
-
Page 11: Using The Lh600
USING THE LH600 Turn the LH600 On/Off To turn the unit on, turn the rotary volume control clockwise. The rotary volume is located at the corner position of the unit. The power LED will turn GREEN to indicate the power is on. To turn the unit off, turn the rotary volume control fully counter-clockwise. -
Page 12: Line Input Selector
USING THE LH600 Microphone Input Selector The microphone selection switches allow you to fick between two different microphone sources.. Select MIC1 or MIC2 depending on which source you require. Alternatively, you can use both input sources at the same time,... -
Page 13: Troubleshooting
• Check all connections are secure (microphone, audio sources, loop cable, power cable) • Ensure the LH600 is turned on (check the Power LED is on) • Ensure hearing aid is switched to ‘T’ The sound produced is very quiet •... -
Page 14: Safety Information
General Do not open the unit. Contact the helpline for all repairs. Cleaning Clean the LH600 with a soft cloth. Never use polish or cleaning agents - they could damage the finish or the electronics inside. Environmental Do not expose to direct sunlight. -
Page 15: Guarantee
During this time, all repairs or replacements (at our discretion) are free of charge. Should you experience a problem then contact our help line or visit our website at www.geemarc.com. The guarantee does not cover accidents, negligence or breakages to any parts. - Page 16 GUARANTEE Electrical connection: The apparatus is designed to operate from a 230V 50Hz supply only. (Classified as ‘hazardous voltage’ according to EN60950 standard).
-
Page 17: Recycling Directives
- Or, hand the old product to the retailer. If you purchase a new one, they should accept it. Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone 01707 384438 Or fax 01707 832529... - Page 18 Welwyn Garden City Germany 59791 GRANDE SYNTHE CEDEX Hertfordshire, AL7 1SB Tel: +49(0)228/ 74 87 09 0 TEL. SERVICE APRES VENTE: For product support: Fax: +49(0)228/ 74 87 09 20 03 28 58 75 99 01707 384438 www.geemarc.com www.geemarc.com www.geemarc.com...
