USER MANUAL & INSTALLATION GUIDE
FR3
FQ3

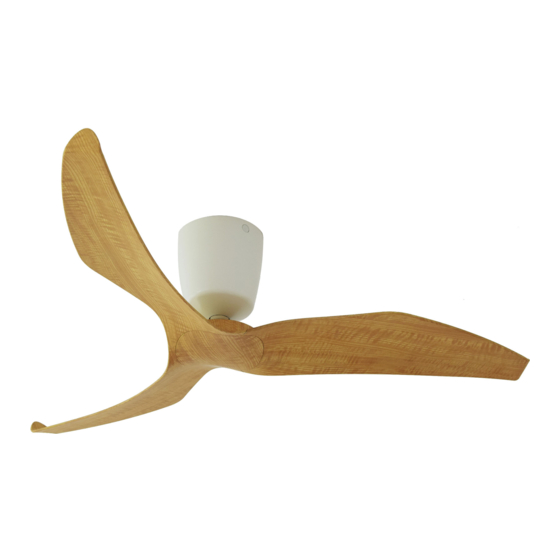

FR3 & FQ3 CEILING FAN
Available in: 43"/1070mm 50"/1270mm 60"/1524mm - FR3 model only
LED light kit and ceiling extension kit are optional for all Aeratron
models
TM
ATTENTION ELECTRICIANS
An isolation switch per fan is highly recommended
WARNING: If unusual oscilating movement is observed, immediately
stop using the ceiling fan and contact the national distributor/retailer
Advertisement
Table of Contents
Related Manuals for AerAtron FR3
Summary of Contents for AerAtron FR3
- Page 1 USER MANUAL & INSTALLATION GUIDE FR3 & FQ3 CEILING FAN Available in: 43”/1070mm 50”/1270mm 60”/1524mm - FR3 model only LED light kit and ceiling extension kit are optional for all Aeratron models ATTENTION ELECTRICIANS An isolation switch per fan is highly recommended...
-
Page 2: Important Information
Important information - Please read before attempting installation This fan must be installed by a licensed and qualified electrician according to local authority regulations. *DIY installation allowed in some countries* 1. Please read these instructions carefully, be mindful of all warnings and safety information shown throughout this manual. -
Page 3: Table Of Contents
If the fan rotates but does not create much airflow.............. 13 General Information........................14 Normal Wear and Tear ......................14 Ceiling Fan Warranty......................... 14 Transfer of Warranty ......................15 The following is NOT covered by warranty................15 Aeratron ceiling fan warranty details..................16 IMPORTANT assistance before leaving the site. -
Page 4: Unpacking Your Fan
Unpacking your fan Unpack your fan and examine all parts, you should have the following: CEILING SPACER x 2 TIMBER SCREWS X 2 HANGER BRACKET MACHINE SCREWS X 2 WASHER X 2 WASHER X 2 HUB SCREWS X 10 MOTOR ASSEMBLY PIVOT LOCK X1 CONTROL RECEIVER AAA BATTERIES x2... -
Page 5: Installing Your Fan
Mounting Hanger Bracket to Ceiling STEP 1 supply at the main power box. Disconnect power by removing fuse or turning off circuit breaker. OPTION B: OPTION A: Embedded Ceiling Joist hanger provided. Ensure ceiling joists are sound and of adequate size and strength to support a 32kg (70lbs) load. If a between two beams.Proper care must be and stronger screws. -
Page 6: Step 3 Inserting Fan Motor Into Hanger Bracket
Inserting an otor into Hanger Bracket STEP 3 Ensure that lug on Hanger Bracket is engaged in slot in suspension Ball Installing Receiver into Hanger Bracket STEP 4 Slide Remote Control Receiver into Hanger Bracket from the opposite side of the Terminal block in the orientation as shown below. -
Page 7: Step 5 Connecting Receiver
Connecting the Receiver STEP 5 Learn Switch Switch to “O” to pair receiver with the Remote control and Switch to “X” to lock the pairing code with the Remote control 2PIN LED driver connection (optional for LED light) 3PIN 3PIN Mains Power 3PIN Receiver... -
Page 8: Step 6 Pairing The Remote Control
Pairing the Remote Control STEP 6 The remote control is pre-programmed No pairing with the receiver required Pairing a Single Fan per remote control: LEARN MODE NOTE: Blades must be attached prior to testing the fan 1. On Receiver: Verify that the “Learn” switch is in the “O” position 2. -
Page 9: Step 7 Attaching The Fan Motor Housing
Attaching the Fan Motor Housing STEP 7 CLICK! Align the 3 tabs with the 3 holes on the Housing and move upwards. Push tabs inwards slightly before sliding upwards Assembling the Fan Blades STEP 8 avoid damaging the fan/surface screws for each Blade. Place the Hub Upper onto a clean working area. -
Page 10: Step 9 Attaching The Fan Blades
Assembling the Fan Blades cont. STEP Light Hub Lower (OPTIONAL) Fasten the the Hub Lower from the top side Lower) into the recess. With care, turn the fan using the 3 Hub Screws. over. Attaching the Fan Blades STEP 9 Pivot Connector Silicone Ring Lock Screw... -
Page 11: Option Aled Light Kit
LED Light Kit OPTION A Line up the 2 pins on the LED light with the 2 Holes in the LED LIGHT Safety clip is engaged. Re-check the correct assembly by gently pulling on the Ceiling Extension Kit OPTION B Suitable for Raked Ceiling up to 17 “B”... -
Page 12: Option C Raked Ceiling Kit
Raked Ceiling Kit OPTION C “a” “B” “a” Angle “C” Clearance “B” Extension Rod Length Accessories Required 15° - 17° 200mm min. 115mm Rod (4 Included 17/32” 17° - 33° 200mm min. 600mm Rod (23 Not Included 5/8” 33° - 40° 900mm Rod (35 Not Included 7/16”... -
Page 13: Technical Specification
Dimensions for Model: FR3-43” & FQ3-43” 43” 1070mm / 50” 1260mm / 60” 1524mm FR3-50” & FQ3-50” FR3-60” Fan Weight: FR3-43” = 4.7kg (10.4lbs) FR3-50” = 5.1kg (11.2lbs) FR3-60” = 5.3kg (11.7lbs) FQ3-43” = 4.7kg (10.4lbs) FQ3-50” = 4.9kg (10.8lbs) Colour Options:... -
Page 14: Care And Cleaning
Care and Cleaning Regular cleaning of the Aeratron Ceiling fan blades and fan motor housing is the only maintenance needed. Due to the self-balancing design, a large build up of dust on blades may create an imbalance in extreme cases only, causing the blades to wobble during use. -
Page 15: General Information
Labour and product delivery costs are borne by Aeratron Pty Ltd or the retailer during this 3 year period. The cost of obtaining or using special access equipment (scissor lifts, scaffolding etc.) is specifically excluded, and it is the responsibility of the owner to provide such equipment and have it safely installed and operated. -
Page 16: Transfer Of Warranty
- If the product is found to be free of defects or the product is not functioning properly as a result of faulty installation or lack of maintenance then Aeratron or its service agent reserve the right to charge a service fee to rectify the reported problem. -
Page 17: Aeratron Ceiling Fan Warranty Details
Please Note: When calling for warranty you will require the following information; date of purchase; model and colour of the fan. The installing electrician’s details may also be required. Aeratron ceiling fan warranty details Please File with your Purchase Receipt... - Page 18 INSPIRED BY THE EXPERTS If this shape looks familiar - that’s because it is. Your Aeratron fan was painstakingly developed to mimic nature’s true masters of controlling air. It’s a proven design that we are confident will work effeciently in your home for years to come.
