Epcom TD-9584S2 Quick Start Manual

Network Camera
Quick Start Guide
■ Please read this instruction carefully before operating the
unit and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

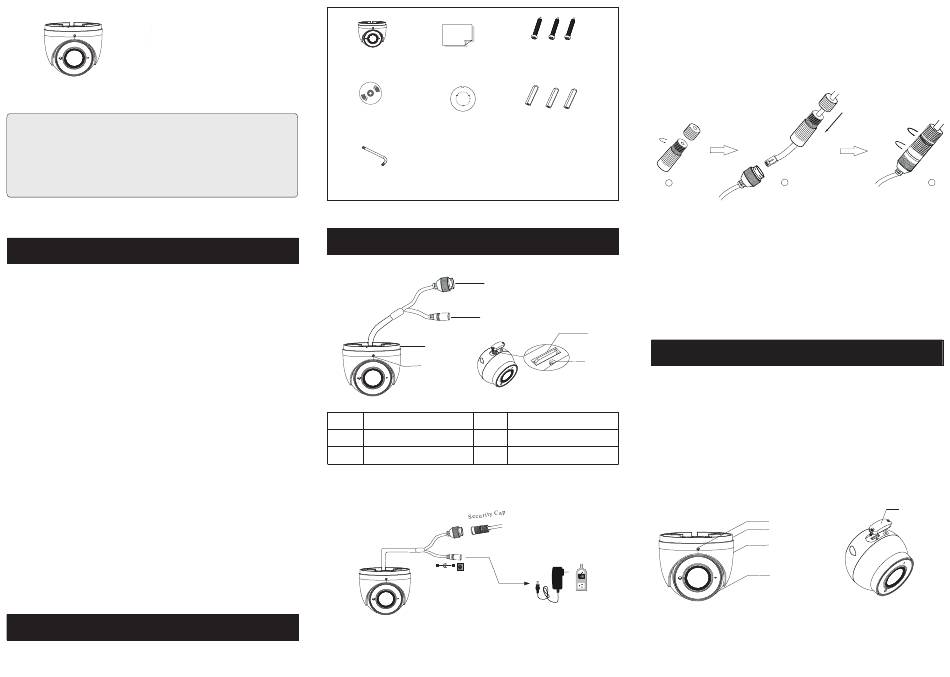

Package
Camera Quick start guide
CD
Drill template
Screwdriver
3
Overview
1
2
3
4
1
Network connector
4
Power connector
2
5
3
Mounting base 6
Note: Micro SD card slot and reset are optional. If no such interfaces, please
skip the above-mentioned(5, 6) instructions.
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera that supports PoE power supply,
DC12V power supply is not required.
► Connecting Network Cable
Tapping screw × 3
×3
Plastic plug
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
5
4
Installation
6
Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera.
①
Loosen the fixed screw to disassemble the camera.
Fixed screw
②
Remove the cover from the dome to insert the SD card. Then,
Micro SD card slot*
install the cover back to the dome and fix it firmly with the screws.
Reset*
Note that the cover should not be installed unevenly. (Please skip
this step if your camera has no micro SD card slot).
③
Attach the drill template to the place where you want to fix the camera
and then d rill the screw holes and the cable hole on the wall according to
the drill template.
2 3
Cover
Fixed Screw
Mounting Base
Enclosure
Dome
