1
Pick a Spot for Your Radio
Pick a Spot for Your Radio
Install the Dash or Vent Mount
Installing the Vent Mount:
You can use either the Dash Mount or the Vent Mount for your Stratus 6, depending upon your vehicle and
1
Locate a suitable vent in your vehicle which is strong enough to
the location where you want to place your radio.
hold the Stratus 6 and the PowerConnect Vehicle Dock. (Options
4 or 5.)
CAUTION! Make sure your radio isn't in a place where it could interfere with driver visibility or safe deployment
of the airbags.
2
If the vent louvers are recessed, you'll have to use the
extended vent clamps. The Vent Mount is assembled with the
Installing the Dash Mount:
short vent clamps, so you will have to remove the short clamps
and install the extended clamps as shown below.
CAUTION: The adhesive used on the Dash Mount may be difficult to
remove. Do not install this mount on leather surfaces (contact your vehicle
Remove End Cap
Dash
dealer if you are unsure about your dash surface), and make sure the air
temperature is at least 60ûF (15ûC) during installation. If it's not at least
Mount
60ûF, turn on the heater in your vehicle to bring the temperature up to 60ûF.
1
Locate a flat surface for the Dash Mount. (Options 1, 2, or 3.)
Make sure there is
Option 1
I
II
ample room for the
dock and radio when
installed.
Slide Extended Vent Clamps In
2
Set the orientation
of the mount before
adhering it. Loosen
the knob and adjust
the adhesive foot for the location you
selected:
• Option 1 & Option 3 should be oriented as I.
• Option 2 should be oriented as II.
3
Attach the Vent Mount to the PowerConnect Vehicle Dock
Option 2
3
Clean the surface with the
using the provided screws.
alcohol preparation pad, and let
it dry thoroughly.
4
Attach the Dash Mount to the
PowerConnect Vehicle Dock
using the provided screws.
5
Peel off the adhesive liner.
Position, press, and hold the Dash
Mount in place for 30 seconds.
4
Push the Vent Mount onto the vehicle vent as shown (1) until
IMPORTANT! Allow the Dash Mount
hooked on the rear of the vent louver (2).
adhesive to cure (dry) for a minimum of
Option 3
5
Rest the foot against the bottom of the vent (2). If necessary,
2-4 hours before using the mount. The
adjust the tilt of the Vent Mount by repositioning the foot to a
best adhesion occurs after 24 hours.
different tilt adjustment hole (3).
6
The dock mounting plate can be tilted in different directions.
Adjust as necessary for your particular vehicle. When the
orientation is correct, tighten the knob.
Knob
Adhesive Foot
Dock Mounting
PUSH
Plate
AUDIO
ANT
2
Install the Magnetic Mount Antenna
(continued)
Mount the Magnetic Mount Antenna
Extended Vent Clamps
Choose the best location for the antenna considering your vehicle type. Refer to the antenna
placement tips and cautions in the User Guide beginning on page 23.
• Sedan or Coupe: We recommend mounting the antenna above either the front windshield or
the back window.
Short Vent
• Pickup Truck: We recommend mounting the antenna above the front windshield.
Clamps
• Convertible: We recommend mounting the antenna at the leading edge of the trunk.
• SUV: We recommend mounting the antenna at the rear of the roof.
CAUTION! STOP and read the more specific instructions in the User Guide for all
Slide Short Vent Clamps Out
types of vehicles — or get someone who knows vehicles to help — if you don't
understand what to do. You might accidentally do damage to your vehicle.
Vent Mount
Magnetic Mount Antenna
Attach the Rubber Tail to the antenna and press
Option 4
(Upside-Down)
the antenna cable into the Rubber Tail. Use the
Rubber Tail to position the antenna the correct
distance from the edge of the roof or trunk lid.
Clean the surface of the selected mounting
Protective
location using the alcohol preparation pad and
Replace End Cap
Material
Strain
let it dry thoroughly. Peel the protective material
Relief
from the adhesive strips and press the Rubber
Tail firmly into place on the vehicle for 30
Rubber
seconds. At room temperature (68° F), maximum
Antenna
Tail
adhesion usually occurs within 72 hours. During
Antenna Cable
this period, avoid car washes and other contact
with the antenna and the Rubber Tail.
Option 5
Feed the antenna wire under the rubber molding around the front or rear
windshield, and into the seal around the trunk or door. For a convertible, the cable
can be routed directly into the trunk.
TIP! Use a tool like a blunt plastic putty knife, a credit card, a plastic knife, or a
similar blunt tool to help hide wires along the windshield trim.
Hide the Magnetic Mount Antenna Cable Inside the Vehicle
The best place to hide your antenna cable depends on your type of vehicle.
When the antenna is mounted at the rear of the vehicle, it's usually easiest to run
the cable from the rear to the front toward the radio by routing the cable along
the interior trim where it meets the carpet, gently pushing it behind the edges of
the trim. Bring the cable out from the trim and route it under the carpet toward
the dashboard.
When the antenna is mounted at the front of the vehicle, bring the cable into the
rubber weather stripping around the door to the bottom of the door opening.
Bring the cable out of the weather stripping and route it
under the carpet toward the dashboard.
1
2
3
Coil any excess cable in a hidden location, such as under
the carpet, keeping it away from any vehicle pedals or
Dash
Dash
Dash
controls. Secure the excess cable with wire ties.
HOOKED
Vent
Plug the antenna into the silver ANT connection on the
right side of the dock.
Vent
AUDIO
ANT
Vent
TIP! Avoid damaging or compromising the window,
TILT
FOOT
ADJUSTMENT
door, and trunk seals.
Louver
HOLES
TIP! For more help, refer to the detailed antenna cable
routing instructions for your type of vehicle, in the User Guide beginning on page 26.
3
Connect the Audio to Your Vehicle's Stereo
Decide How to Connect
You will listen to the Stratus 6 through your vehicle's stereo system or FM radio. First, the Stratus 6 must be receiving the
SIRIUS signal. Ensure your vehicle is outside with the antenna having a clear view of the sky. Your audio connection options are:
• Best: Use the Aux In Cable if your vehicle's stereo system has
Audio Quality
GOOD
an auxiliary input connection. Plug one end of the cable into the
green AUDIO connector on the PowerConnect Vehicle Dock and
FM Direct Adapter (FMDA)
the other end into the vehicle stereo system's auxiliary input jack.
Set the stereo system to play from the auxiliary input source.
Aux In Cable
Cassette Adapter
PowerConnect
AUDIO
ANT
• Better: Use a Cassette Adapter if your vehicle has a built-in cassette
player. Cassette Adapters are sold separately. Plug the Cassette Adapter
into the green AUDIO connector on the PowerConnect Vehicle Dock. Insert
AUDIO
ANT
the Cassette Adapter into the vehicle's cassette deck. Set the stereo
system to play from the cassette source.
• Good: Use the PowerConnect feature in the Stratus 6. PowerConnect
plays the audio through your vehicle's FM radio. When you have finished step 4 (below), you'll first need to
find an available FM channel in your area, and then you need to ensure that the Stratus 6 and your vehicle's
FM radio are tuned to the same available FM channel. (Step 5)
• Best: Use an FM Direct Adapter (FMDA) if none of the above three audio connection options works in your
vehicle. The FMDA needs to be installed by a professional installer and directly connects the Stratus 6 to your
vehicle's FM radio.
TIP! Refer to your vehicle's owners manual to find the location of the auxiliary input jack, or consult the vehicle
dealer. To learn more about purchasing a Cassette Adapter or FMDA, check with the retailer where you bought your
Stratus 6 or go to sirius.com/accessories.
4
Finish the Installation and Power On
Connect the PowerConnect Power Adapter
Insert the PowerConnect Power Adapter into your vehicle's cigarette lighter or power adapter
socket. Then plug it into the red PWR connector on the left side of the dock.
Place the Radio in the Dock
Insert your Stratus 6 into the dock,
sel
menu
aligning the radio against the rear of
jump
the dock so that the rails on the dock
fit into the mounting slots in the back
AUDIO
ANT
of the radio.
Press the Power button to turn it On.
5
PowerConnect
If you have connected the audio in step 3 using the Aux In Cable or Cassette Adapter, continue with step 6.
Tune the Stratus 6 and Vehicle FM Radio to the Same FM Channel
BETTER
BEST
1
Find an Available FM Channel in Your Area
An available FM channel is one that's not being used by an FM radio station in your area. When you
tune your FM radio to an available channel, you should only hear static or silence – not talk or music.
We recommend one of the following methods to find an available FM channel:
a. Use the SIRIUS | XM FM Channel Finder at www.sirius.com/fmchannel. Go to the website and
enter your zip code. The Channel Finder will suggest a list of available FM channels in your area.
For convenience, write down or print out the list.
OR
b. Manually tune through your local FM channels on your vehicle's FM radio. Locate and create a list of
channels that aren't being used by any FM radio station. Write down the list. Once you have created
your list of available FM channels, you will need to find the one that provides the best match for the
Stratus 6.
TIP! You'll need to use the 'Manual' tune function on your vehicle's FM radio to tune through every FM channel
one-by-one. Turn on your vehicle's FM radio. Start at 88.1 and use the 'Manual' tune function on your vehicle's FM radio
to tune through each FM channel one-by-one (88.1 followed by 88.3 etc.) to locate channels that aren't being used by
a local FM radio station. Write down each FM channel that has only static or silence on it, until you reach 107.9.
2 Tune your Vehicle's FM Radio
a Pick the first FM channel on your list.
b Turn on your vehicle's FM radio (if you have not already done so) and tune it to this FM channel.
96. 3
menu
sel
jump
MATCH FM CHANNELS
3 Set Your Stratus 6 to Transmit on the Same FM Channel
a Press and hold menu until the menu options are displayed.
b Press
to scroll to and highlight FM Settings and press the Select button.
c If FM Channels is not highlighted, press
to highlight FM Channels. Press the Select button.
d Press
to scroll to and highlight the storage location FM2. Press the Select button.
PWR
FM
e Tune to the FM channel you found in step 1. Press
and
to tune in
steps of .2, i.e., 99.3 to 99.5. Press
and
to tune in steps of 1, i.e.,
F M C h a n n e l s
96.3 FM
99.3 to 100.3. Press the Select button to select the FM channel.
f The FM channel you selected will be confirmed on the display screen.
The Stratus 6 will tune to the FM channel.
F M C h a n n e l s
g You should hear SIRIUS through your vehicle's radio when Stratus 6 is
>FM2 96.3
tuned to channel 184. If you are satisfied with the sound quality, you're
FM3 Empty
done.
PowerConnect
(continued)
4
You May Need to Try Other FM Channels on Your List
If the chosen FM channel doesn't work well for you, work down the list of FM channels until you find
one that allows you to hear SIRIUS clearly. Each time, you will need to tune your vehicle's FM radio
and the Stratus 6 to the same FM channel.
TIP! You may find an FM channel with static or silence that does not work with the Stratus 6. It is possible that
some type of inaudible interference is present that prevents reception of the Stratus 6 broadcast. Your only
options are to use another FM channel or a different audio connection method.
6
Activate
Activate Your Service
Before you can enjoy Commercial-Free Music, Plus Sports, News, Talk & Entertainment, you need to activate
your Stratus 6.
1
Make sure your Stratus 6 is properly installed, turned on, and receiving the SIRIUS signal so that
you can hear the audio on channel 184.
2
Make a note of your SIRIUS Radio ID. You can find it:
TIP! If the signal reception
• On channel 0 (zero)
is low, check to see if the
antenna's view of the sky is
• On a label on the bottom of the gift box
blocked by a tree, a
• On the label on the back of your Stratus 6
building, a bridge, or by
anything on the vehicle
3
Activate your service:
roof such as a roof rack or
luggage container, etc.
• Online: Go to www.sirius.com and click on "Install and
Adjust until you are
Activate"
receiving a good signal.
To check the signal, press
OR
and hold menu, press
to
• By phone: Call 1-888-539-SIRIUS (1-888-539-7474)
scroll to and highlight
Signal. Press the Select
4
When your service is activated, your Stratus 6 will display an
button to display the
alert message. To continue, press any button. Thereafter, if you
Signal screen.
press
or
, you can scroll and tune other channels. Activation
S i g n a l
usually takes less than 5 minutes, but sometimes may take
SAT -
+
longer. We recommend that your radio remain on until activated.
TER -
+

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stratus 6 SDSV6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sirius Satellite Radio Stratus 6 SDSV6

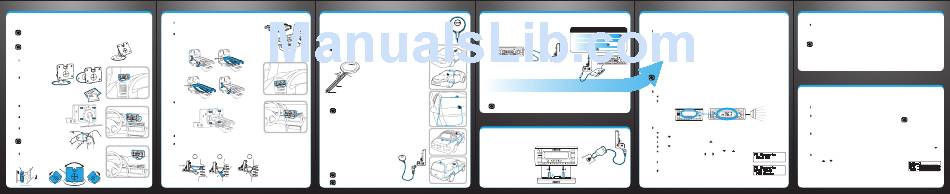

  • Page 1 Pick a Spot for Your Radio Pick a Spot for Your Radio (continued) Install the Dash or Vent Mount Installing the Vent Mount: You can use either the Dash Mount or the Vent Mount for your Stratus 6, depending upon your vehicle and Locate a suitable vent in your vehicle which is strong enough to the location where you want to place your radio.
  • Page 2 What’s in the Box? menu jump Stratus 6 Radio Aux In Cable PowerConnect Vehicle Dock Dash Mount Vent Mount and Extended Vent Clamps PowerConnect Magnetic Mount Antenna & Antenna & Dash Mount Power Adapter Rubber Tail Alcohol Preparation Pads sirius.com SIRIUS XM Radio Inc.

This manual is also suitable for:

Stratus 6 sdsv6qsg 092109aStratus 6
