  • Page 1 DSX 80...

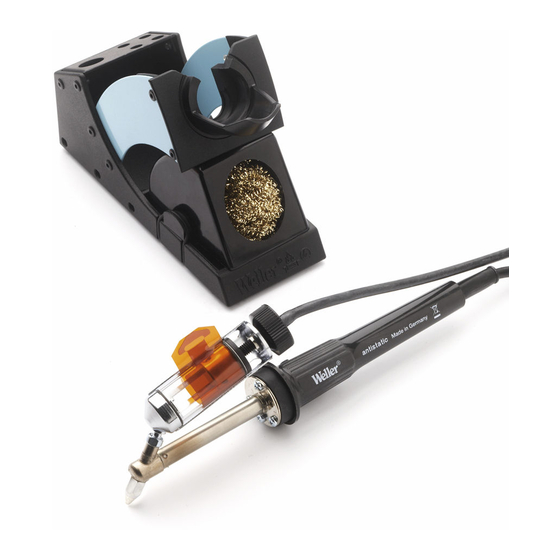

  • Page 2 5. Work must not be performed on parts that are powered. 2. Connection The Weller DSX 80 antistatic can be connected to all electronically regulated desoldering equipment with 80 W connectors. To avoid the connection to any less powerful controlunits, the DS 80 is equipped with a special 7 pin plug.
  • Page 3 After twisting the desoldering iron by 120°, fasten the flange-screws. Now the desoldering iron is ready for use with the left hand. Cleaning, maintenance DSX 80 To achieve good desoldering results it is important to clean the desoldering head regularly. This includes emptying the solder collecting container, replacing the glass tube filter, as well as checking the seals.
  • Page 4 Cleaning tool Cleaning tool T005 13 500 99 1. Suction tube ø 0,9 for DX 112, DX 113, DX 116 2. ø 0,5 for DX 110, DX 111, DX 115, DX 118 3. ø 0,4 for DX 114, DX 117 Recommendation for maintenance every 50 desolder cycles Nozzle exchange...
  • Page 5 Suction Nozzles DX- Serie Order-No. T005 13 140 00 T005 13 141 00 T005 13 142 00 T005 13 143 00 T005 13 150 00 T005 13 144 00 T005 13 145 00 T005 13 146 00 T005 13 147 00 T005 13 148 00 T005 13 151 00 T005 13 152 00...
  • Page 7 Exploded Drawing Discover other welders on our website.
