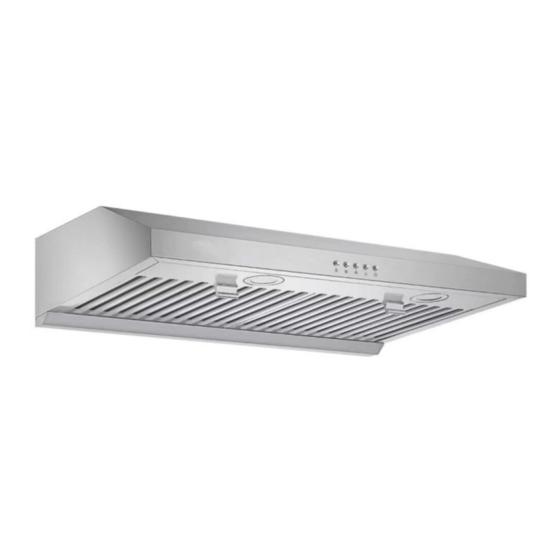

- Page 1 Akron User Manual VRH-AKRON-30SS...
-
Page 2: Table Of Contents
Table of Contents Important Safety Notice Specifications Main parts and opening size Tools needed and parts supplied Venting Requirements Installation Procedures Operations & Wiring Diagram Trouble shooting Wiring diagram and specifications Use and care information Maintenance Cleaning and Replacing LED light Warranty Disclaimer Contact Us... -
Page 3: Important Safety Notice
Important Safety Notice READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE • The installation in this manual is intended for qualifed installers, service technicians or persons with similar qualifed background. Installation and electrical wiring must be done by qualifed professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 • Use only metal ductwork and this unit MUST be grounded. • Suficient air is needed for proper combustion and exhausting of gases through the duct to prevent back drafting. • When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden utilities.
-
Page 5: Specifications
• DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result. • Use an extinguisher ONLY if: • You know you have a Class A, B, C extinguisher,and you already know how to operate it. •... -
Page 6: Main Parts And Opening Size
Main Parts Name Hood Body Baf e lter Opening size 6"... -
Page 7: Tools Needed And Parts Supplied
Tools Needed Parts Supplied Range Hood×1 Baffe Filter×2 A. 5pcs-ST5x40 screws B. 5pcs-Wall anchors C. 4pcs-ST5x16 screws... -
Page 8: Venting Requirements
Venting Requirements Vent system must terminate to the outside (roof or side wall). DO NOT terminate the vent system in an attic or other enclosed area. DO NOT use 4” (10.2 cm) laundry-type wall caps. Use metal/aluminum vent only. Rigid metal/aluminum vent is recommended. DO NOT use plastic vent. -
Page 9: Installation Procedures
Installation Procedures Safety Warning: Hood may have very sharp edges. Please wear protective gloves if it is necessary to remove any parts from installing, c leaning or servicing. Installation Height 3. The distance between the stove surface and the underside of the range hood must be in the range of 26"-30"... -
Page 10: Operations & Wiring Diagram
Operations & Wiring Diagram Akron （3 Speed push button) Press to turn on /off the light. Press to select the high speed. Press to select the medium speed. Press to select the low speed. Press to select on/off. -
Page 11: Trouble Shooting
Trouble shooting If the range hood or LED light does not work after installation • Check if the range hood has been plugged in, make sure that all power has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 12: Wiring Diagram And Specifications
Wiring Diagram Black White Green Blue(N) Black(H) Grey(M) White(L) Motor Motor Transformer Yellow Brown Brown Yellow Capacitance Capacitance LED light C(8µF/250V) C(8µF/250V) Specifications Body Stainless Steel / Tempered Glass Power Rating 120V/60Hz (USA & Canada standard) General Input Power 150W + # of Light x Voltage of Light 75Wx2 Motor Input Power 1100 RPM (±10%) to 1300 RPM (±10%) -
Page 13: Use And Care Information
Use and Care Information Operations Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. NEVER dispose cigarette ashes ignitable substances, or any foreign objects into blowers. -
Page 14: Maintenance
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces Clean periodically with hot soapy water and clean cotton cloth. -
Page 15: Cleaning And Replacing Led Light
Cleaning Filters IMPORTANT: Drain oil from oil containers before oil and residue overflow! The metal filters fitted by the factory are intended to filter out residue and grease from cooking . It need not be replaced on a regular basis but are required to be kept clean. -
Page 16: Warranty
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. Lifetime Motor Warranty The motor, which is covered by lifetime warranty, should beprovided free of charge by your local reseller given it failed due to manufacturing defects. - Page 17 What is Not Covered: Consumable parts such as light bulbs, metal and charcoal filters. The natural wear of finish, and wear due to improper maintenance , use of corrosive and abrasive cleaning products, pads, and oven cleaner products. Chips, dents or cracks due to abuse , misuse, freight damage, or improper installation.
-
Page 18: Disclaimer
Disclaimer Carefully inspect all items for damages before accepting delivery. Note any damages on the freight bill or express receipt. Request name and signature of the carrier’s agent and keep copy to suppor t your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 19: Contact Us
Contact Us If you need any assistance, please contact us at +1 905-727-8688 or info@vesta.kitchen. Please have your order number and model of the range hood ready . This information will help us better respond to your request. If you need replacement parts, we recommend that you only use genuine parts. - Page 20 www.vesta.kitchen...
