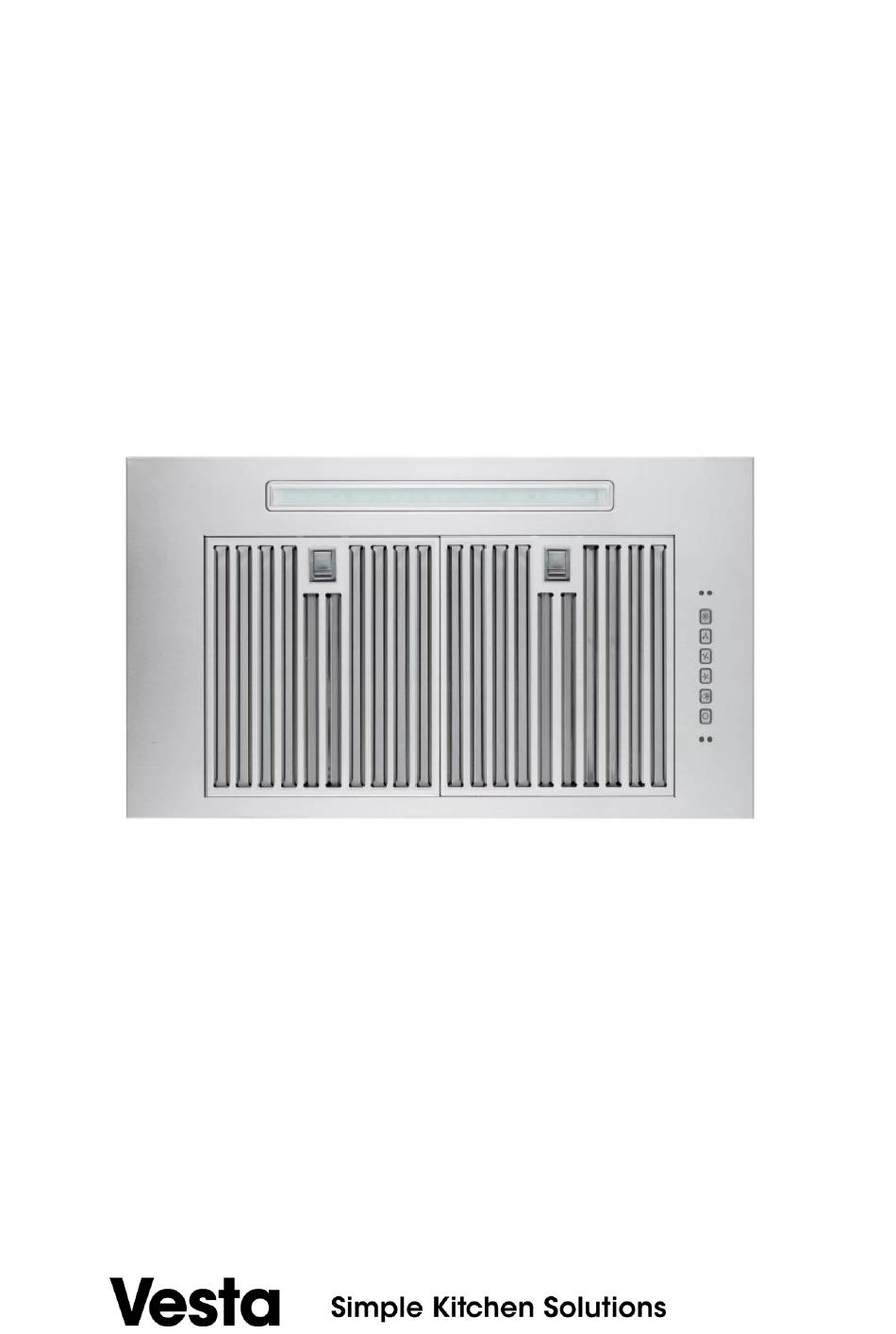

- Page 1 Vancouver User Manual VRH-VANCOUVER...
- Page 3 Table of Contents Important Safety Notice Tools Needed Parts Supplied Venting Requirements Height &Clearance Calculating Vent System Length Venting Methods Electrical Requirements Installation Operations Wiring Diagram Product Dimension Troubleshooting Use and Care Information Specifications Maintenance Warranty Disclaimer Contact Us...
- Page 4 Important Safety Notice READ ALL INSTRUCTIONS BEFORE INSTALLINGAND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers,service technicians or persons with similar qualified background.Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards,including fire-rated construction.
- Page 5 Fire Protection Association (NFPA),and the American Society of Heating,Refrigeration and Air Conditioning Engineers (ASHRAE),and the local code authorities. Before servicing or cleaning unit,switch power OFF at service panel and lock service panel to prevent power from being switched ON accidentally. Clean grease laden surfaces frequently.To reduce the risk of fire and to disperse air properly,make sure to vent air outside.
- Page 6 TO REDUCE THE RISK OF A STOVETOP GREASE FIRE: Keep all fan,baffle,spaces,filter,grease tunnel,oilcontainer and greaseladen surfaces clean.Grease should not be allowed to accumulate on fan,baffle,spaces,filter,grease tunnel and oil container. Always turn range hood ON when cooking at high heat or when cooking flaming foods. Use high setlings on cooking range only when necessary.
- Page 7 Use an extinguisher ONLY if: You know you have a Class A,B,C extinguisher,and you already know how to operate it. The fire is small and contained in the area where it is started. The fire department is being called. You can fight the fire with your back to an exit. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GAS LEAKS: Extinguish any open flame.
- Page 8 The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to observe the instructions given here for installation,maintenance and suitable use of the product. The manufacturer and/or distributor/reseller further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.
- Page 10 Parts Supplied...
- Page 11 Venting Requirements Vent system must terminate to the outside ( roof or sidewall) DO NOT terminate the vent system in an attic or other enclosed area. DO NOT use 4”(10.2 cm)laundry-type wall caps. Use metal/aluminum vent only.Rigid metal/aluminum vent is recommended.
- Page 12 Make sure there is a minimum of 24“(61 cm)of straight vent between the elbows if more than one elbow is used. DO NOT install two elbows together. The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. The vent system must have a damper.If roof or wall cap has a damper,DO NOT use damper(if supplied)on top of the range hood.
- Page 13 Height &Clearance Cabinet Venting Pipe Range Hood Min.:28” Max.:36” 36”Base Maximum ceiling clearance 110"at 36"hood mounting height above countertop/stove(may vary with different model). Chimney extensions available for higher ceilings.
- Page 14 Important A minimum of 8"round (standard for this range hood)must be used to maintain maximum airflow efficiency. Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. Please use Duct Run Calculation below to compute total available duct run when using elbows,transitions and caps.
- Page 15 Minimum Duct Size: Round -8"minimum...
- Page 16 Calculating Vent System Length To calculate the length of the system you need,deduct the equivalent feet for each vent piece used in the system from the recommended maximum duct run. DUCT RUN CALCULATION: Recommended maximum run 8”duct 50 ff Vent piece deduction Each 90 elbow used 9 ft Each 45 elbow used...
- Page 17 Venting Methods This range hood is factory set for venting through the roof or wall. Vent work can terminate either through the roof or wall.To vent through a wall,a 90°elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls,crawlspaces,ceiling,attics or garages.All exhaust must be ducted to the outside.
- Page 18 Electrical Requirements IMPORTANT:Observe all governing codes and ordinances. (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) IT IS THE CUSTOMER'S RESPONSIBILITY: To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code,ANSI/NFPA 70 ⼀...
- Page 19 The range hood must be connected with copper wire/plug only. Always use plug provided.If not possible,connect three wires according to its color (black to hot,white to neutral,and green to ground)to house wires and cap with wire connectors: WARNING Hood may have very sharp edges.Please wear protective gloves if it is necessary to remove any parts for installing,cleaning or servicing.
- Page 20 (Fig.B).Note:Wood blocking might need to be built if it's not available in order to secure the mounting screws. 4. Connect the duct and power cord. 5.Replace the decorative panel. Model 2 7 7/8 ” 16” VRH-VANCOUVER-30SS 33 7/8 ” 16 ” VRH-VANCOUVER-36SS...
- Page 21 Cut a hole in the bottom of the cabinet Fig.A Wood Blocking Fig.B...
- Page 22 Operations Button Functions * Power: Press the Power button to turn on the hood, touch it again to enter shut-off time setting. The default timer is set to 1 minute, Press the Power button one more time to turn off the hood immediately. * Volume: Press the speed control (Low,Mid,High speed) to increase the air volume to the highest and then cycle to the lowest air volume...
- Page 23 Wiring Diagram...
- Page 24 Product Dimension Model VRH-VANCOUVER-30SS VRH-VANCOUVER-36SS 3/8'' 3/8'' 2 5/8'' 2 5/8'' 3 5/8'' 3 5/8'' 6 1/8'' 6 1/8'' 15 1/2'' 15 1/2'' 27 1/2'' 33 1/2'' 16 1/2'' 16 1/2'' 28 1/2'' 34 1/2'' 16 1/2'' 17 1/2''...
- Page 25 Troubleshooting If the range hood or halogen light does not work after installation Check if the range hood has been plugged in,make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. Swap out light assembly to working ones to determine whether it is caused by defective bulbs.See Replacing the lightbulbs on Page 31-33.
- Page 26 The lights work but the blower is not spinning at all,is stuck or is rattling The blower might be jammed or scraping the bottom due to shipping damage.Please contact us immediately. The hood is not venting out properly Make sure the distance between the stove top and thebottom of the hood is within*28"and 36"in distance.*Due to different ceiling height configurations,recommended height may not be...
- Page 27 Use and Care Information WARNING —TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK,OR INJURY TO PERSONS,OBSERVE THE FOLLOWING:Use this unit only in the manner intended by the manufacturer.If you have questions,contact the manufacturer.Before servicing or cleaning unit,switch power off at service panel and lock switch power off at service panel and lock service panel to prevent power from being switched on accidentally.When the service disconnecting means cannot blocked,securely fasten prominent warning device such as a tag...
- Page 28 turn off the burner.BE CAREFULTO PREVENT BURNS.If the flames do not go out immediately,EVACUATE AND CALL THE FIRE DEPARTMENT.NEVER PICK UP A FLAMING PAN—you may be burned. DO NOT USE WATER,including wet dishcloths or towels —a violent steam explosion will result.Use an extinguisher ONLY if: You know you have a Class ABC extinguisher,and you already know how to operate it.
- Page 29 Specifications Body Stainless Steel 120V/60Hz(USA Power Rating &Canada standard) 250W+1 of Light x Voltage of General Input Power Light Motor Input Power 250 W Motor Revolution 600 RPM(±10%)to 1300 RPM (±10%) Levels Of Speed Control Maximum Airflow 900 CFM Air Pressure 150 Pa(200 Pa Maximum) Approximately 35/0.7 to 67 / Noise Level (dB /sone)
- Page 30 Maintenance SAFETY WARNING:Never put your hand into area housing the fan while the fan is operating! For optimal operation,clean range hood and all baffle/ spacer/ filter/grease tunnel/oil container regularly.Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces Clean periodically with hot soapy water and clean cotton cloth.
- Page 31 DO NOT allow salt solutions,disinfectants,bleaches,or cleaning compounds to remain in contact with stainless steel for extended periods.Many of these compounds contain chemicals,which may be harmful.Rinse with water after exposure and wipe dry with a clean cloth. Cleaning Filters IMPORTANT:Drain oil from oil containers before oil and residue overflow! The metal filters fitted by the factory are intended to filter out residue and grease from cooking.It need not be replaced on...
- Page 32 USA/Canada:LED 5W Make sure the range hood is unplugged or turn OFF breaker. Make sure the lights are cool to touch,carefully align the arrow on the inner ring with the arrow on the outer ring where it says OPEN.The inner ring will loosen and the lightbulb will be available for removal.Install a new light bulb and reverse the steps.
- Page 33 Replacing LED Light Fixture This range hood uses LED light fixture:5W LED Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch. Pull out the light xture. Disconnect the power cable and discard the old light xture.
- Page 34 Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt /invoice)in order to obtain service under warranty. Lifetime Motor Warranty The motor,which is covered by lifetime warranty,should be provided free of charge by your local reseller given it failed due to manufacturing defects.Subject to the conditions and limitations set forth below,your local reseller should,at its option,...
- Page 35 Who is Covered This warranty is extended to the original purchaser for products purchased for ordinary home use. This Warranty Will Be Voided When: Product damaged through negligence,improper installation, accident,abuse,misuse,natural disaster,insufficient orexcessive electrical supply,abnormal mechanical or environmental conditions,or any unauthorized disassembly,repair,modification, or failure to follow installation instructions.When product is used commercially or other than its intended purpose.Damaged because of improper connection with equipment of other...
- Page 36 purchaser and does not extend to subsequent owners of this product.Any applicable implied warranties,including the warranty of merchantability,are limited in duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and,no warranties,whether express or implied,shall apply to this product thereafter.
- Page 37 Disclaimer Carefully inspect all items for damages before accepting delivery.Note any damages on the freight bill or express receipt. Request name and signature of the carrier's agent and keep copy to support your claim.Upon acceptance of items,owner assumes responsibility for its safe arrival.Report damages to the carrier and file a claim immediately.Failure to do so may result in the denial of your claim.The carrier will furnish you with necessary forms for filing a claim.
- Page 40 Vesta Simple Kitchen Solutions www.vesta.kitchen...
