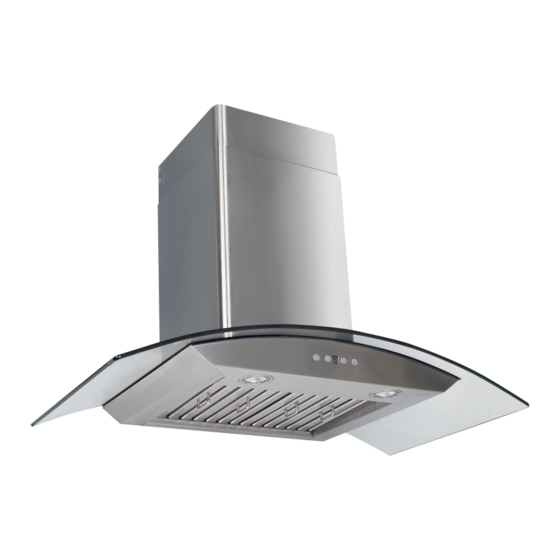

- Page 1 Berlin User Manual VRH-WI01-30SS/36SS...
-
Page 3: Table Of Contents
Table of Contents Important Safety Notice Height & Clearance Requirement Venting Requirement Venting Methods Electrical Requirement Tools Needed Parts Supplied Product Dimensions Installation Operations Specification Trouble Shooting Replacing the Light Bulb Use & Care Maintenance Warranty Disclaimer Contact Us... -
Page 4: Important Safety Notice
Important Safety Notice READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 5 Fire Protection Association (NFPA), and the American Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. • Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to prevent power from being switched ON accidentally.
- Page 6 TO REDUCE THE RISK OF A STOVE TOP GREASE FIRE: • Keep all fan, baffle, spaces, filter, grease tunnel, oil container and grease-laden surfaces clean. Grease should not be allowed to accumulate on fan, baffle, spaces, filter, grease tunnel and oil container. •...
- Page 7 • Use an extinguisher ONLY if: • You know you have a Class A, B, C extinguisher, and you already know how to operate it. • The fire is small and contained in the area where it is started. • The fire department is being called.
- Page 8 The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer and/or distributor/reseller further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.
-
Page 9: Height & Clearance Requirement
Height & Clearance Min: 24” Max: 31”... -
Page 10: Venting Requirement
Venting Requirements Hood mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and efficiency. Use metal duct work only. Rigid metal vent is recommended. A minimum of 6”... - Page 11 opening and as far apart, between 2, as possible. The size of the vent should be uniform. Use no more than three 90° elbows. Make sure there is a minimum of 24” of straight vent between the elbows if more than one elbow is used. DO NOT install two elbows together.
-
Page 12: Venting Methods
Venting Methods... -
Page 13: Electrical Requirement
Electrical Requirements IMPORTANT: Observe all governing building codes and city ordinances. A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 —... -
Page 14: Tools Needed
Tools Needed 1/8”... -
Page 15: Parts Supplied
Parts Supplied Range Hood Baffle Filters Ceiling Bracket ×1 Inside Chimney Outside Chimney Aluminum Vent Chimney Screws Mounting Screws Anchors Draft Damper Flaps Hex Key Grease Tunnel... -
Page 16: Product Dimensions
Product Dimensions... -
Page 17: Installation
Installation STEP 1: (OPTIONAL ONLY) Protect the cook top & create work station Have 2 piece of wood stub about 2” x 4” x 20” on both sides of stove and a plywood on top of them to protect cook top or stove from damage or dirt. - Page 18 hole HEIGHT: is dimension from cook top to bottom of range hood (vary from 24” to 31”) plus from bottom of range hood to mounting bracket hole. STEP 3: prepare ductwork & single outlet (skip this step if you already have it) Have 15amp, 120V, 60Hz, single outlet anywhere inside the chimney width lines (make sure at least 2 inches below ceiling line for ceiling bracket mount)
- Page 19 STEP 4: install ceiling bracket, mounting anchors and screws Place center of upper chimney bracket inline with centerline and all the way up to ceiling then screw it to the wall. Pre-drill holes where your mounting marks are, then insert wall anchors and mounting screws, make sure leaving 1/8”...
- Page 20 Find the three pronged plug and connect to an electrical outlet CAUTION: Do not release the hood yet until you finish Step 6 below. Install glass canopy Loosen the four canopy screws and washers from the hood top. Carefully place the canopy glass on the hood top then slightly tighten the four canopy screws along with washers.
- Page 21 Place both the chimney on top of range hood base Make sure the chimney is facing the correct direction Attach the inside chimney to the ceiling mounting bracket Screw the chimney into place on both sides STEP 8: Install baffle filters Angle baffle filter toward back of hood.
-
Page 22: Operations
Operations NOTE: For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. Button functions: 1. Power: Power ON/OFF the range hood and activate power- offer delay timer. - Page 23 Adjust the blower (motor) speed: 1. Press Power button once to turn on the system. The blower Speed Indicator shows the blower (motor) speed level. Decrease Value button will decrease the speed of the blower (motor) from 6 to 1 (strongest to quietest).
-
Page 24: Specification
Specifications Body Stainless Steel / Tempered Glass Power Rating 120V/60Hz (USA & Canada standard) General Input Power 126W (120W + 2x3W) Motor Input Power 120 W each Ampere 3.0 A Levels Of Speed Control Maximum Airflow 900 CFM Noise Level (dB / sone) Approximately 35 / 0.7 to 67 / 6.5 (Lowest to highest Speed) Motor Type... -
Page 25: Troubleshooting
Troubleshooting If the range hood or lights does not operate after installation: Check if the range hood has been plugged in, make sure that all power has been turned back ON, the fuse is not blown and all electrical wiring is properly connected. Swap out light assembly to working ones to deter•... - Page 26 shipping damage. Please contact us immediately. The motor is defective, possibly seized - change the motor. The hood is not venting out properly: Make sure the distance between the stove top and the bottom of the hood is within 26” and 30” in distance. Due to different ceiling height configurations, recommended height may not be applicable.
-
Page 27: Replacing The Light Bulb

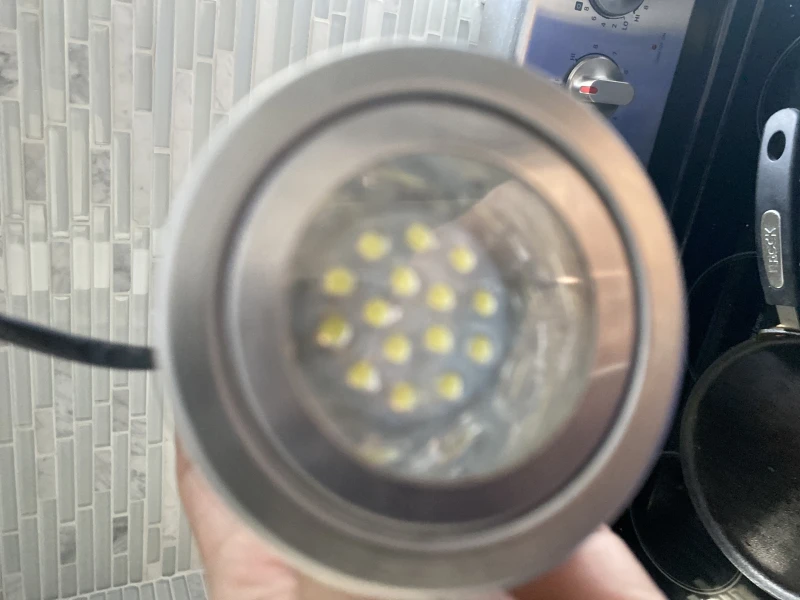

Replacing the Light Bulb 1. Make sure the range hood is unplugged or turn OFF breaker. 2. Use the small flat crew driver to lift any where around the outsider ring as show in below picture Arrow. 3. Install new light bulb 4. -
Page 28: Use & Care
Use and Care Information Operations Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 29: Maintenance
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/ filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces Clean periodically with hot soapy water and clean cotton cloth. - Page 30 DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth. Cleaning Filters IMPORTANT: Drain oil from oil containers before oil and residue overflow!
-
Page 31: Warranty
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. Lifetime Motor Warranty The motor, which is covered by lifetime warranty, should be provided free of charge by your local reseller given it failed due to manufacturing defects. - Page 32 Who is Covered This warranty is extended to the original purchaser for products purchased for ordinary home use. This Warranty Will Be Voided When: Product damaged through negligence, improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair, modification, or failure to follow installation instructions.
- Page 33 purchaser and does not extend to subsequent owners of this product. Any applicable implied warranties, including the warranty of merchantability, are limited in duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and, no warranties, whether express or implied, shall apply to this product thereafter.
-
Page 34: Disclaimer
Disclaimer Carefully inspect all items for damages before accepting delivery. Note any damages on the freight bill or express receipt. Request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. -
Page 35: Contact Us
Contact Us If you need any assistance, please contact us at +1 905-480- 0556 or info@vesta.kitchen . Please have your order number and model of the range hood ready. This information will help us better respond to your request. If you need replacement parts, we recommend that you only use genuine parts. - Page 36 www.vesta.kitchen...
