Mercia Garden Products Chestnut Manual

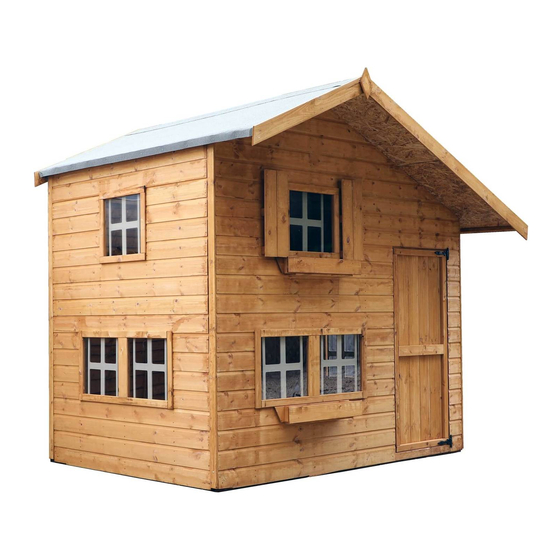

Chestnut & Bramble Playhouse
For family domestic use only
WARNING. Not suitable for children under 36 months
TO BE USED UNDER THE DIRECT SUPERVISION OF AN ADULT
x2
This building should be
erected by two people.
Drill
Bramble
2mm bit
For ease of assembly, it is
advisable to pilot drill all
screw holes and ensure all
screw heads are countersunk.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products
independently tested to EN71 level . We cannot accept responsibility for your safety whilst erecting or using this
product. Children of any age should not be left to play unsupervised.
Your instructions should be read carefully before commencing assembly.
Dispose of all packaging and plastic bags safely. Retain instructions for
safety advice for future reference. Note: plastic bags can be harmful to small children.
WINTER = HIGH MOISTURE = EXPANSION
SUMMER = LOW MOISTURE = CONTRACTION
Before you start
- Tools required for installation (Not Supplied)
- Drill & 2mm drill bit, Hammer, Spirit level, Measuring tape, Screwdriver (Phillips),
Stanley knife, Wood Saw & Step Ladder
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand,
plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be a ected during various weather conditions. For
the duration of heavy or extended periods of rain, swelling of the wood panels may occur.
Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment however this
only helps to protect during transit of your garden item. To validate your guarantee and
for better protection against weathering it is highly recommended that you treat the
garden building with a wood preserver within 3 months of assembly. This will need to be
re-applied annually to ensure longevity of your building. Care must be taken when
constructing the garden building that it is not touching the ground and is on a suitable
base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
Base Required
2398mm
Chestnut
Specification
Height x Width x Depth
2430mm x 2610mm x 2224mm
For Assistance Please
Contact Customer Care on :-
01636 880514
If any parts have been
damaged during the assembly of
the building, replacement parts
can be ordered through our
customer care centre and will
carry a minimum charge.
Call Customer Care on :-
01636 880514
BUILDING CONTENTS
Door Gable
Rear Gable
Floor Bunk Floor
Roof Eave
Corner Strips
Roof Support Bar
Roof Support Strip
Fascias
x2
Ladder Side (pair)
Bramble x40
x28
Glazing Bead
Door Stop
x6
x2
Finial
L Bracket
Chestnut Only
Door Handle
Black Antique Hinge x3
Left Side Panel
Right Side Panel
x2
Bramble Door Gable
Door Small Door
Safety Rail
Ladder Step
x2
x4
x2
Fascia Fixing Blocks
x2
x4
x2
(bramble x10)
x7
Window Frame
x2
Cabin Hook
Window Shutters Window Box
x3
Roof Sheet
30mm Screw - 92
30mm black screws 29
40mm Screw - 33
50mm Screw - 36
70mm Screw - 10
Felt Tacks - 110
Bramble Only
x2
