Table 4: Device Information
Heading
Model
Type
Transmit Volts
EOL

Issue Information

The Issue information section of the report is one record per issue recorded.
Table 5: Issue Information
Heading
Issue
Time sec
Example Report in Excel

Report Submenu

The Report menu has six submenu items:
Save: Save the current data in the tool to a Report.
Name: Enter the name of the report.in alphanumeric characters. For FC Bus reports, it is
recommended to use the Engine name followed by trunk number, if applicable.
Note: NAE1 1 would mean trunk 1 on NAE 1.
20
Description
Device object Model Name property for device at address. (Typically only
Johnson Controls manufactured devices.)
Device object Vendor property for device at address. (Typically only
Johnson Controls manufactured devices.)
The differential communication voltage recorded for the device at
address.
The Position of the End-Of-Line Switch reported at address. (Typically
only Johnson Controls manufactured devices.)
Description
The name of the issue (Online, Badframe) SeeTable 2 for a complete list
of possible recorded issues.
This is the number of seconds from when the FIT was powered on until
the issue was captured.

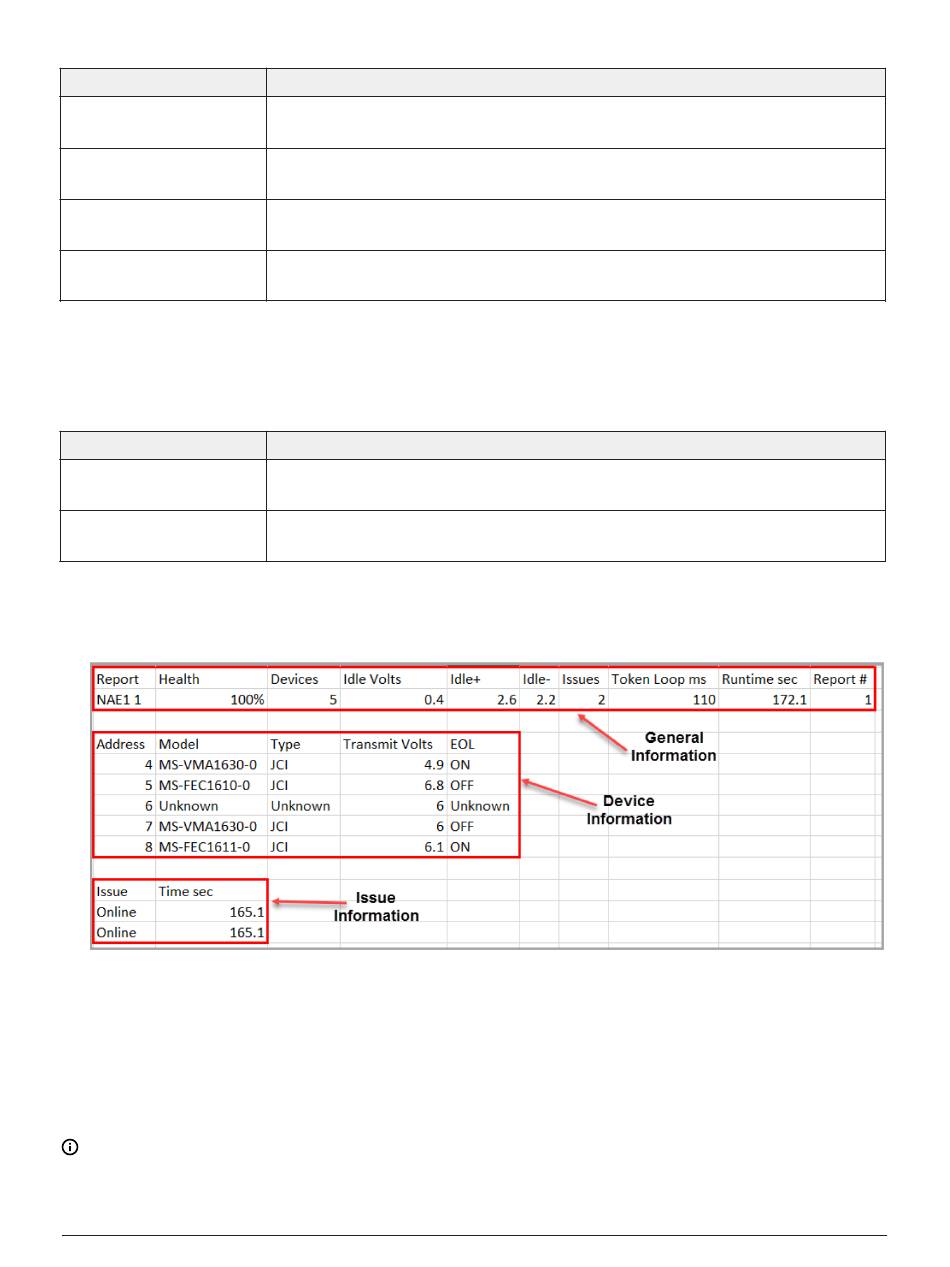

Figure 14: Example Report
