Simplex TrueCom 5140-9243 Quick Start Manual

TrueCom™ ™
Building Communications Systems
5100 Options and Accessories
5140-9243
Detention Control Console
Features
• Custom Graphical Panel Interface
• Push to Talk Intercom Operation
• Intercom/Paging Microphone Interface
• Ramp Up/Down Speaker Volume Control
• Full Duplex Telephonic Capabilities
• Headset/Handset Compatible
• Twelve Autodial Inputs
• Standard Telephone Keypad Inputs
• Full Frequency Audio Monitoring
Publication S5140-0005
Push to
program
speed dial
numbers
firealarmresources.com
Console
Bypass
Phone Jack

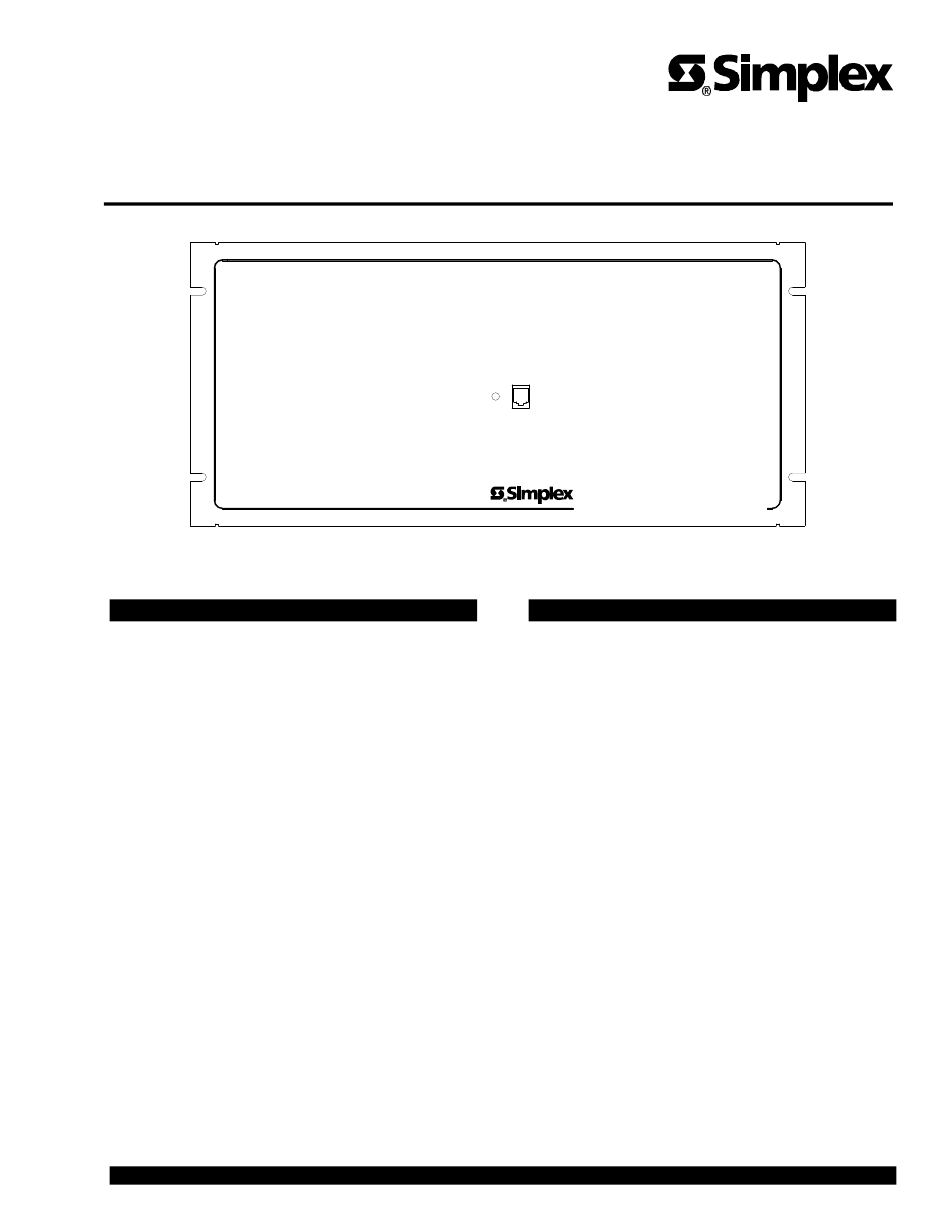

5140-9243 Detention Control Console
Building Communications Systems
Description
The Simplex 5140-9243 Detention Control Console
allows access to all communications features and control
functions of the 5100 series communications system. The
-9243 provides a 25 pair amphenol connector to interface
to N/O (normally open) contacts of a custom graphic
panel (provided separately) to provide one touch
activation of a wide variety of system features. The
Control Console can be used in conjunction with the
5120-9151 Graphic I/O board providing direct select
integration to intercom and camera control functions.
When integrated with a graphic panel, push to talk
intercom operation with remote hands-free 5100 stations
can be accomplished by simply pressing the proper icon
on the graphic panel. Full duplex telephone
communications and industry standard DTMF dialing is
also provided to allow direct dialing to locations not
designated on the graphic. The -9243 features twelve 18
digit autodial inputs for direct dialing, zone paging and
frequently accessed control functions. Flash, pause,
redial, mute, and monitor speaker volume up/down
controls are also provided. A microphone input and
speaker output is available eliminating the need of a
telephone handset.
The 5140-9243 is designed to operate on 5100 Series
System Administrative Ports or 5195 Series System Single
Line Analog Telephone Ports.
Simplex ID 579-019 01/97
