Simplex TrueAlarm Manual

UL, ULC, CSFM Listed; FM Approved;
MEA (NYC) Acceptance*
Features
Standard features include:
 Up to 250 addressable TrueAlarm sensor or addressable
device points using IDNet communications that operate
with either shielded or unshielded twisted pair wiring
 Four, 2 A notification appliance circuits (NACs) with
solid state current protection
 Power supply/battery charger with 4 A available for
NACs and auxiliary power
 Internal event reporting DACT module (standard on
models 4010-9101, 4010-9102, & 4010-9150)
 UL listed to Standard 864
Installation convenience features:
 Power-limited design provides electronic modules on
a one-piece chassis with up-front terminal blocks for
wiring access
 Compact NEMA 1 rated cabinet is available in beige
or red and can be pre-shipped for early installation
Setup, programming, and maintenance features:
 Device level ground fault search, locate, and isolate
 Auto Program for general alarm operation
 TrueAlarm individual analog sensing with front panel
information and selection access
 "Dirty" TrueAlarm sensor maintenance alerts, service
and status reports including "almost dirty"
 Default TrueAlarm sensor device type operation
 TrueAlarm sensor peak value performance report
 Duplicate address error detection
 Front panel or PC programming
 WALKTEST silent or audible system test
 Software verification simulation mode
Supports the following IDNet devices:
 Addressable manual stations; TrueAlarm sensor bases,
duct housings, and isolator bases
 Quad-state zone adapter modules (ZAMs) for initiating
device monitoring
 Quad-state line powered individual addressable modules
(IAMs) for initiating device monitoring and relay control
 4009 IDNet NAC Extenders and accessories
Available option modules include:
 Door mounted 24 LED annunciator (std. on ULC models)
 Network connection, or Point Reporting DACT
 Class A, NAC adapter module
 RS-232 ports for printer and maintenance PC
 Expansion power supply; Auxiliary Relay Module or
City Interface
 Equipment for Suppression Release Applications
(refer to data sheet S4010-0003)
Compatible with Simplex
 4003 Voice Control Panel
 4081 Battery Cabinet with charger for 50 Ah batteries
®
auxiliary panels:
TrueAlarm Fire Alarm Controls
Model 4010 Fire Alarm Control Panel for TrueAlarm
Analog Sensors and IDNet Addressable Devices

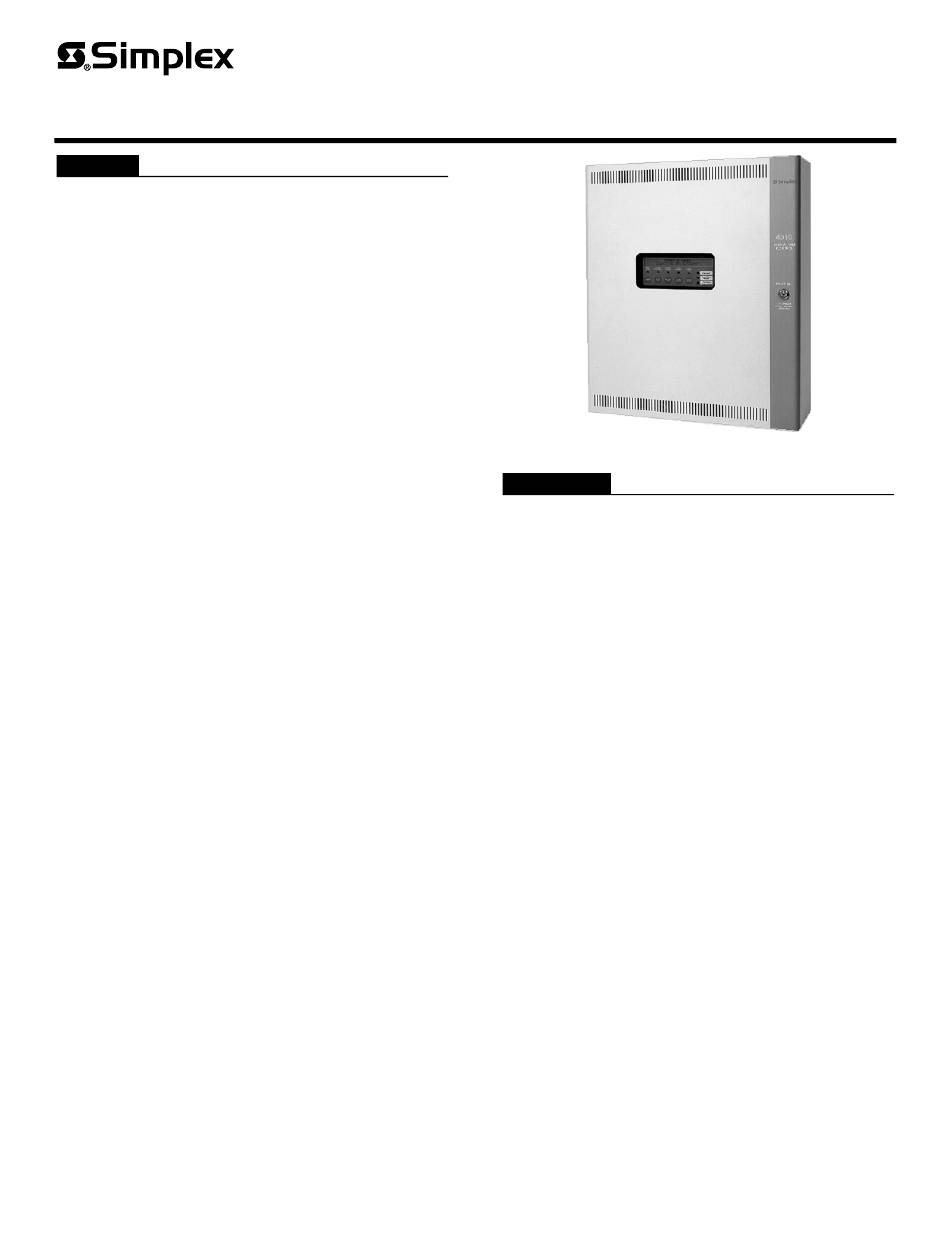

4010 Fire Alarm Control Panel (with standard door)
Description
TrueAlarm fire alarm control panels have the ability
to provide location accuracy for monitoring and control.
When equipped with TrueAlarm analog sensing for smoke
and heat detection, the processing power of the control
panel also has the ability to analyze conditions at each
location to provide accurate detection with significantly
reduced maintenance costs.
The 4010 TrueAlarm Fire Alarm Control Panel has been
specifically designed to provide addressable operation and
analog detection in a cost-effective package for application
sizes that previously were considered only appropriate for
conventional zoned monitoring.
Installation and Service Ease. The 4010 mounts on a
single chassis for quick installation and removal. Terminal
blocks are large and up-front for easy access and inspection.
Optional modules are easily and quickly installed, and
programmed as required.
The 4010 cabinet provides convenient stud markers for
drywall thickness and nail-hole knockouts for quicker
mounting. Smooth cabinet surfaces are provided for locally
cutting conduit entrance holes exactly where required. 4010
cabinets and electronics can be ordered separately, allowing
early cabinet installation.
Ground Fault Assistance. Ground fault problems often
occur during installation. The 4010 provides isolating
circuitry, control of isolator bases, and software-controlled
sequencing to isolate ground faults to specific identified
locations. This assistance helps the installer to accurately
locate the wiring problem for quicker repair.
* Refer to page 6 for listing details. This product has been approved by the California State
Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code.
See CSFM Listing 7170-0026:226 for allowable values and/or conditions concerning
material presented in this document. Accepted for use – City of New York Department of
Buildings – MEA35-93E. Additional listings may be applicable; contact your local Simplex
product supplier for the latest status. Listings and approvals under Simplex Time Recorder
Co. are the property of Tyco Fire Protection Products.
S4010-0001-14 6/2014
