- Page 1 MINI-STRIKER ® Owner’s Manual Publication Date : 03/2015 Publication Number: 701245, Rev. 1...
- Page 2 This document provides information proprietary to WATERAX Inc. and cannot be used or disclosed without WATERAX’s written authorization. WATERAX Inc. reserves the right to make changes without notice in its products or components as research and development or marketing conditions warrant. Changes affecting the operation of any component in this manual will be reflected in a subsequent revision.
-
Page 3: Table Of Contents
WATERAX MINI-STRIKER Owner's Manual Contents Important Safety Instructions .................... 2 Personal Safety Advisory ......................2 Warnings ............................2 Preventing Damage to Equipment..................3 Introduction ........................4 About this Manual ......................... 4 Abbreviations and Terms ......................4 About the MINI-STRIKER Series ....................5 Parts Identification ........................ -
Page 4: Important Safety Instructions
READ THIS MANUAL BEFORE OPERATING YOUR PUMP! The improper use of the WATERAX pump could result in serious injuries as well as damage to the pump. Any operator should familiarize himself with the apparatus and its capabilities before trying to operate the equipment in an emergency situation. -
Page 5: Preventing Damage To Equipment
Operating the pump in such a manner can overheat the pump causing damage to seals, or pump internals. It is recommended that all fasteners be replaced with genuine WATERAX parts. When mounting manifolds to the pump, the manifolds must be self-supporting and ®... -
Page 6: Introduction

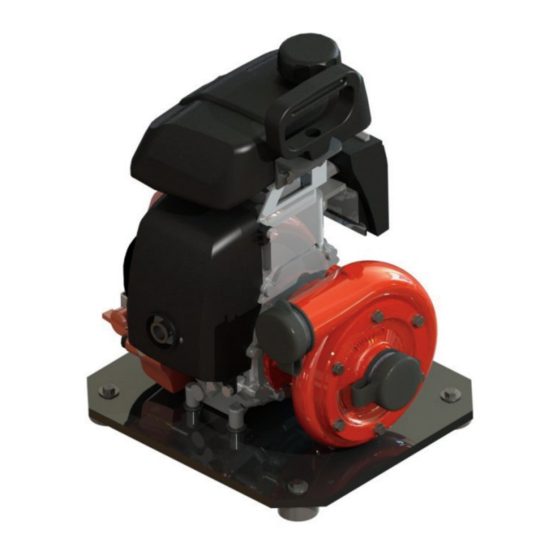

GXH50 2.5 HP gasoline-powered engine . These instructions cover most wildland and municipal pump applications. If the application the pump is being used for does not fall into these general guidelines, consult WATERAX Inc. for any additional safeguards, operating, or maintenance considerations that may be required. -
Page 7: About The Mini-Striker Series
Entry-level slip-on units Sprinkler operations Tandem pumping over long distances Features and Benefits of the WATERAX MINI-STRIKER series include: Lightweight aluminum alloy pump components for lighter weight Portable and compact Compatible with foam applications ... -
Page 8: Installation
Installation Depending on your model and configuration ordered, you may require additional accessories from WATERAX or from third-party vendors, for example, control panels, batteries, and fuel lines. You will also require hoses and nozzles as well as other fire apparatus plumbing which can be purchased through your WATERAX representative. -
Page 9: Operating Mini-Striker Series Pumps
WATERAX MINI-STRIKER Owner's Manual Operating MINI-STRIKER Series Pumps Pre-Operation Checklist Before using your pump, follow this verification procedure: 1. Visually inspect product When you first receive your MINI-STRIKER pump, inspect the product and check for any damage. Notify the supplier if any damage is found. -
Page 10: Priming The Pump
WATERAX MINI-STRIKER Owner's Manual Barometric pressures below 98 kPa (29 in of Hg) can also cause noticeable loss in pump performance (specifically elevations >2000 feet above sea level). Pump performance curves are based off a 5 foot lift (top of water source to ... -
Page 11: Startup And Discharge
WATERAX MINI-STRIKER Owner's Manual Startup and Discharge 1. Fill fuel tank with recommended fuel grade. Fill tank and securely replace cap. 2. Start the engine (automatic rewind type starter). With all valves closed, move the engine’s fuel valve lever to the Choke ON position. -
Page 12: Shutdown
WATERAX MINI-STRIKER Owner's Manual Shutdown 1. After completing the pump operation, gradually reduce the engine speed to idle by slowly moving the throttle lever to the MIN. position, and slowly close the discharge valves (preferably in the order listed). 2. Whenever the unit has been run at full throttle for most of the operation, allow the discharge valves to remain slightly open and run the engine at idle for approximately 2 minutes before shutting down the unit. -
Page 13: Basic Care And Storage
WATERAX MINI-STRIKER Owner's Manual Basic Care and Storage The basic care described in this section does not require any disassembly of the pump. For any servicing procedures that require removing any part of the pump to access a component, please see the Service section. -
Page 14: Troubleshooting
WATERAX MINI-STRIKER Owner's Manual Troubleshooting This section provides brief troubleshooting instructions for verifying the set-up and operation of the pump. Each section describes a condition and lists possible causes along with a list of items to check to identify the source of the problem and resolve it. - Page 15 WATERAX MINI-STRIKER Owner's Manual Pump Does Not Meet Performance Incompatible Piping size and configuration may be too restrictive. Contact a WATERAX Inc. Installation representative if assistance is needed in evaluating the unit’s piping. Gauge or Check that all gauges are calibrated and that all equipment is in proper Instrument condition.
-
Page 16: Service
For maintenance instructions regarding the engine, as well as for oil and fuel recommendations, please refer to the engine manufacturer’s manual. Note: It is recommended that all fasteners be replaced with genuine WATERAX parts. Parts Breakdown MSTR-P Parts Figure 1: Exploded view of MINI-STRIKER (portable). - Page 17 WATERAX MINI-STRIKER Owner's Manual MSTR-V Parts Figure 2: Exploded view of MINI-STRIKER (vehicle). ID ITEM NO DESCRIPTION 1 800515 FAST-46 1/4-28X3/4 HEX CAP SS 2 600062 B-7438 PUMP BODY MINI-STRIKER, ALU. ANODIZED 3 700081 A-7436 PUMP SHAFT FOR MINI-STRIKER, S.S.
-
Page 18: Disassembly And Assembly Of The Pump End
WATERAX MINI-STRIKER Owner's Manual Disassembly and Assembly of the Pump End Before Disassembly or Assembly Read and follow all instructions thoroughly and carefully. Ensure shaft, bores, screws, etc. are free of burrs and lubricant. Tools Required SAE Socket wrench with the following socket: 10 mm ... -
Page 19: Warranty
WATERAX, (the “Purchaser”) that its products, including any pump parts products manufactured by WATERAX (the “Products”) sold under Seller’s brands will be free of defects in material and workmanship for the applicable Warranty Period (as set out in full at www.waterax.com/eng/warranty). - Page 20 All information contained in this document including drawings is proprietary to WATERAX and may not be copied, reproduced or used in whole or in part without our prior written permission. The information in this document is subject to change without notice. Model displayed with multiple options.
