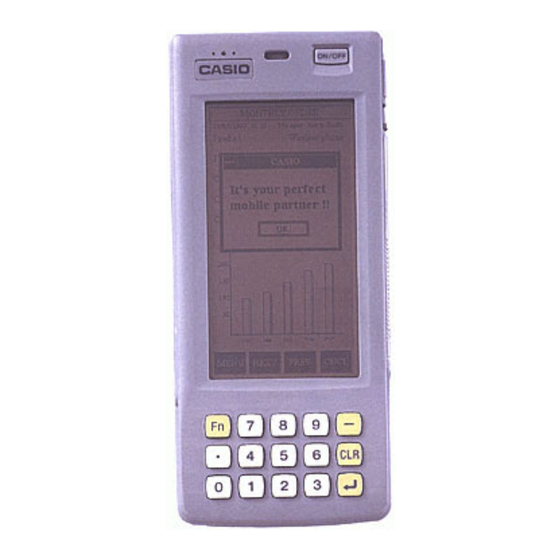

Casio IT-2000 Installation Manual

Casio pda i/o box installation manual.
Hide thumbs

Advertisement

IT-2000
I/O Box Installation
Manual
(Version 1.00 )
April 1998
Casio Computer Co., Ltd.
Copyright ©1998. All rights reserved

Advertisement

   Also See for Casio IT-2000

   Related Manuals for Casio IT-2000

   Summary of Contents for Casio IT-2000

  • Page 1

    IT-2000 I/O Box Installation Manual (Version 1.00 ) April 1998 Casio Computer Co., Ltd. Copyright ©1998. All rights reserved...

  • Page 2: Table Of Contents

    2.3.4 Setup of PC Chapter 3 Operation Method File Upload 3.1.1 Specifying Files from PC 3.1.2 Specifying Files from IT-2000 File Download 3.2.1 Specifying Files from PC 3.2.2 Specifying Files from IT-2000 Chapter 4 Error Codes and Error Messages Chapter 5...

  • Page 3: Overview

    This system performs file transfer and other operations between the Casio Data Collection Terminal IT-2000 (hereinafter referred to as this terminal or IT-2000) and an AT architecture-based personal computer (hereinafter referred to as PC or Host PC) via the I/O Box.

  • Page 4: System Configuration And Installation Method

    Connector shape: Modular cable for chaining DT-751HF Connector shape: Half to Full DT-752HH Connector shape: Half to Half DT-753HP Connector shape: Half to Pinhalf IT-2000 Only for AT-compatible architecture (see note) Only for models specified by Casio (see note) Dedicated for Windows95 Remark...

  • Page 5: System Configuration

    PC side Upload/Download Utility RS-232C Satellite I/O Box C-out RS-422 C-in Satellite I/O Box C-out RS-422 C-in Satellite I/O Box IrDA IT-2000 Software IT-2000 side FLINK of Windows 3.1 ver. or FLINK of MD-DOS ver. IrDA IT-2000 IrDA IT-2000 IrDA IT-2000...

  • Page 6: With Single Master I/o Box

    Master I/O Box C-out SCSI C-in Master I/O Box C-out SCSI C-in Master I/O Box Software IT-2000 side FLINK of Windows3.1 version or FLINK of MS-DOS version IrDA IT-2000 Software IT-2000 side FLINK of Windows3.1 ver. or FLINK of MS-DOS ver. IrDA...

  • Page 7: With Master And Satellite I/o Boxes

    IT-2000 SCSI IrDA Master I/O Box IT-2000 SCSI IrDA Master I/O Box Software PC side Upload/Download Utility IT-2000 side FLINK of Windows3.1 ver. or FLINK of MS-DOS ver. IT-2000 IrDA RS-422 Satellite I/O Box IT-2000 IrDA RS-422 Satellite I/O Box...

  • Page 8: Installation Method

    This section describes the installation and setup procedures that must be performed before I/O Box and PC operations are started. The following diagram shows a flow of the setup procedure. Fig.2.6 Installation flow of IT-2000 (If Master I/O Box is used)

  • Page 9: Setup Of Satellite I/o Box

    2.3.1 Setup of Satellite I/O Box The following paragraphs explain how to set up the Satellite I/O Box and Master I/O Box to be connected to the PC. Note that the DIP switch settings of the Satellite I/O Box differ depending on the connection with single Satellite I/O Box or multiple Satellite I/O Boxes.

  • Page 10

    Make sure that the POWER switch of the I/O Box is set to OFF. Set the DIP switch of the first I/O Box to be connected to the PC directly as follows. Set the DIP switch of other I/O Boxes to be connected under daisy-chain as follows. Set DIP switch no.

  • Page 11: Setup Of Master I/o Box

    2.3.2 Setup of Master I/O Box Note that the DIP switch settings of the Master I/O Box differ depending on whether the system configuration is consisted of only single Master I/O Box or of multiple Master I/O Boxes that are followed by Satellite I/O Boxes. Make sure that the POWER switch of the I/O Box is set to OFF.

  • Page 12: Setup Of Satellite I/o Box To Master I/o Box

    Power SCSI termination Supplies power Does not supply power Connect the first I/O Box and PC with the SCSI cable. Then connect the SCSI connector of the I/O Box connected to the PC to the SCSI connector of the other I/O Box via the SCSI cable. Connect the remaining I/O Boxes so that the one with the terminator setting becomes to the last under daisy-chain connection.

  • Page 13: Setup Of Pc

    2.3.4 Setup of PC Connection If using the Satellite I/O Box, plug the connection cable into the COM port of the PC. If using the Master I/O Box, plug the connection cable into the SCSI board of the PC. Startup First turn ON the power to each I/O Box, then turn ON the PC power to start up Windows95 and start up the Upload/Download Utility.

  • Page 14: Environment Setup

    Environment Setup If the I/O Box to be connected to the PC is a Satellite I/O Box, select "RS-232C" from the "Configure" menu of the Upload/Download Utility, then select "Settings" from the same menu. Fig. 2.8 RS-232C Main Menu screen In the COM PORT field select the COM port number in the PC to be used.

  • Page 15: Operation Method

    On this system each function will be executed if the IT-2000, which has started up the FLINK Utility, is mounted on the I/O Box after the PC-side utility was started up. Each function can also be executed by initiating the PC-side utility after mounting the IT-2000, which has started up the FLINK Utility, on the I/O Box.

  • Page 16

    Set the "Mode" option, if necessary. Click on the [OK] button. If preparation has been completed on the IT-2000 side, the progress bar will be displayed and file uploading will begin. If a communication anomaly occurs, an error message will be displayed and communication will be terminated.

  • Page 17: Specifying Files From It-2000

    Fig. 3.2 Screen displayed after "Link Manager Start" If the preparation has been completed on the IT-2000 side, the progress bar will be displayed and the file upload will begin. If a communication anomaly occurs, an error message will be displayed and communication will be terminated.

  • Page 18

    ]= { "fl" , "/s", "D: This transfers D: FILE from the IT-2000 to C: If the preparation has been completed on the PC side, the progress bar will be displayed and file uploading will begin. If a communication anomaly occurs, an error message will be displayed and communication will be terminated.

  • Page 19: File Download

    In the "File(s)" field specify the name of the objective file on the PC by its full path name. In the "Destination Dir" field specify the directory by its full path name on the IT-2000 in which the received file is to be stored.

  • Page 20

    FLINK.EXE of MS-DOS version Start up MS-DOS. Start up FLINK without adding any parameters. "Wait..." is displayed on the IT-2000 screen and the idle mode is set. FLINK.DLL of Windows 3.1 version Start up Windows 3.1. Start up FLINK without adding any parameters.

  • Page 21: Specifying Files From It-2000

    Fig. 3.4 Screen displayed after "Link Manager Start" If the preparation has been completed on the IT-2000 side, the progress bar will be displayed and file downloading will begin. If a communication anomaly occurs, an error message will be displayed and communication will be terminated.

  • Page 22

    If the preparation has been completed on the PC side, the progress bar will be displayed and file downloading will begin. If a communication anomaly occurs, an error message will be displayed and communication will be terminated. FILE", "D: yyy" } yyy on the IT-2000.

  • Page 23: Error Codes And Error Messages

    Since error messages are displayed for each I/O Box, a maximum of eight error messages can be displayed at one time. If an error occurs on the IT-2000 side, the corresponding error message will appear on the LCD of the IT-2000.

  • Page 24

    Error Code Error Message Categ. Detai 0x00 0x00 NormalEnding 0xDC 0x00 ADriveFormatNotice 0xF5 0x00 ZDriveFormatNotice 0xF8 0x00 BreakKeyInterruptEndingNotice 0x01 0x00 UndefineFunctionCode 0x01 0x01 UndefineSubFunctionCode 0x01 0x02 NotExecuteCommand 0x01 0x03 CheckSumError 0x01 0x04 CommandSequenceError 0x01 0x05 SequenceNumberError 0x01 0x06 OtherProtocolError 0x01 0x07 ParameterError 0x01 0x08 TimeoutError 0x01 0x10 DataLengthError 0x01 0x12 ProtocolVersionDifferenceError...

  • Page 25

    Error Code Error Message categ Detai 0x04 0x00 ReadOnlyFileAccessError 0x05 0x00 CommunicationError 0x05 0x03 SpawnError 0x05 0x04 CommandTimoutError 0x05 0x05 ErrorOpeningErrorLogFile 0x05 0x06 OptionError 0x05 0x07 StartupError 0x05 0x08 OpenError 0x05 0x09 ListenError 0x05 0x0A AcceptError 0x05 0x0B NotEnoughMemoryToExecuteProcess Memory is not enough. 0x05 0x0C ArgumentListTooLargeForTheProcess Process is too long.

  • Page 26: Q And A

    Which IrDA standard is used for communication between the IT-2000 and Satellite/Master I/O Box ? IrDA 1.0 is used for communication between the Satellite I/O Box and IT-2000, and IrDA 1.1 is used for communication between the Master I/O Box and IT-2000.

  • Page 27

    DOS window has been closed. If multiple Satellite I/O Boxes are connected under daisy-chain, can each IT-2000 terminal independently use either the MS-DOS version of FLINK or the Windows3.1 version of FLINK ? This is not permitted.

  • Page 28

    A startup error occurs if the SCSI cable is not properly plugged in or if the power to all the Master I/O Boxes is not on. If multiple Master I/O Boxes are connected, can each IT-2000 terminal independently use either the MS-DOS version of FLINK or the Windows3.1 version of FLINK ? This is not permitted.

  • Page 29: Reference Manuals

    6. Reference Manuals Besides this IT-2000 I/O Box Installation Manual, the following manuals are available for the IT-2000 system as application program development manual. IT-2000 Upload/Download Utility Manual IT-2000 Technical Reference Manual IT-2000 Hardware Manual...

  • Page 30: List Of Scsi Boards And Scsi Cables

    7. List of SCSI Boards and SCSI Cables The listed SCSI Boards and Cables below have been assessed for the operability with the IT-2000. Thus, they are recommended for use with the IT-2000. Manufacturer SCSI Board Adaptec Adaptec Adaptec Adaptec...

  • Page 31: Installation Method Of Upload/download Utility

    Appendix Installation Method of Upload/Download Utility Installation The Upload/Download Utility software consists of the following software components: File name LMWIN32.EXE driver32.dll hfc32.dll Iman32.dll scsidrv.dll tcpip.dll LMWIN.INI DEVICE.INI Other The above software components are supplied as a complete package. All files and libraries necessary for installation can be generated from the “...
