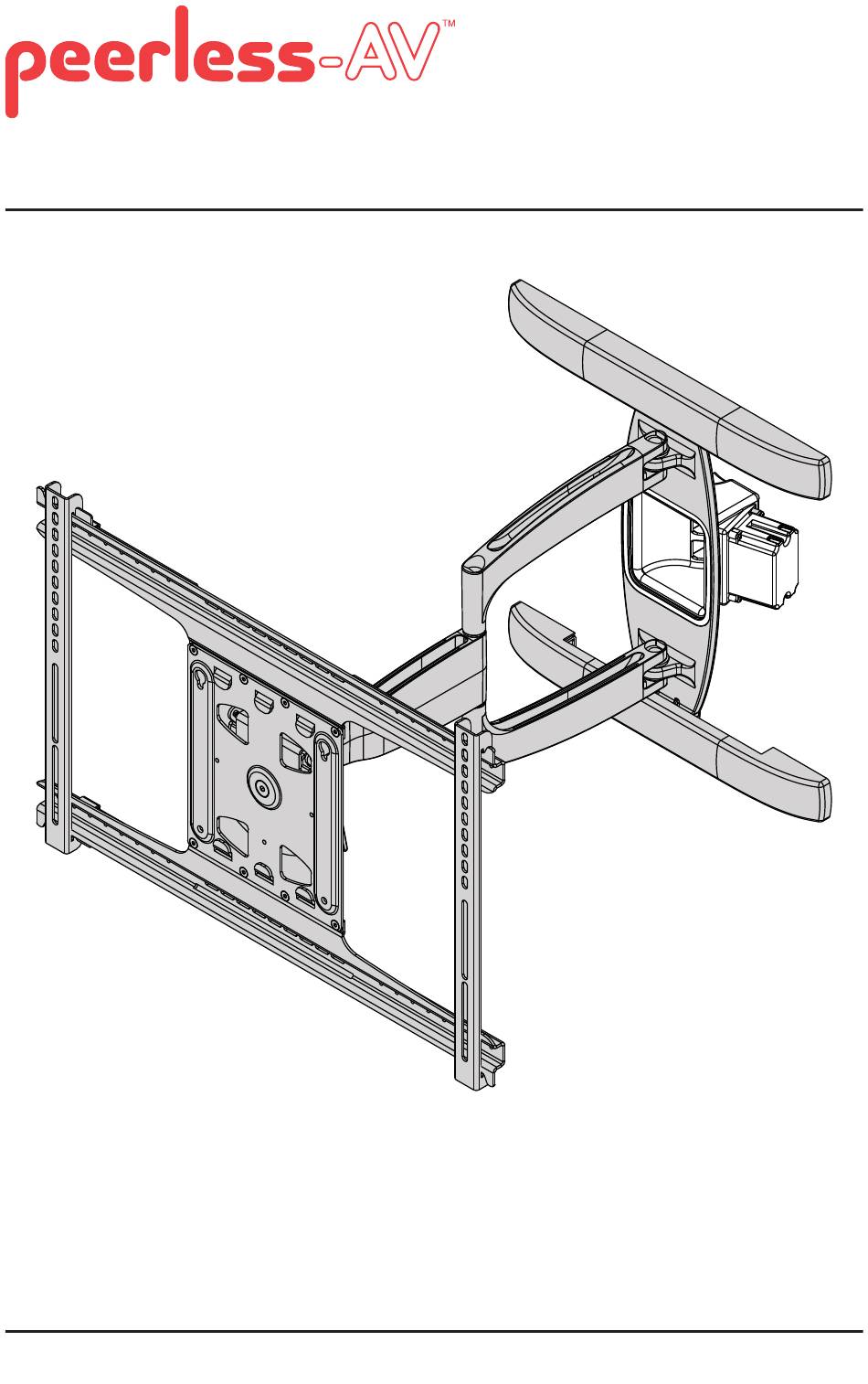

Installation and Assembly:
Accessory In-Wall Box for SAX762PU and SAX772PU
Models: ACCXT400
ARM ASSEMBLY
(sold separately)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 07-09-12 SHEET #: 120-9158-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV ACCXT400
Summary of Contents for peerless-AV ACCXT400
- Page 1 Installation and Assembly: Accessory In-Wall Box for SAX762PU and SAX772PU Models: ACCXT400 ARM ASSEMBLY (sold separately) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com ISSUED: 07-09-12 SHEET #: 120-9158-1...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
- Page 3 See accompanying instruction manual for installation of wall arm to wall. Remove center wall plate cover from wall arm assembly (sold separately). WALL ARM ASSEMBLY CENTER WALL PLATE COVER Use wall arm assembly as a template to draw outline of accessory hole as shown below. Remove drywall inside cut outline.
- Page 4 Attach surge protector (B) to outlet box (C) and in-wall box (A) with four #6 x 3/8" screws (D). NOTE: Service of an electrical gang box and wiring shall be performed by a qualifi ed service personnel in accordance with the NEC. SURGE PROTECTOR SCREWS Insert in-wall box (A) through accessory hole in left or right position.
- Page 5 THIS PAGE INTENTIONALLY LEFT BLANK 5 of 8 ISSUED: 07-09-12 SHEET #: 120-9158-1...
- Page 6 THIS PAGE INTENTIONALLY LEFT BLANK 6 of 8 ISSUED: 07-09-12 SHEET #: 120-9158-1...
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK 7 of 8 ISSUED: 07-09-12 SHEET #: 120-9158-1...
- Page 8 ® connection with the sale of any Peerless product. This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state. Peerless-AV 2300 White Oak Circle Aurora, IL 60502 Email: tech@peerlessmounts.com Ph: (800) 865-2112 Fax: (800) 359-6500 www.peerless-av.com...
