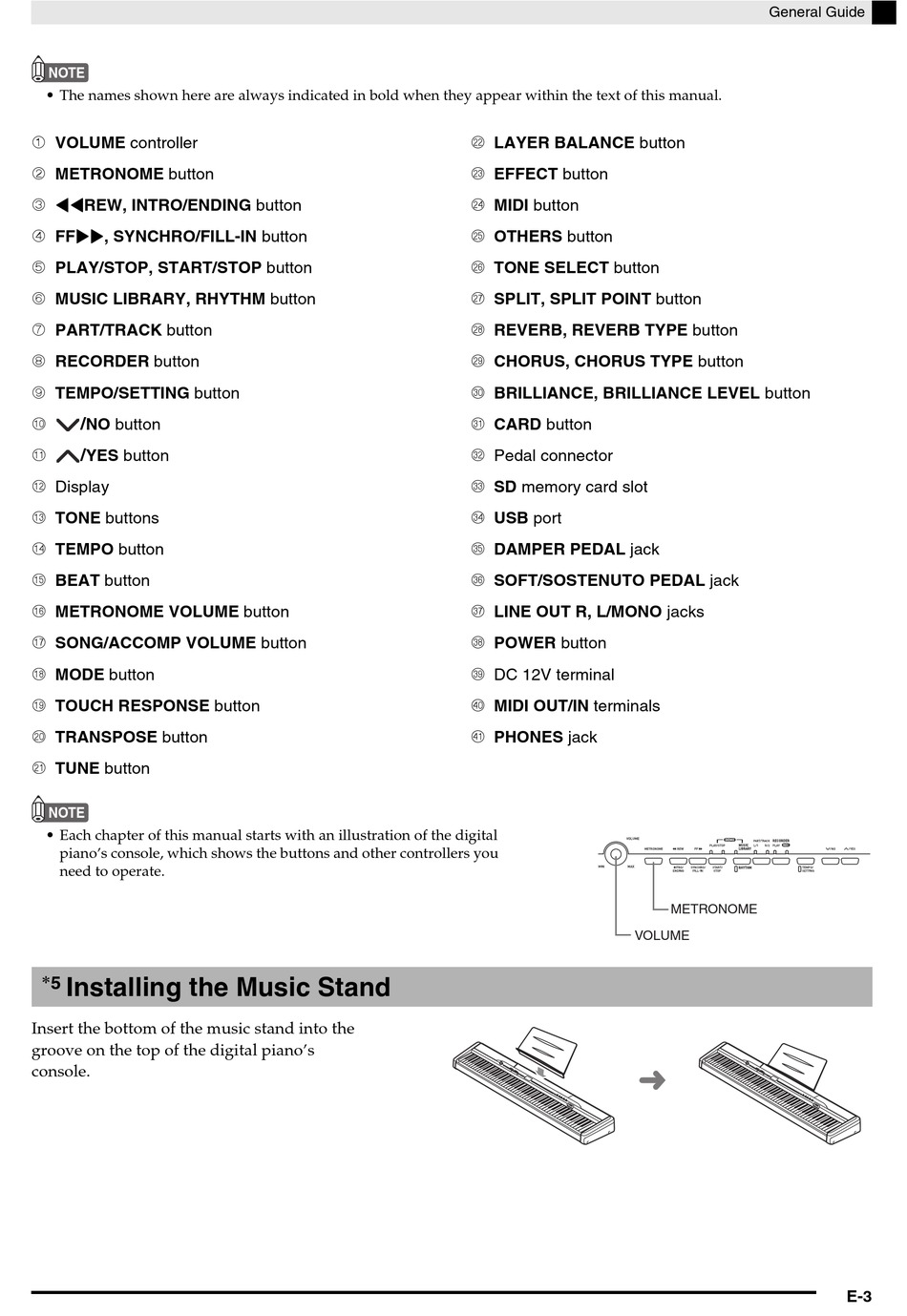

Installing The Music Stand - Casio Privia PX-200 User Manual

NOTE
• The names shown here are always indicated in bold when they appear within the text of this manual.
1 VOLUME controller
2 METRONOME button
3
REW, INTRO/ENDING button
4 FF , SYNCHRO/FILL-IN button
5 PLAY/STOP, START/STOP button
6 MUSIC LIBRARY, RHYTHM button
7 PART/TRACK button
8 RECORDER button
9 TEMPO/SETTING button
/
bk NO button
/
bl YES button
bm Display
bn TONE buttons
bo TEMPO button
bp BEAT button
bq METRONOME VOLUME button
br SONG/ACCOMP VOLUME button
bs MODE button
bt TOUCH RESPONSE button
ck TRANSPOSE button
cl TUNE button
NOTE
• Each chapter of this manual starts with an illustration of the digital
piano's console, which shows the buttons and other controllers you
need to operate.
*5

Installing the Music Stand

Insert the bottom of the music stand into the
groove on the top of the digital piano's
console.
cm LAYER BALANCE button
cn EFFECT button
co MIDI button
cp OTHERS button
cq TONE SELECT button
cr SPLIT, SPLIT POINT button
cs REVERB, REVERB TYPE button
ct CHORUS, CHORUS TYPE button
dk BRILLIANCE, BRILLIANCE LEVEL button
dl CARD button
dm Pedal connector
dn SD memory card slot
do USB port
dp DAMPER PEDAL jack
dq SOFT/SOSTENUTO PEDAL jack
dr LINE OUT R, L/MONO jacks
ds POWER button
dt DC 12V terminal
ek MIDI OUT/IN terminals
el PHONES jack
VOLUME
General Guide
METRONOME
E-3
