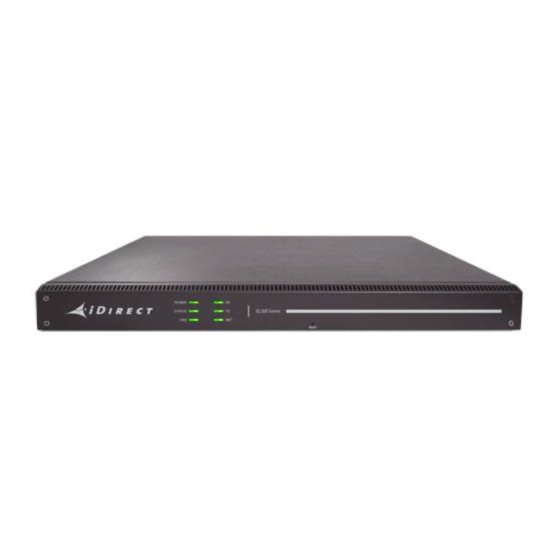

iDirect iQ200 and the iNetVu® 7000 Series Controller
iDirect iQ200
1-877-iNetVu6
www.c-comsat.com
Revision 1.0
June 17, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for iNetVu 7000 Series

Summary of Contents for iNetVu 7000 Series

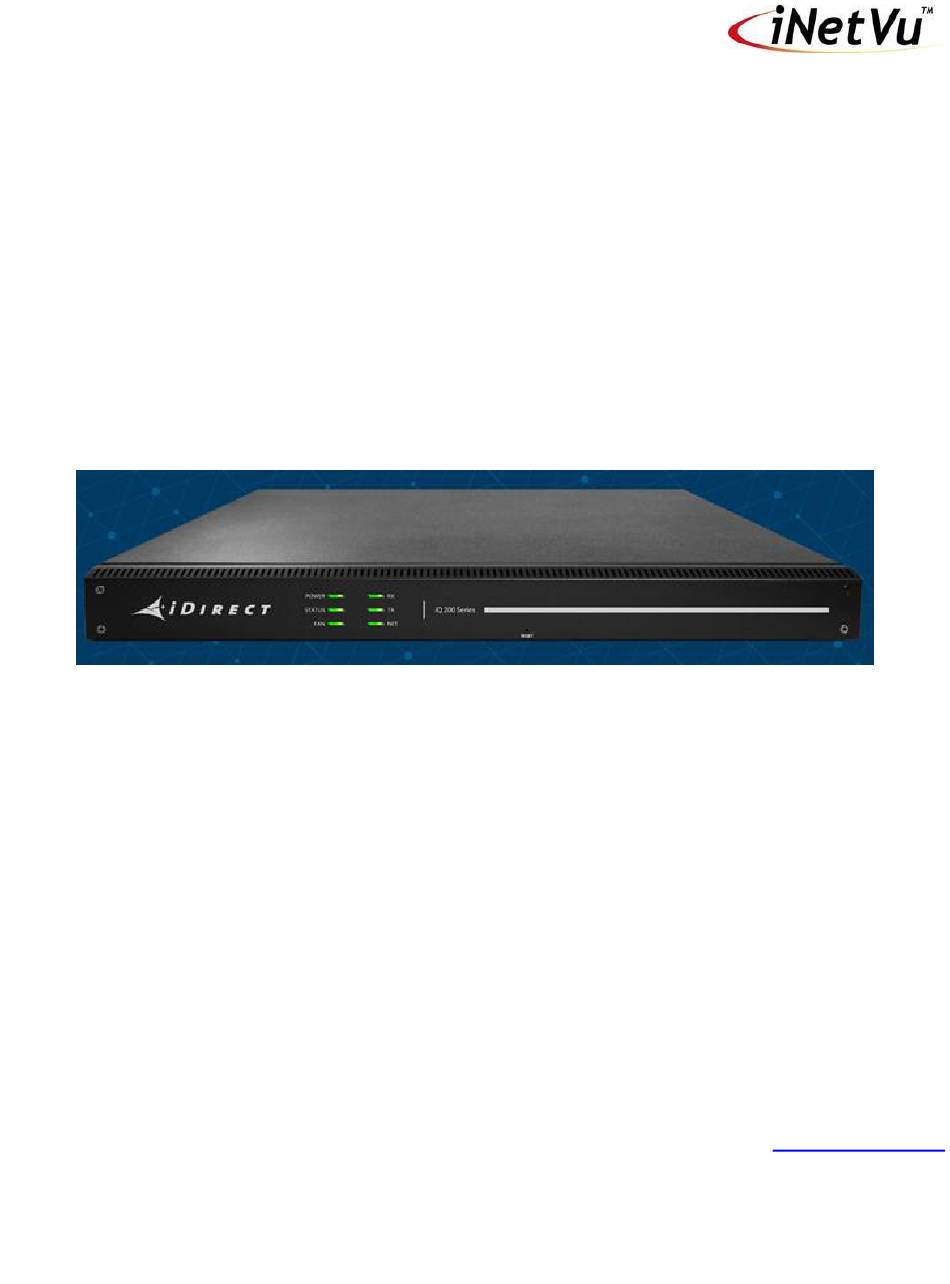

  • Page 1 7000 Series Controller iDirect iQ200 1-877-iNetVu6 www.c-comsat.com Revision 1.0 June 17, 2021...
  • Page 2 INETVU® MOBILE SYSTEM QUICK START – IDIRECT This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...

  • Page 3: Safety And Warning Information

    For your safety and protection, the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation.

  • Page 4: System Overview

    Transmission/Receive coaxial cables have all pre-wired. There is no need to re-calibrate the Mobile Platform unless directed by a C-Com Support Technician. It is critical that the iNetVu™ Controller stay together with the Mobile Platform it shipped with. You may refer to the iNetVu™ Shipping Checklist to confirm this.

  • Page 5: Pre-Configuration Check List

    INETVU® MOBILE SYSTEM QUICK START – IDIRECT Pre-Configuration Check List The following items should be completed/known prior to configuring the iNetVu® Mobile System. Contact the Network Operation Center (NOC) if any of the following items are unknown or if you are unfamiliar with them.
  • Page 6 INETVU® MOBILE SYSTEM QUICK START – IDIRECT System Wiring with iDirect Service Note: The following diagrams are a general reference only. An external splitter can be used in most scenarios. Please consult with your NOC or Service provider. Network Interface Connection – System Wiring...
  • Page 7 INETVU® MOBILE SYSTEM QUICK START – IDIRECT Modem Console Connection – System Wiring Diagram with Splitter Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Power Cable Network Cable Antenna Sensor Motor Cable Cable *Ground RX IN TX OUT...
  • Page 8 The 7000 Controller may be configured via the Software Application / Web Interface / LCD interface. Only one is necessary for complete configuration. iNetVu® Software Application (preferred method) First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for guidance in configuring your system. ▪...

  • Page 9: Tips And Recommendations

    Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc.
  • Page 10 INETVU® MOBILE SYSTEM QUICK START – IDIRECT 1.10 Software Setup and Initial Configuration Procedure with iDirect Service 1. If you are using the network interface to communicate with the 7000 Controller, set the PC/Notebook to the same network as the 7000 Controller.
  • Page 11 INETVU® MOBILE SYSTEM QUICK START – IDIRECT 5. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.

  • Page 12: Software Installation And Configuration

    3. Install both the FTDI USB Driver and USB Driver. Exit the Wizard when complete. 4. Now connect the Controller to the PC using the provided USB cable. 5. You can now run the iNetVu Mobile 7000 software from the shortcut on your desktop. C-COM Satellite Systems Inc.
  • Page 13 INETVU® MOBILE SYSTEM QUICK START – IDIRECT Updating the Firmware Run the iNetVu 7000 Mobile Software and click NO to proceed to the iNetVu Mobile 7000 software. Select “Do not show this message again” so this pop-up will not appear any longer.
  • Page 14 INETVU® MOBILE SYSTEM QUICK START – IDIRECT d) The iNetVu software should now automatically switch to the “Maintenance” Screen. Once on this page click “Load Firmware” Please stand by for 45-60 seconds allowing the process to finish. if the Load Firmware button is still grayed out, Exit the software and re-launch it.
  • Page 15 You may experience issues running the software on some versions of Windows. The software may also crash when downloading a log file. To resolve this issue please follow these steps. The iNetVu 7000 Software should run normally under these conditions.
  • Page 16 INETVU® MOBILE SYSTEM QUICK START – IDIRECT 1.12 iDirect Configuration for iQ200 Note: The controller will read the parameters from the iDirect Modem and automatically configure the Satellite Parameters. To use the auto configuration, Read Carrier From Modem feature must be selected.
