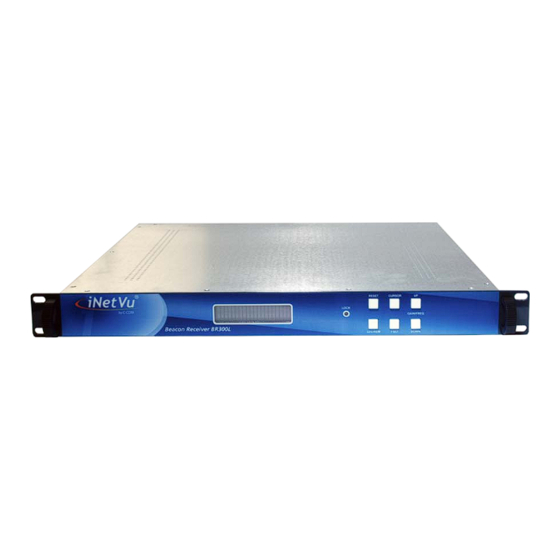

Beacon Receiver and the iNetVu® 7000 Series Controller
1-877-iNetVu6
www.c-comsat.com
Revision 3.0
May 25, 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iNetVu 7000 Series

Summary of Contents for iNetVu 7000 Series

  • Page 1 Beacon Receiver and the iNetVu® 7000 Series Controller 1-877-iNetVu6 www.c-comsat.com Revision 3.0 May 25, 2015...

  • Page 2: Safety And Warning Information

    For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation.

  • Page 3: System Overview

    Transmission/Receive coaxial cables have all pre-wired. There is no need to re-calibrate the Mobile Platform unless directed by a C-Com Support Technician. It is critical that the iNetVu™ Controller stay together with the Mobile Platform it shipped with. You may refer to the iNetVu™ Shipping Checklist to confirm this.

  • Page 4: Pre-Configuration Check List

    Transmit and Receive Polarization (Horizontal/Vertical) PLL LNB – 5KHz Accuracy or better is recommended Ensure the switch next to J1 on the back of the iNetVu® BR300L is set to RS-232. Ensure to attach the null modem adapter, to the 7000 Controller DB9 port.
  • Page 5 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L iNetVu® Mobile System Wiring Option 1: BR300L Stand Alone (modem free) - USB PC Connection Antenna Sensor TX Source Cable *Ground Power Pass protection Motor The Power to the LNB may be...
  • Page 6 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L Option 2: BR300L Stand Alone (modem free) – PC Network Connection Antenna Sensor TX Source Cable Power Pass *Ground protection Motor The Power to the Cable LNB may be sent from the Beacon Receiver.
  • Page 7 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L Option 3: BR300L with MODEM – PC USB Connection Motor Control Cable Sensor Cable RG6 Coaxial Cable Antenna Network Cable Sensor Motor Cable Cable USB Cable Power Cable LNB should be...
  • Page 8 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L Option 4: BR300L with MODEM – PC Network Connection Motor Control Cable Sensor Cable RG6 Coaxial Cable Antenna Network Cable Sensor Motor Cable Cable USB Cable Power Cable LNB should be...
  • Page 9 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L Software Setup and Initial Configuration Procedure with BR300L 1. Power ON your PC/Notebook, 7000 Controller and install the iNetVu® 7000 Mobile Software from the installation CD/USB Drive. For USB interface please install correct USB drivers and skip to step (8).
  • Page 10 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 6. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.

  • Page 11: Software Installation And Configuration

    Please Note: Do not connect the Controller via USB until the drivers and software have been installed 1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP/KB, run the iNetVu7000Setup.exe file. 2. Install the iNetVu 7000 Software and close when complete. C-COM Satellite Systems Inc. Page 11...
  • Page 12 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 3. Install the FTDI USB Drivers and iNetVu USB Drivers. Both are required. Click “Extract” Click “Next” Click “Finish” 4. Continue through the USB Driver Installation Wizard. Click “Next” Click “Finish”...
  • Page 13 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 5. Now that the drivers and software package has been installed, connect the iNetVu 7000 Controller via USB to your PC. 6. Windows XP users will have to follow the new hardware wizard and let windows automatically install the drivers.
  • Page 14 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 1.11 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
  • Page 15 4. You may wish to continue through the wizard to complete the controller configuration or verify the settings. You can switch to the iNetVu software at any time by right clicking and selecting Controls. C-COM Satellite Systems Inc.
  • Page 16 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 5. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
  • Page 17 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 6. Complete the Service Information section, set to your Service Type or NA if no modem will be used. Select the Interface method you wish to use and configure accordingly. Mouse over each selection for a detailed description.
  • Page 18 INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L 7. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each selection for a detailed description. Click Finish when complete. Satellite Parameters: Longitude: Satellite you will be searching on...
  • Page 19 8. Once completed you will be able to save changes by selecting Yes, or select No to return to the previous screen to make additional changes. 9. Restart the InetVu 7000 Software and proceed to the Configuration Screen. C-COM Satellite Systems Inc.
  • Page 20 COM Port Interface Interface: Beacon Baud Rate: 2400 11. Congratulations you have successfully configured the iNetVu 7000 Controller. *For more detailed information on the iNetVu® 7000 Controller Software, refer to the iNetVu® 7000 Controller Manual C-COM Satellite Systems Inc. Page 20...
