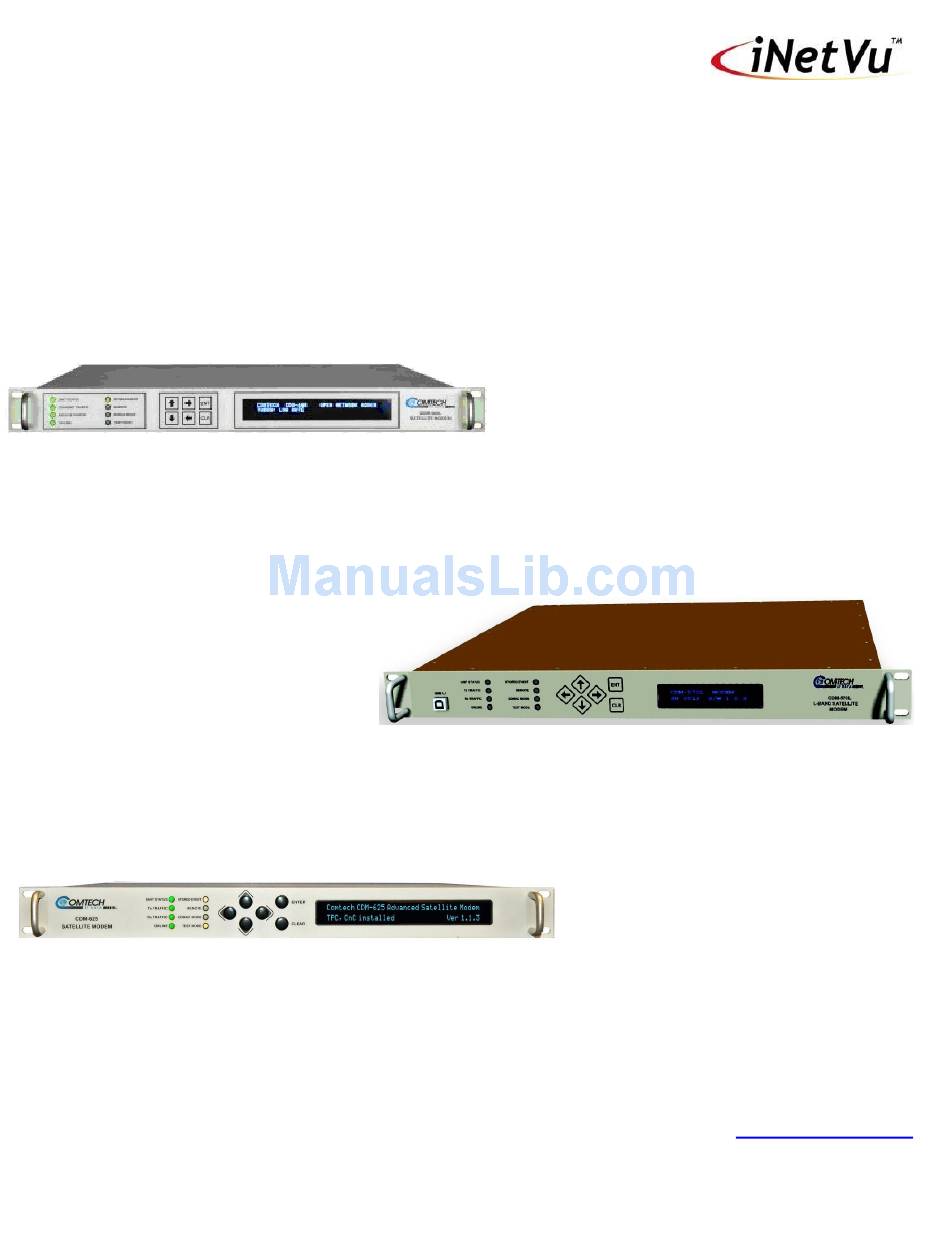

- Page 1 Comtech and the iNetVu® 7700 Series Controller CDM-600L CDM-570L CDM-625 1-877-iNetVu6 www.c-comsat.com Revision 1.0 August 13, 2015...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – COMTECH This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
-
Page 3: Safety And Warning Information
For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation. -
Page 4: System Overview
DSL do not exist. It provides two-way, high-speed data communications over satellite. iNetVu™ empowers mobile users with the ability to stop anywhere there is Satellite coverage and access Internet at broadband speeds. The iNetVu™ Mobile application consists of the iNetVu™ Mobile software 7710 software (for the 7700 Series Controller) iNetVu™... -
Page 5: Pre-Configuration Check List
INETVU® MOBILE SYSTEM QUICK START – COMTECH Pre-Configuration Check List Prior to installing IMS and configuring your system, verify that you are using the minimum requirements listed below. Note: Please contact C-COM if you require more information about modem compatibility as these may change without further notice. -
Page 6: Installation Overview
Connect to the ‘REMOTE’ Port using a NULL Modem Male to Female Serial Cable 3. Using the front panel interface on the CDM-600L Satellite Modem, press ENT to enter the Main Menu. Select CONFIGURATION, then REMOTE, then REMOTE again. - Page 7 If you are using a Serial connection with the CDM-600L / CDM-625 Satellite Modem: 1. Connect to the ‘REMOTE’ Port using a NULL MODEM Mail to Female Serial Cable. 2. Using the front panel interface on the CDM-600L Satellite Modem, press ENT to enter the Main Menu. Select CONFIGURATION, then REMOTE, then REMOTE.
- Page 8 INETVU® MOBILE SYSTEM QUICK START – COMTECH If you are using a Serial connection between the 7710 Controller and CDM-570/570L Satellite Modem: 1. Connect to the ‘Remote Control’ Port using a NULL MODEM – Mail to Female Serial Cable. 2. Ensure you have set the CDM-570/570L Remote Control to ‘SERIAL’ and 9600 bps.
- Page 9 Controller from a PC. Network Cable Use One Method Only System Wiring Diagram for CDM-570L / CDM-600L / CDM-625 for Serial Interface *Recommended for proper grounding of iNetVu ® systems. C-COM Satellite Systems Inc.
- Page 10 CiM-25 IP-Enabled Monitor & Control *Ground Cross Over protection Network Cable 24 VDC Input (option) 90 - 264 VAC System Wiring Diagram for CDM-600L for Telnet Interface *Recommended for proper grounding of iNetVu ® systems. C-COM Satellite Systems Inc. Page 10...
- Page 11 INETVU® MOBILE SYSTEM QUICK START – COMTECH 1.6.3 Comtech CDM-625 (Telnet) Antenna Motor Control & Sensor Cable RG6 Coaxial Cable Network Cable Power Cable USB Cable Sensor Serial Cable & Motor Cable CDM-625 RX IN Cross Over *Ground Network Cable...
- Page 12 The 7710 Controller may be configured via the Software Application / Web Interface / LCD interface. Only one is necessary for complete configuration. iNetVu® Software Application (preferred method) First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for guidance in configuring your system. ...
-
Page 13: Tips And Recommendations
Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc. - Page 14 INETVU® MOBILE SYSTEM QUICK START – COMTECH Software Setup and Initial Configuration Procedure with Comtech 1. If you are using the network interface to communicate with the 7710 Controller, set the PC/Notebook to the same network as the 7710 Controller.
-
Page 15: Software Installation
INETVU® MOBILE SYSTEM QUICK START – COMTECH 5. Set the 7710 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface. - Page 16 5. You have successfully installed the 7710 iNetVu Drivers and Software. Exit the setup wizard. 6. You can now run the iNetVu Mobile 7710 software from the shortcut on your desktop. C-COM Satellite Systems Inc.
-
Page 17: Inetvu Setup Wizard
INETVU® MOBILE SYSTEM QUICK START – COMTECH 1.11 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7710 software. - Page 18 INETVU® MOBILE SYSTEM QUICK START – COMTECH 3. Follow the on screen instructions to update both the 7710 controller and 7720 Remote Drive Module firmware. Once complete the wizard will resume. C-COM Satellite Systems Inc. Page 18...
- Page 19 INETVU® MOBILE SYSTEM QUICK START – COMTECH 4. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
- Page 20 Enter the Modem IP Address Password: comtech Target ID: This is the Target Address with what is set on the modem side allowing the modem signal to be displayed in the iNetVu software Controller TCP/IP Settings IP Address: Controller IP Address Subnet Mask:...
- Page 21 INETVU® MOBILE SYSTEM QUICK START – COMTECH 6. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each selection for a detailed description. Click Finish when complete. No changes are needed. Please click Finish to complete the setup.
- Page 22 8. Congratulations you have configured your iNetVu Controller. You can now find satellite by pressing the FIND SAT button from the front panel or by launching the iNetvu Software. *For more detailed information on the iNetVu® 7710 Controller Software, refer to the iNetVu® 7710 Controller Manual C-COM Satellite Systems Inc.
