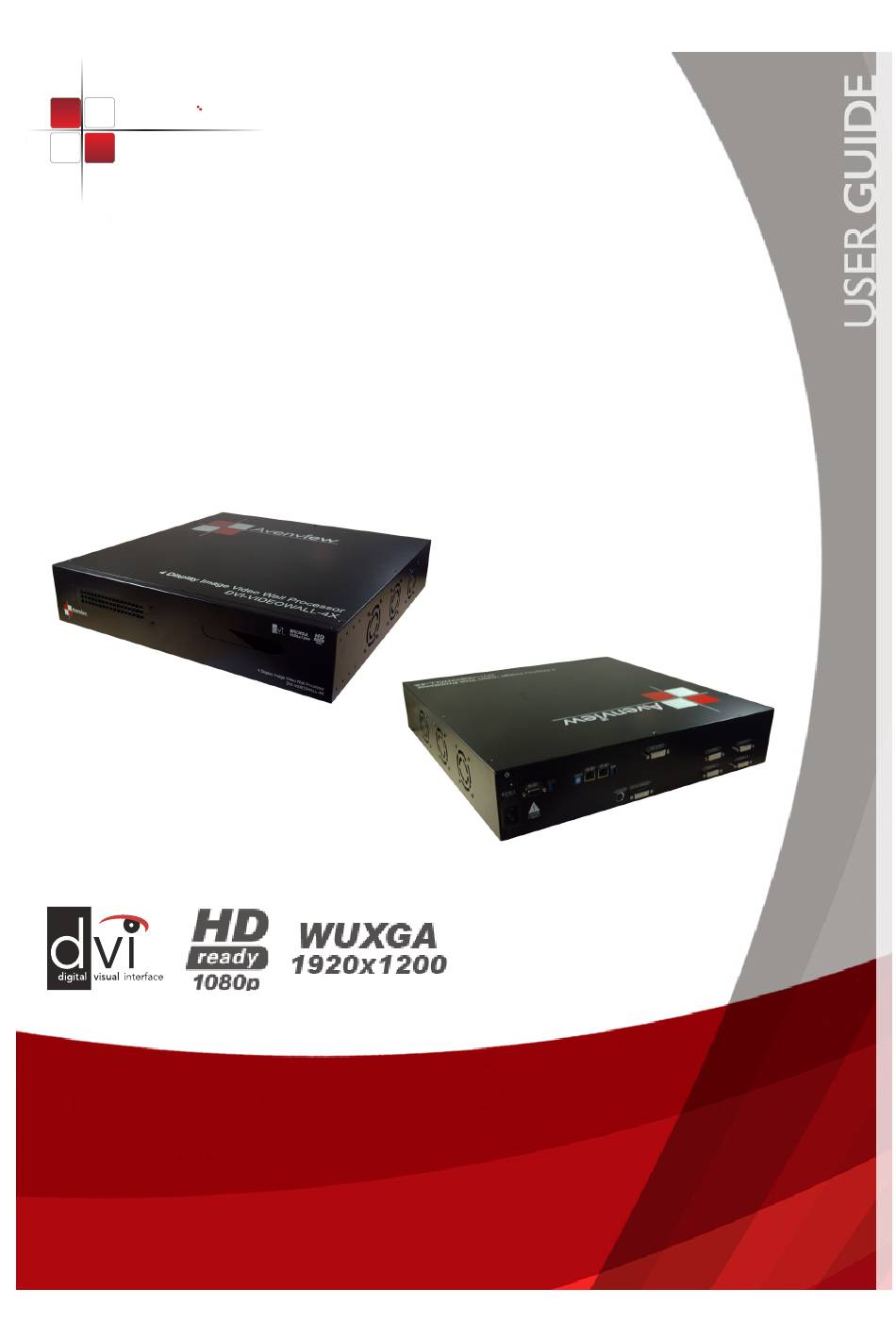

Avenview
4-Display Dual-View Cascadable
Videowall Processor
Model #: DVI-VIDEOWALL-4X
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no
representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the
right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied,
or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms
and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its
products of Avenview Inc. is strictly prohibited.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview DVI-VIDEOWALL-4X
Summary of Contents for Avenview DVI-VIDEOWALL-4X
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its...
-
Page 2: Table Of Contents
Table of Contents Section 1: Getting Started ........................1 Important Safeguards ......................1 Safety Instructions ........................1 Regulatory Notices Federal Communications Commission (FCC) ..........2 Introduction ..........................2 Package Contents ........................3 Before Installation ........................3 Inputs and outputs ........................3 Installation ..........................4 1.8.1 Safety Precautions ......................4 1.8.2 Installation Precautions ....................5 Section 2: Specifications .........................6 I/O Connectors ........................6... -
Page 3: Section 1: Getting Started
However, like all electronic equipments, the DVI-VIDEOWALL-4X should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Regulatory Notices Federal Communications Commission (Fcc)
Introduction Avenview DVI-VIDEOWALL-4X 4-Display Video Wall Processor is a powerful, most cost effective, and fully real time data/video processor for multiple flat panel displays or projectors. Thru DVI transmission, the quality of the outcome videos is guaranteed. The output display is grained up to 255 by 255 squares. -
Page 5: Package Contents
NTSC/PAL will be improved. Figure 2 shows the rear panel connectors for the video inputs of a DVI-VIDEOWALL-4X and Table 1 illustrates how you can connect video devices and display to DVI-VIDEOWALL-4X. -
Page 6: Installation
REAR PANEL * Default: Turn on the DVI-VIDEOWALL-4X then switch both two DIP switchers simultaneously up and down to factory default mode. * These IO ports support various resolutions from 640x480 up to 1920x1200, for more detail of the supported modes; please refer to the Appendix - Supported Resolution. -
Page 7: Installation Precautions
4. Connect a device equipped with DVI output (such as PC) to the DVI input connector of DVI- VIDEOWALL-4X. 5. Connect your computer with the DVI-VIDEOWALL-4X by a 9-pin RS-232 adapter and then install the software. 6. Power up the DVI-VIDEOWALL-4X. -
Page 8: Section 2: Specifications
YPbPr Component: 3 RCA (female) x1 800x600 to DVI-D DVI: 29-pin (female) x10 Outputs 1920x1200 pixels D-sub 9-pin (female) x1 Control RS-232 RJ-45 x2 AC 100-240V Power Supply Dimensions 440 x 438 x 86.5mm (L x W x H) Avenview www.avenview.com... -
Page 9: Supported Resolutions
(HDTV) 720p 1280x720 @60Hz VESA 1152x864 @75Hz VESA 1400x1050 @50Hz (HDTV) 1080p 1920x1080 @60Hz VESA 1280x768 @60Hz VESA 1400x1050 @60Hz VESA 640x480 @60Hz VESA 1280x1024 @50Hz VESA 1600x1200 @60Hz VESA 800x600 @60Hz VESA 1280x1024 @60Hz VESA 1920x1200 @50Hz VESA 1920x1200 @60Hz Avenview www.avenview.com... -
Page 10: Control Software Instructions
2.4.1 System Requirement and Precautions Control Software Instructions 1. Whenever power off DVI-VIDEOWALL-4X, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. 2. The DVI-VIDEOWALL-4X provides a software control program which runs under Microsoft Windows 98, 2000, XP through the interface of RS-232 serial control. -
Page 11: Software Operation
3. Firmware Ver.: To know the current firmware version of the device. 4. Color Balance: The color of the video can be automatically adjusted. But it works only when the source is analog and the mode is Full Screen. Avenview www.avenview.com... - Page 12 Input Resolution Setting the resolution of input 1. After 10 seconds, the new setting can be applied to DVI-VIDEOWALL-4X, but the input source and Display layout mode will return to default. 2. Please reset input source and Display layout mode...
- Page 13 Individual Output Channel There are totally 4 channel outputs for DVI-VIDEOWALL-4X, and each output can be independently setup to display any area of the input video. Each output can be with different output resolutions to adapt different combinations of monitors or projectors.
- Page 14 "Fine Tune by Pixel" offers similar approach to adjust the position and area of the output channel! The idea behind this section is the same to "Fine Tune by Percentage". The difference is that the adjustment is based on pixel! Users can therefore adjust the output channel area pixel wise. Avenview www.avenview.com...
- Page 15 Avenview www.avenview.com...
- Page 16 Avenview hardware, software, or other products and documentation provided herein. Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
