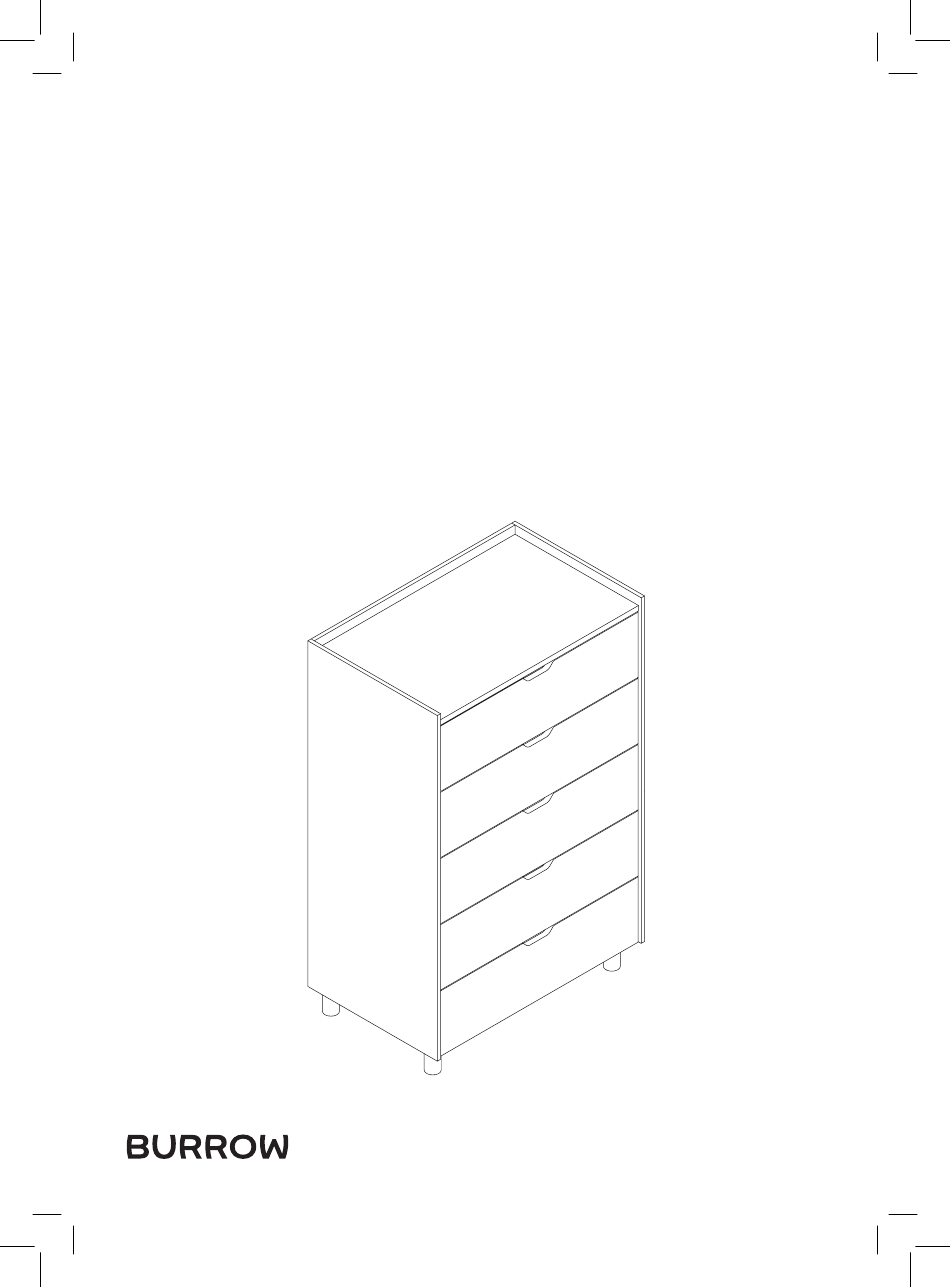

- Page 1 PROSPECT 5-DRAWER TALL DRESSER Assembly Instructions...
- Page 2 Everything you need is Thanks for bringing Burrow into your home. included We’ve worked hard to make your work setting up your new furniture as easy as possible. You’ll need an extra set of hands, so be sure to grab a friend before you get started.
- Page 3 To help you identify different but similar- Feel free to contact support@burrow.com looking pieces, we’ve created a system with any specific questions! of removable label stickers. Pieces with a green “A” sticker are on the right-hand side of the piece, if you’re facing the front of it.
- Page 4 Screw in two of the anti-tip brackets to the underside of the top panel, using the wood screws and the pilot holes as guides. Put the eye at the end of an anti-tip cable in assembly by fitting the straight side of the between the bracket.
- Page 5 Important: Take the back wall panel, and wall panel and make a mark where each lean it against the wall as close to the final screw will go. Then, hammer in the wall claw position of your dresser as possible. Flip to anchors at each of the marks, and use the the last page of this booklet, use the printed wall claw screws to attach brackets to...
- Page 6 Using two thumbscrews for each corner, screw the leg and plate assemblies into the four corners of the base panel, with the leg in the outermost corner. panel, and three on the edge of the wall. Flip the base panel so it’s resting on its Align these clips, and press them together four legs.
- Page 7 there are six clips: three on the edge of While someone holds the right wall upright, the base panel, and three on the edge of attach the left wall to the base panel by lining the wall. Align these clips, and press them up the yellow (B) stickers, with the “Top B”...
- Page 8 Attach the top panel to the side walls connection points. Push or pull the top panel by aligning the yellow (B) and green (A) towards the back of the dresser to lock stickers, and clicking down into place at all the clips.
- Page 9 Place the dresser in its final position, and attach the anti-tip cables to their counterparts on the wall, following the instructions from Step 2. Tip: If your floors are just a hair uneven, you can unscrew each leg a little bit to raise that section of the dresser to compensate.
- Page 10 Attach the left side of the drawer by lining up the yellow (B) stickers, making sure the groove at the bottom creates a continual line between the front and side. Slide the base into the grooves on the sides and front of the drawer, making sure the side with the sticker will be on the bottom of the drawer.
- Page 11 Finally, attach the back of the drawer by lining up the yellow (B) and green (A) stickers with the stickers on the drawer sides, making sure the groove at the bottom creates a continual line between the back and sides. Repeat steps 12 through 15 for all five drawers.
- Page 12 Pull out the bottom-most drawer tracks from pulling the trigger inward. The pins should the dresser as far as they’ll go. Disengage be flush with the inside of the track before the orange pin at the front of each track by placing the drawer.
- Page 13 If Kondo your closet and start using your new the drawer isn’t shutting fully, or seems Prospect Dresser. Be sure to tag @burrow on misaligned, make sure all connection pins/ Instagram and use the hashtag #myburrow to inserts between the drawer and the tracks are share your setup with us.
- Page 14 Anti-tip hardware template The holes along the top edge of the back your wall, and using the printed ruler to the wall panel allow the anti-tip hardware to right, mark two spots on your wall for each connect from the inside of the dresser to bracket, as indicated.
-
Page 15: Measurement Tool
You can set the back wall panel aside after that, and return to step 3 to continue assembling your dresser. Measurement tool Mark a spot on the wall here, for the top screw Mark a spot on the wall here, for the bottom screw Align center of hole here... - Page 16 Need a hand? Send an email to support@burrow.com or text us at (224) 628-7769 and our world-class support team will help you sort things out.
