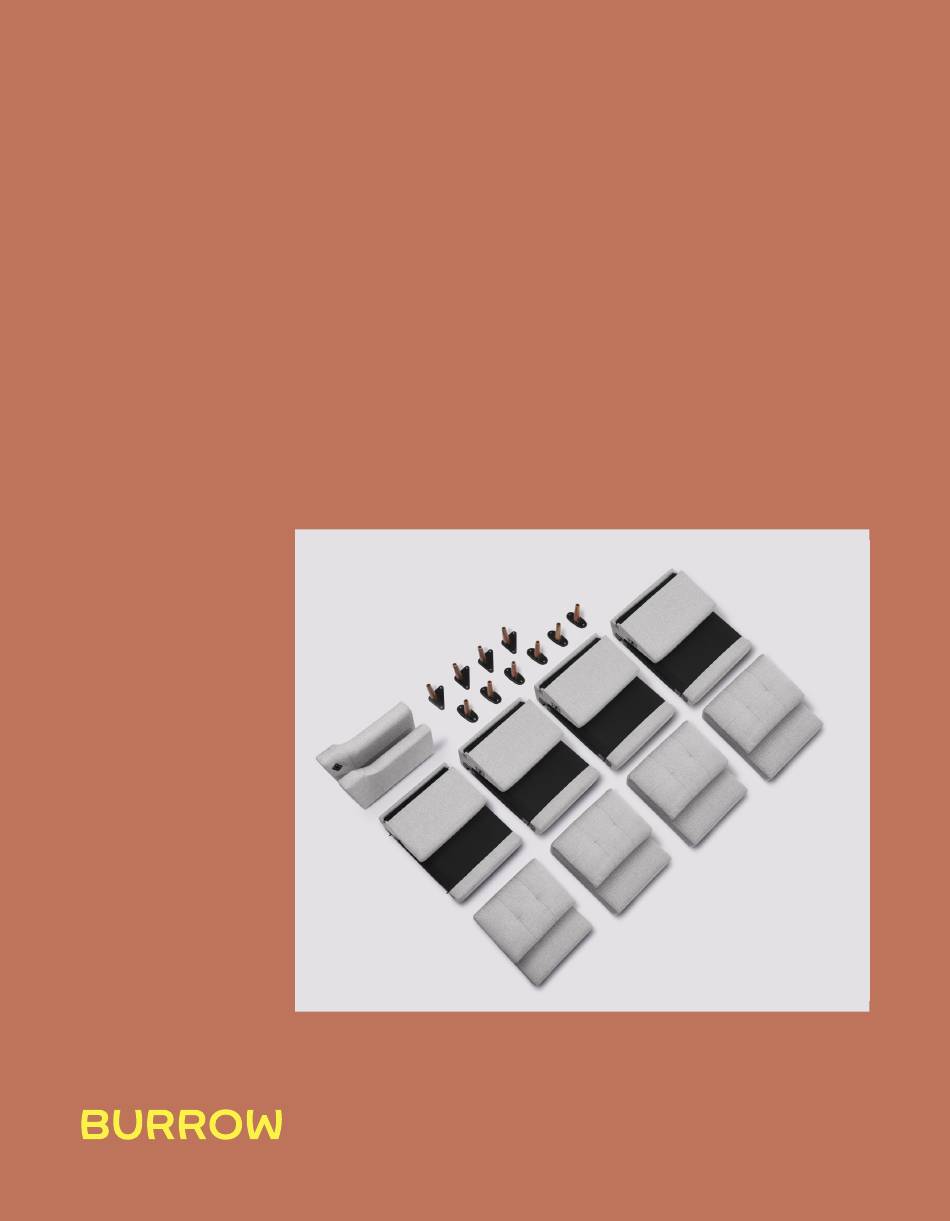

- Page 1 KING SOFA...
-
Page 2: Get Ready
Get ready... - Page 3 very little.
- Page 4 20 x Thumb Screws 1 x USB Power Plug 4 x Seat Boxes each containining: 1 x Seat Module 1 x Seat Cushion 1 x Back Cushion Need help? Check out burrow.com/assembly for helpful videos or give us a call at 833-328-7769.
- Page 6 Pro tip Make sure the levers are open before trying to connect the modules. Open Closed Place the four (4) seat sections side by side, with the backrest on the floor and the black fabric facing up. Slide each seat together using the alignment pins and holes as a guide.
- Page 7 Once you have them aligned, close both of the latches between each seat section.
- Page 8 Push down to ensure that the seats are fully ‘Folded’ down and then ‘Unfold’ the seats into the open position, with the backrest still on the ground and the seats perpendicular to the ground.
- Page 9 Pro tip If the alignment pins aren’t sliding in to the holes, make sure the levers are open. Open Slide one arm in at a time using the alignment pins and holes as a guide.
- Page 10 Close the levers in between the armrests and each backrest, until the lever is close to flush with the backrest.
- Page 11 Connect the arms by closing the latches, close the bottom latch first then the top latch on the King Sofa, the same way you connected the seat sections.
- Page 12 Securely attach the legs to the bottom of the King Sofa with the included thumbscrews; make sure they’re tightened. The corner legs should be angled outward, as shown in the image above.
- Page 13 To use the built-in USB chargers, unclip the cord from the bottom of the right armrest, plug the included power cord into it, and plug that into a wall outlet.
- Page 14 Gently place your King Sofa in the upright position. It’s best to have two people lift the piece — one at each end — and place it on its legs.
- Page 15 Place the cushions — found in the same box as the seats — on your King Sofa. The larger square cushions go on the seat, and the smaller rectangular cushions are for the backrest. Congratulations! That’s it. Now you can go back to your...
- Page 16 burrow.com...
