Summary of Contents for Conquip Trench Box

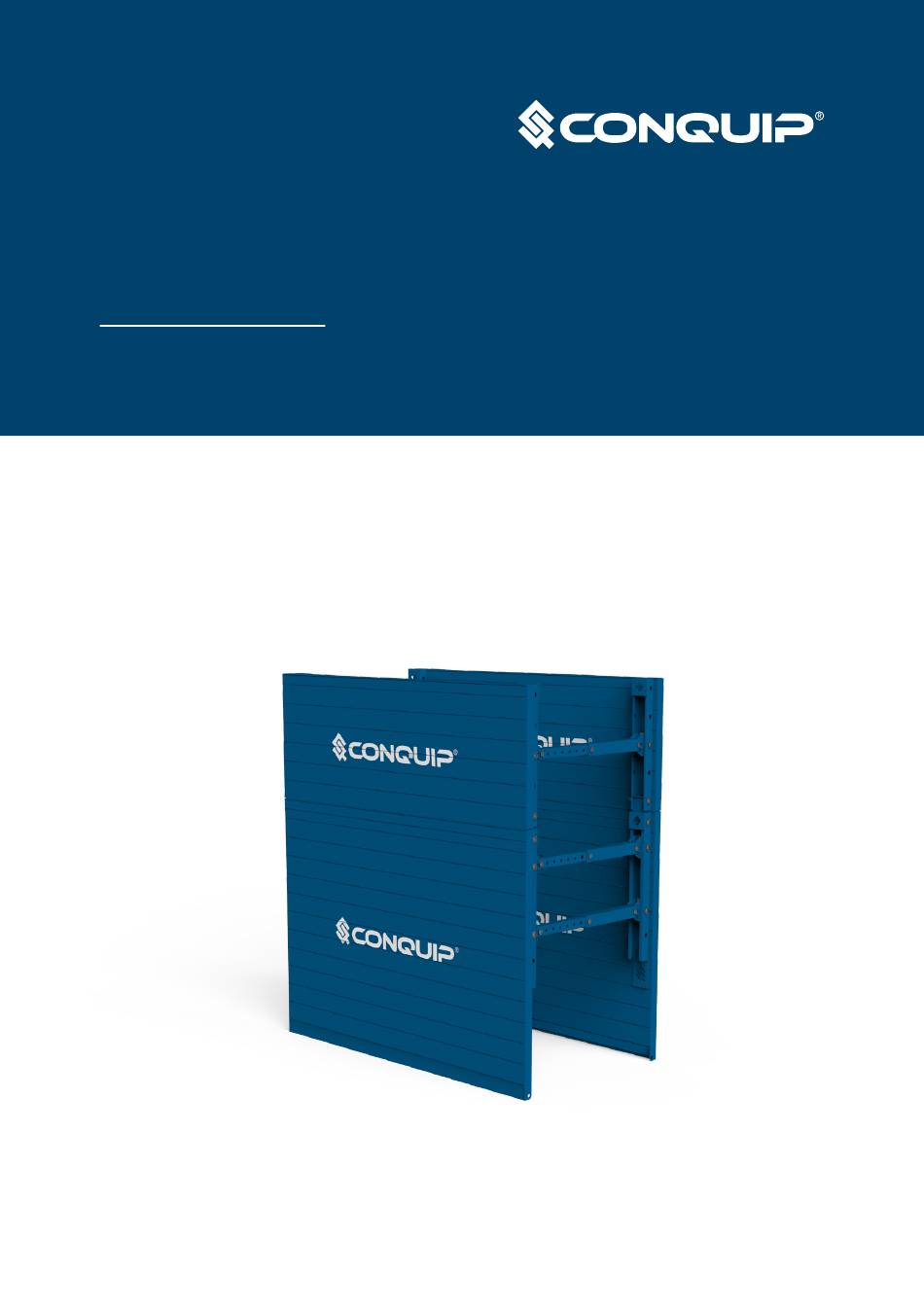

  • Page 1 User Guide Trench Box...

  • Page 2: Product Information

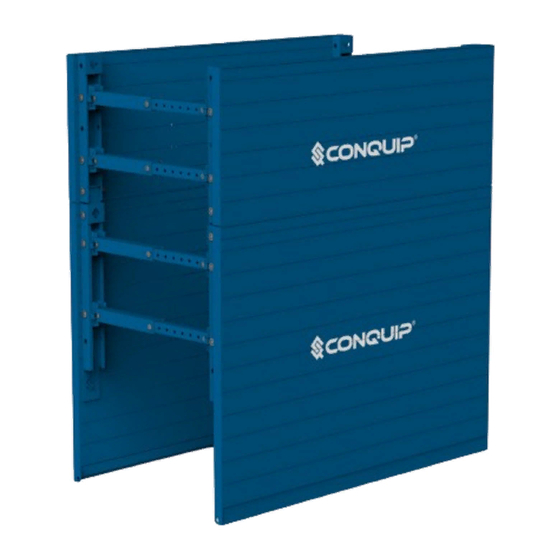

    Product Information Overview The Conquip 3.5m Trench Box is a simple to assemble, two sided trench lining support system designed to be installed by an excavator using the ‘dig and push’ technique, or by simply carrying out the excavation and then lowering each box into place.

  • Page 3: Specification

    External Length Internal Length TL101-00003 2560mm 3500mm 3100mm TL101-00004 1310mm 3500mm 3100mm Working Width Product Code Maximum Weight Limit State Design Load (Min - Max) TL101-00003 565mm-2465mm 2498kg 54.86 kN/m TL101-00004 565mm-2465mm 1388kg 54.86 kN/m User Guide - Trench Box...

  • Page 4: Parts Diagram

    Parts Diagram Parts Diagram Trench Base Box Trench Extension Box NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries. Item Number Description Quantity NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries.

  • Page 5: Usage Instructions

    4. Lower the pre-assembled struts onto the rocker assemblies securing the struts to the panel brackets using pins and R-clips. 9. Connect the lifting sling to the top lifting points on the Trench Box and lift the box to the upright working position 5.

  • Page 6: Important Installation Notes

    1m above ground level before adding an extension box to act as a safety barrier. 9. Attach using pins and R-clips. Only once the extension box is secured can the lifting chains be removed. User Guide - Trench Box...
  • Page 7 11. Attach Conquip Edge Protection panels to the Trench Box. 12. Complete the final ‘dig and push’ until the top of the Trench Box is at ground level. Ensure the force is applied to the edge of the box panels, not the Edge Protection panels.
  • Page 8 11. Slowly lift and move the extension box away from the excavation. 16. Connect a lifting sling to the top lifting points of the base box and lower it on 12. Wind loading can cause instability if boxes are left upright. Conquip its side to prevent wind loading.

  • Page 9: Safety Instructions

    Your risk assessment will determine the correct Personal Protective Equipment (PPE) for the task you are doing. You must use it. Conquip recommends that you should wear: • This equipment weighs more than 25kg. Do not lift or manhandle without machine assistance.
  • Page 10 If any third-party modifications or alterations, involving drilling, welding, cutting or distortion of materials in any form, are to be carried out on the product, Conquip Engineering Group must provide full written approval prior to the work being carried out.

  • Page 11: Important Notes

    Important Notes • This User Guide is for this Conquip product only. • Any movements of the product must be thoroughly planned before the work commences to identify potential hazards and assess risk. • All personnel involved in lifting and transportation of this product must have read this User Guide and must be properly briefed.
