Summary of Contents for Conquip Trench Box
- Page 1 User Guide Trench Box...
-
Page 2: Specification

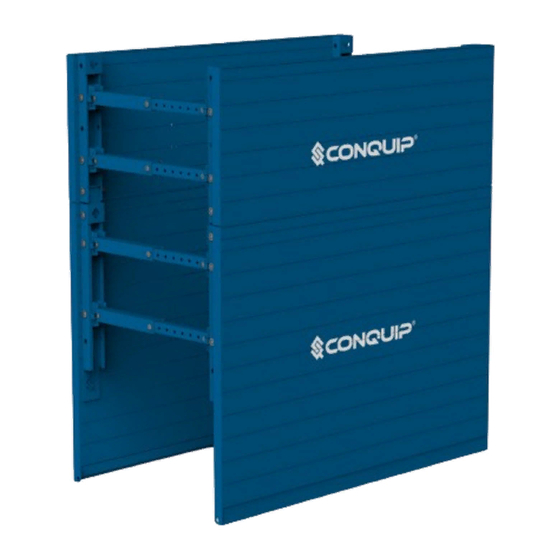

Product Information Overview The Conquip 3.5m Trench Box is a simple to assemble, two sided trench lining support system designed to be installed by an excavator using the ‘dig and push’ technique, or by simply carrying out the excavation and then lowering each box into place. -
Page 3: Parts Diagram
Trench Extension Box NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries. NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries. -
Page 4: Usage Instructions
8. Connect the two free legs of the lifting sling to the upper lifting points of the other panel before lifting the box into the trench. User Guide - Trench Box... - Page 5 3. If extension boxes have been used, these should be disconnected as the joint becomes clear of the ground and then lifted clear before reconnecting the sling to the Base Box and continuing the extraction. User Guide - Trench Box...
-
Page 6: Safety Instructions
Your risk assessment will determine the correct Personal Protective Equipment (PPE) for the task you are doing. You must use it. Conquip recommends that you should wear: • This equipment weighs more than 25kg. Do not lift or manhandle without machine assistance. - Page 7 If any third-party modifications or alterations, involving drilling, welding, cutting or distortion of materials in any form, are to be carried out on the product, Conquip Engineering Group must provide full written approval prior to the work being carried out.
-
Page 8: Ec Declaration Of Conformity
In accordance with EN ISO 17050-1:2004 Declaration: As defined by the Machinery Directive 2006/42/EC and subsequent amendments We, CONQUIP ENGINEERING GROUP, herewith declare that the following indicated equipment meets the fundamental health and safety requirements concerning the EU guide line(s), due to their design and manufacture. -
Page 9: Important Notes
Important Notes • This User Guide is for this Conquip product only. • Any movements of the product must be thoroughly planned before the work commences to identify potential hazards and assess risk. • All personnel involved in lifting and transportation of this product must have read this User Guide and must be properly briefed.
