Larry vs Harry Damper Attachment Manual

Download this manual

Damper Kit

Attachment Manual

Need help?

Do you have a question about the Damper and is the answer not in the manual?

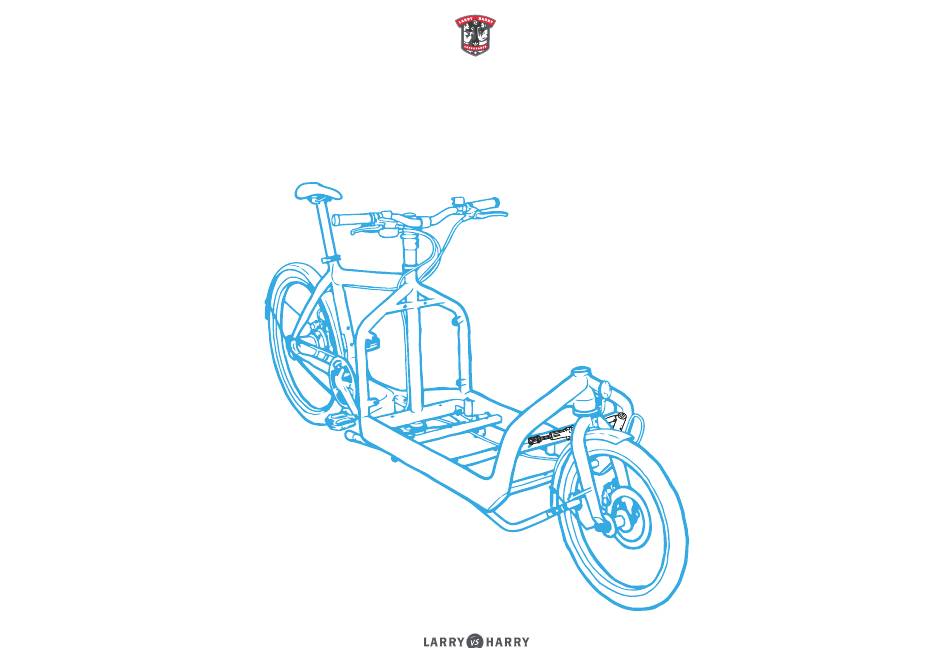

Page 1 Damper Kit Attachment Manual...
Page 2: Before You Start
Before you start Tools you need Things you need before attaching the Damper Kit Find your tools and get ready! 10mm Grease Hex/Allen Key Wrench/Spanner (metal on metal) Your favourite Bullitt If you have the Honeycomb Board or Sidepanel Kit...
Page 3: What's In The Box
Components What’s in the box? The Damper 4 Bolts M8x35 M8x45 M6x50 M6x55 Use this one, if you Use this one, if you Use this one, if you Use this one, if you DO NOT use the DO use the...
Page 4 Step 1 A small tip before attaching the Damper Kit If you have mounted any other accessories -other than the Honeycomb Board- these needs to be dismounted ﬁrst! First, remove the reﬂector and/ Remove the bolts and lift up or front light. The Original Bullitt the mudguard a bit.
Page 5 Step 2 Placing and attachment of the Damper Kit Damper bracket Resistance 5-6 Nm Grease the bolt (C) or (D). Grease the bolt (A) or (B). Loosely tighten the bolt into Mount it from the back (possibly the Damper bracket with the through the Honeycomb Board) Allen Key.
Page 6 ﬁne to the right: Make sure the Resistance tune the distance between the Damper does not hit the front wheel and the front fork so they fork legs. Adjust the Bracket do not touch.
