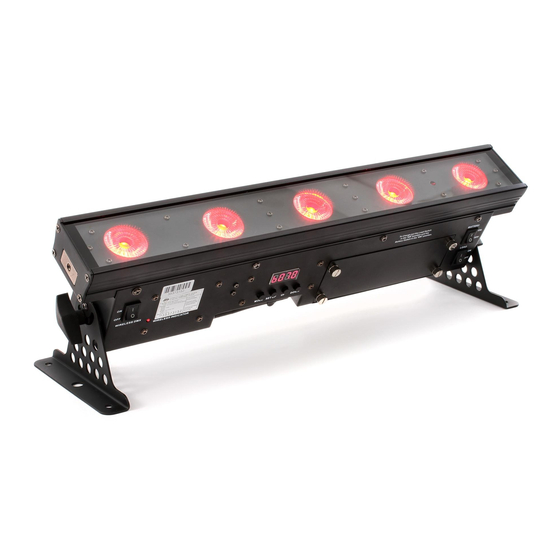

ADJ WIFLY BAR QA5 User Manual

Hide thumbs Also See for WIFLY BAR QA5:
Table of Contents

Advertisement

Quick Links

Download this manual
WIFLY BAR QA5
User Manual
Revised 04/20/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIFLY BAR QA5 and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ WIFLY BAR QA5

Summary of Contents for ADJ WIFLY BAR QA5

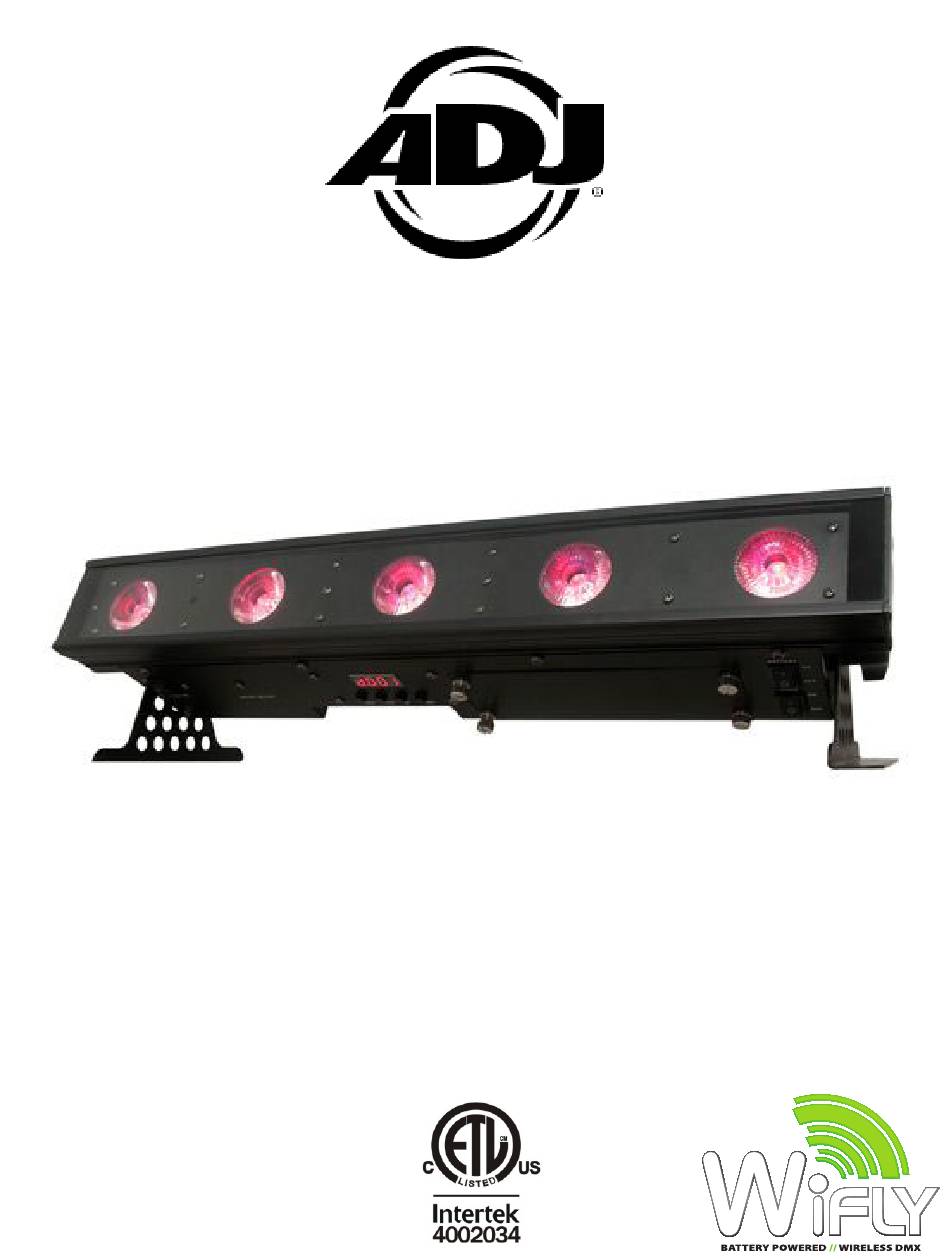

  • Page 1 WIFLY BAR QA5 User Manual Revised 04/20/2022...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
  • Page 3 INTRODUCTION Unpacking: Thank you for purchasing the WiFly Bar QA5 by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your fixture for any damage and be sure that all accessories necessary to operate the unit have arrived intact.

  • Page 4: Warranty

    WARRANTY A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 5: Warranty Registration

    3-Pin DMX Connection • 6 DMX Channel Modes: 4-, 6-, 7-, 8-, 9-, & 22-Channel Mode • Built-In ADJ WiFly TransCeiver Wireless DMX • ADJ RFC compatiable (Not Included) Power Cord Daisy Chain (see Power Cord Daisy Chain section of this manual) •...

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or onto your unit. • Do not attempt to operate this unit if the power cord has been frayed or broken. •...

  • Page 7: Battery Precautions

    Never soak, submerge, or drop the batteries in liquids of any kind, including but not limited to water, seawater, or various beverages. Battery replacement For battery replacement please contact ADJ customer support (800) 322-6337. Do not use a damaged battery Check the battery for damage that may have occurred during shipping. If any damage is found, including but not limited to damage to the plastic casing, deformation of the battery package, detec- tion of an electrolyte or chemical odor, or leakage of the electrolyte gel, DO NOT use the battery.
  • Page 8 BATTERY PRECAUTIONS Battery storage The battery should be stored at room temperature, with a charge of at least 50%. During long periods of storage, it is recommended that the battery be charged every 6 months. Doing so will prolong the life of the battery, and will also make sure that the battery charge does not fall below the 30% mark.
  • Page 9 SET UP Power Supply: This device contains an automatic voltage switch, which will automatically sense the voltage when it is plugged into the power source. With this switch, there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere. DMX-512: DMX is short for Digital Multiplex.
  • Page 10 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. Termination reduces signal errors and avoids signal transmission problems and interference.

  • Page 11: System Menu

    SYSTEM MENU Address d001 - d512 Set DMX address Ch04 Ch06 Ch07 Channels Select DMX channel mode Ch08 Ch09 DMX MODE Ch22 Unit defaults to blackout when DMX signal lost or blac interrupted Unit holds last received state when DMX signal lost No DMX Mode Last or interrupted...
  • Page 12 SYSTEM MENU Adjust sound sensitivity, SU.00 is least sensitive, SOUND MODE Sensitivity select SU.00 - SU.31 SU.31 is most sensitive Adjust flash speed, FS.00 = off, FS.01 = slowest, Flash FS.00 - FS.15 FS.15 = fastest BATTERY Display remaining battery charge level, b--- means Battery remaining QUANTITY b---, b000 - b100...

  • Page 13: Power Cord Daisy Chain

    PRIMARY-SECONDARY CONFIGURATION This function will allows you to link units together to run in a primary-secondary configuration, where one unit will act as the controlling unit, and the other units will react to the controlling unit’s built-in programs. Any unit can act as a primary or as a secondary, but only one unit can be programmed to act as the primary.
  • Page 14 ADJ WiFly TransCeiver to use this function. Maximum range is 2500 feet (760 meters) with an open line of sight. NOTE: The ADJ RFC control must be set to OFF to use this function. Refer to the Operating Instructions section of this manual for details.

  • Page 15: Adj Rfc Operation

    The ADJ RFC remote (sold seperately) has many different functions and allows you to control your WiFly Par QA5 from long distance. The ADJ RFC remote can control your system from a dis- tance of up to 150 ft. To use the RFC you must first activate the fixtures receiver, as described in the Operating Instructions section of this manual.

  • Page 16: Dmx Traits

    DMX TRAITS CHANNEL DMX VALUES FUNCTIONS 22CH Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 Amber, 0% to 100% 000 - 255 Red 1, 0% to 100% 000 - 255 Green 1, 0% to 100% 000 - 255...
  • Page 17 DMX TRAITS CHANNEL DMX VALUES FUNCTION 22CH Strobing, Program Speed, and Sound Sensitiv- ity Adjustment 000 - 015 None 015 - 255 Strobing, slow to fast 000 - 255 Program Speed, slow to fast 000 - 255 Sound Sensitivity, least to most sensitive Mode Selection 000 - 051 Dimmer Mode...
  • Page 18 DMX TRAITS CHANNEL DMX VALUES FUNCTION 22CH Programs (continued) 236 - 245 Auto Run 246 - 255 Sound Active Color Macros and Programs Color Macros, see Color Macro Chart section of 000 - 255 this manual for info 000 - 024 Program 1 025 - 035 Program 2...
  • Page 19 DMX TRAITS NOTES ON DMX TRAITS: 7-Channel Mode: Channels 1, 2, 3, and 4 are disabled when Channel 5 is in use. 8-Channel Mode: • When Channel 7 is set between 000-051, Channels 1-4 will be used, and Channel 6 will control strobing.

  • Page 20: Dmx Values

    COLOR MACROS CHART COLOR INTENSITY COLOR NO. DMX VALUES GREEN BLUE AMBER Color1 (Off) 000 - 020 Color2 021 - 025 Color3 026 - 030 Color4 031 - 035 Color5 036 - 040 Color6 041 - 045 Color7 046 - 050 Color8 051 - 055 Color9...
  • Page 21 COLOR MACROS CHART COLOR INTENSITY COLOR NO. DMX VALUES GREEN BLUE AMBER Color34 181 - 185 Color35 186 - 190 Color36 191 - 195 Color37 196 - 200 Color38 201 - 205 Color39 206 - 210 Color40 211 - 215 Color41 216 - 220 Color42...

  • Page 22: Battery Status And Charging

    BATTERY STATUS AND CHARGING BATTERY STATUS: This function is used to check the remaining charge of the battery. Plug the fixture in and press the MODE button until “bXXX” is displayed. “XXX” represents an number between “000” and “100”, and indicates the remaining battery life percentage.

  • Page 23: Photometric Chart

    PHOTOMETRIC CHART DIMMER CURVE CHART Dimmer Dimmer Dimmer Dimmer 1 0 0 1 0 0 % % % % 1 0 0 1 0 0 5 0 5 0 5 0 5 0 % % % % 1 0 1 0 1 0 1 0 % % % % 0 0 0 0 t t t t ( ( ( ( m s...

  • Page 24: Battery Replacement

    BATTERY REPLACEMENT 1. Unscrew the four thumbscrews that hold the battery door in place. 2. Remove the battery door in order to gain access to the bat- tery. 3. Carefully extract the connector cables from the battery com- partment. 4. Remove the battery from the battery comparment, then care- fully disconnect the cables.

  • Page 25: Fuse Replacement

    FUSE REPLACEMENT Disconnect the unit from its power source, and remove the power cord from the unit. Locate the fuse holder inside the power socket, then insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one. Please note that one slot of the fuse holder is a holder for a spare fuse.

  • Page 26: Specifications

    ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands service@adjgroup.eu / www.americandj.eu...
