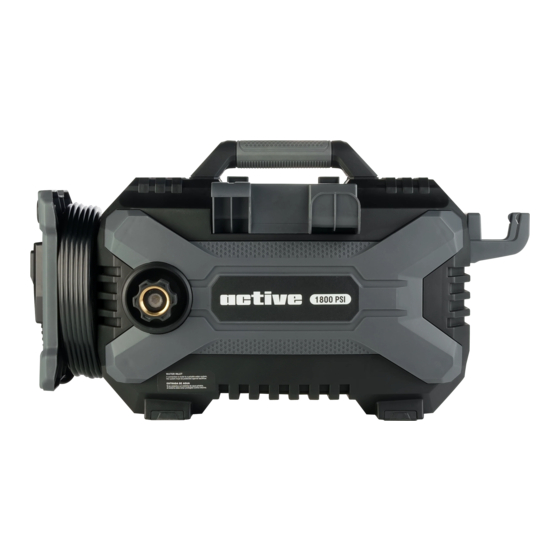

Instruction Manual
MODEL NO. VE56
VE52_2021_EN .indd 1
VE52_2021_EN .indd 1
1800 PSI
The contents of the Active 1800 in this box is
specifically built for OBSESSED GARAGE.
The provided unit is designed to suit accessory
upgrades provided by OBSESSED GARAGE through their
various pressure washer upgrade packages.
The stock accessories that usually come with the
Active VE52 are not included in this offering.
Congratulations on the purchase of your new
ACTIVE™ pressure washer. In order to ensure you have
the best possible experience, please read through the
following instructions.
If you require any help, please contact the customer
service department at: 1-844-777-4555
OG Version: 2021 V2
2.0 GPM
2021-05-17 5:15 PM
2021-05-17 5:15 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE56 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Active VE56

Summary of Contents for Active VE56

  • Page 1 Washer Instruction Manual 1800 PSI 2.0 GPM The contents of the Active 1800 in this box is MODEL NO. VE56 specifically built for OBSESSED GARAGE. The provided unit is designed to suit accessory upgrades provided by OBSESSED GARAGE through their various pressure washer upgrade packages.

  • Page 2: Table Of Contents

    Table of Contents 1. IMPORTANT PRECAUTIONS..................3 1.1 Definitions ..............................3 1.2 Safety Warnings ............................3 1.3 Intended Application ..........................5 2. SAFETY FEATURES AND ELECTRICAL INFORMATION ........... 5 2.1 Extension Cords ............................5 3. EXPLODED VIEW ......................6 4. PARTS LIST ........................6 5.

  • Page 3: Important Precautions

    Important Precautions 1. Important Precautions IMPORTANT, RETAIN FOR FUTURE 1.2 Safety Warnings REFERENCE AND READ CAREFULLY! DANGER Do not attempt to install or operate this device until you have read the safety instructions in this To reduce the risk of fire, electric shock, explosion manual.
  • Page 4 Important Precautions 1. Important Precautions (cont.) CAUTION — USE 1.2 Safety Warnings (cont.) • Learn how to stop the device and release the pressure quickly. Familiarize yourself with the controls. • Keep all connections dry and off the ground. • Avoid accidental starts.

  • Page 5: Intended Application

    CAUTION — USE A SUFFICIENT GAUGE regarding other uses, please refer to our website • Maximum cable length: 50’ (15 m). Only use 14 at www.active-jobsite.com or call us AWG rated extension cords. at 1-844-777-4555. • Only use extension cords that are intended for outdoor use.

  • Page 6: Exploded View

    Exploded View / Parts List 3. Exploded View 4. Parts List Item # Part Name Qty. Part # Hose holder kit (2pcs) 1 set VE20-000-0004 Cord bracket VE20-000-9003 Bottle holder VE10-000-0002 Gun holder VE20-000-9005 Cleaning needle Pre-attached on the manual Water filter Pre-attached on the machine * Cord bracket comes pre-attached on the machine.

  • Page 7: Assembly Instructions

    Assembly Instructions 5. Assembly Instructions 5.1 Surface Preparation 5.4 Assembly Before beginning any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture.
  • Page 8 Assembly Instructions 5. Assembly Instructions (cont.) 5.4 Assembly (cont.) Attach high-pressure hose to the gun and Attach the desired spray tip to the wand and the pump outlet (hand tighten only, do not the wand to the pressure washer gun. secure use any tape to secure connections).
  • Page 9 Assembly Instructions 5. Assembly Instructions (cont.) 5.4 Assembly (cont.) PURGING Push ON/OFF button, switch is set in ON Purge air by squeezing the trigger on the gun position, machine is ready to operate. until there is a steady stream of water. Push the ON/OFF button one more time to set switch in OFF position, machine is stopped.

  • Page 10: Operating Instructions

    Operating Instructions 6. Operating Instructions 6.3 Warnings 6.1 Shutting Down and Cleaning Up Turn off water supply and disconnect the CAUTION garden hose from the water inlet on the pressure washer. Failure to clean this product properly will cause the detergent injection system to become Pull the trigger to release any remaining clogged and inoperable.

  • Page 11: Winterizing And Long-Term Storage

    Winterizing and Long-Term Storage 7. Winterizing and Long-Term Storage 7.1 Optimum Winterizing Procedure 7.2 Quick Winterizing Procedure Winterizing your pressure washer will help If you are unable to perform the Optimum protect and prolong its life. We strongly Winterizing Procedure, you can still protect your recommend you follow the below steps using a pressure washer from winter damage by doing Pressure Washer Antifreeze before storing for the...

  • Page 12: Cleaning And Maintenance

    Cleaning and Maintenance / Technical Specifications 8. Cleaning and Maintenance 8.1 Connections 8.3 Water Filter Screen The connections on the pressure washer’s hoses, gun, and spray wand should be cleaned and lubricated with non-water soluble grease regularly. 8.2 Cleaning the Nozzles The pressure washer is equipped with a water inlet screen to protect the pump.

  • Page 13: Troubleshooting

    Troubleshooting 10. Troubleshooting Disconnect the device from the power source before making any repairs. Problem Cause Solution Push the ON/OFF button once to turn to the ON The device is in OFF mode. mode. The power cord is not plugged in. Plug in the power cord.
  • Page 14 Kink in the garden hose. Remove the kink in the garden hose. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT WWW.ACTIVE-JOBSITE.COM OR CALL CUSTOMER SERVICE FOR HELP AT 1-844-777-4555. VE52_2021_EN .indd 14 VE52_2021_EN .indd 14...

  • Page 15: Warranty

    If such a defect appears during the warranty period, upon presentation of proof of purchase and damage, Active Products will elect to either 1)Replace the product entirely or provide an appropriate part for replacement (no labor warranty) or 2) Refund the full purchase price to the owner (at Actives own discretion).
  • Page 16 VE52_2021_EN .indd 16 VE52_2021_EN .indd 16 2021-05-17 5:15 PM 2021-05-17 5:15 PM...

Table of Contents
