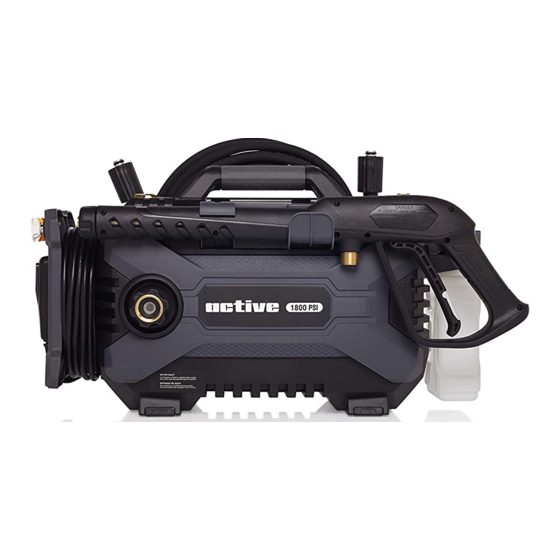

Instruction Manual
MODEL NO. VE52
1800 PSI
Congratulations on the purchase of your new
ACTIVE™ pressure washer. In order to ensure you
have the best possible experience, please read
through the following instructions.
If you require any help, please contact the
customer service department at: 1-844-777-4555
Version: 2021 V5
2.0 GPM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Active VE52

Summary of Contents for Active VE52

  • Page 1 1800 PSI 2.0 GPM Congratulations on the purchase of your new MODEL NO. VE52 ACTIVE™ pressure washer. In order to ensure you have the best possible experience, please read through the following instructions. If you require any help, please contact the...

  • Page 2: Table Of Contents

    Table of Contents 1. IMPORTANT PRECAUTIONS..................3 1.1 Definitions ..............................3 1.2 Safety Warnings ............................3 1.3 Intended Application ..........................5 2. SAFETY FEATURES AND ELECTRICAL INFORMATION ........... 5 2.1 Extension Cords ............................5 3. EXPLODED VIEW ......................6 4. PARTS LIST ........................6 5.

  • Page 3: Important Precautions

    Important Precautions 1. Important Precautions IMPORTANT, RETAIN FOR FUTURE 1.2 Safety Warnings REFERENCE AND READ CAREFULLY! DANGER Do not attempt to install or operate this device until you have read the safety instructions in this To reduce the risk of fire, electric shock, explosion manual.
  • Page 4 Important Precautions 1. Important Precautions (cont.) CAUTION — USE 1.2 Safety Warnings (cont.) • Learn how to stop the device and release the pressure quickly. Familiarize yourself with the controls. • Keep all connections dry and off the ground. • Avoid accidental starts.

  • Page 5: Intended Application

    CAUTION — USE A SUFFICIENT GAUGE regarding other uses, please refer to our website • Maximum cable length: 50’ (15 m). Only use 14 at www.active-jobsite.com or call us AWG rated extension cords. at 1-844-777-4555. • Only use extension cords that are intended for outdoor use.

  • Page 6: Exploded View

    Exploded View / Parts List 3. Exploded View 4. Parts List Item # Part Name Qty. Part # Item # Part Name Qty. Part # Quick-connect wand XE16-020-0002 Hose holder kit (2 pcs) 1 set VE20-000-0004 Gun assembly XE16-020-0003 Bottle holder VE20-000-9002 High-pressure hose XE30-010-0005...

  • Page 7: Assembly Instructions

    Assembly Instructions 5. Assembly Instructions 5.1 Surface Preparation 5.4 Assembly Before beginning any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture.
  • Page 8 Assembly Instructions 5. Assembly Instructions (cont.) 5.4 Assembly (cont.) Attach high-pressure hose to the gun and the pump outlet (hand tighten only, do not use any tape to secure connections). Ensure the hose adapter to the pressure washer pump outlet is a m22-15mm connection! 0º...
  • Page 9 Assembly Instructions 5. Assembly Instructions (cont.) 5.4 Assembly (cont.) Connect garden hose to the inlet adaptor. RESET TEST Plug the GFCI plug into an outlet. Firmly press and release the TEST button, then press and release the RESET button. The light on the GFCI should be illuminated.
  • Page 10 Assembly Instructions 5. Assembly Instructions (cont.) 5.4 Assembly (cont.) PURGING ON/OFF button Push ON/OFF button, switch is set in ON position, machine is ready to operate. Push the ON/OFF button one more time to set switch in OFF position, machine is stopped. Purge air by squeezing the trigger on the gun until there is a steady stream of water.

  • Page 11: Operating Instructions

    Operating Instructions 6. Operating Instructions 6.1 Working with Foam Blaster Working with a detergent ensures quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. Always spray detergent on a dry surface, do not pre-soak the area. Wetting the surface first dilutes the detergent and reduces its cleaning ability.

  • Page 12: Shutting Down And Cleaning Up

    Operating Instructions 6. Operating Instructions (cont.) 6.4 Warnings 6.2 Shutting Down and Cleaning Up Turn off water supply and disconnect the CAUTION garden hose from the water inlet on the pressure washer. Failure to clean this product properly will cause the detergent injection system to become Pull the trigger to release any remaining clogged and inoperable.

  • Page 13: Winterizing And Long-Term Storage

    Winterizing and Long-Term Storage 7. Winterizing and Long-Term Storage 7.1 Optimum Winterizing Procedure 7.2 Quick Winterizing Procedure Winterizing your pressure washer will help If you are unable to perform the Optimum protect and prolong its life. We strongly Winterizing Procedure, you can still protect your recommend you follow the below steps using a pressure washer from winter damage by doing Pressure Washer Antifreeze before storing for the...

  • Page 14: Cleaning And Maintenance

    Cleaning and Maintenance / Technical Specifications 8. Cleaning and Maintenance 8.1 Connections 8.3 Water Filter Screen The connections on the pressure washer’s hoses, gun, and spray wand should be cleaned and lubricated with non-water soluble grease regularly. 8.2 Cleaning the Nozzles The pressure washer is equipped with a water inlet screen to protect the pump.

  • Page 15: Troubleshooting

    Troubleshooting 10. Troubleshooting Disconnect the device from the power source before making any repairs. Problem Cause Solution Push the ON/OFF button once to turn to the ON The device is in OFF mode. mode. The power cord is not plugged in. Plug in the power cord.
  • Page 16 No water coming out of the nozzle. Kink in the garden hose. Remove the kink in the garden hose. IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT WWW.ACTIVE-JOBSITE.COM OR CALL CUSTOMER SERVICE FOR HELP AT 1-844-777-4555.

  • Page 17: Warranty

    Instructions. The warranty does not cover loss of use or other consequential damages arising from any of the above, nor does it cover repairs made or attempted by unauthorized persons. If you have further questions, please visit our website (www.active-jobsite.com) or call 1-844-777-4555.
  • Page 18 Note...
  • Page 19 Note...
