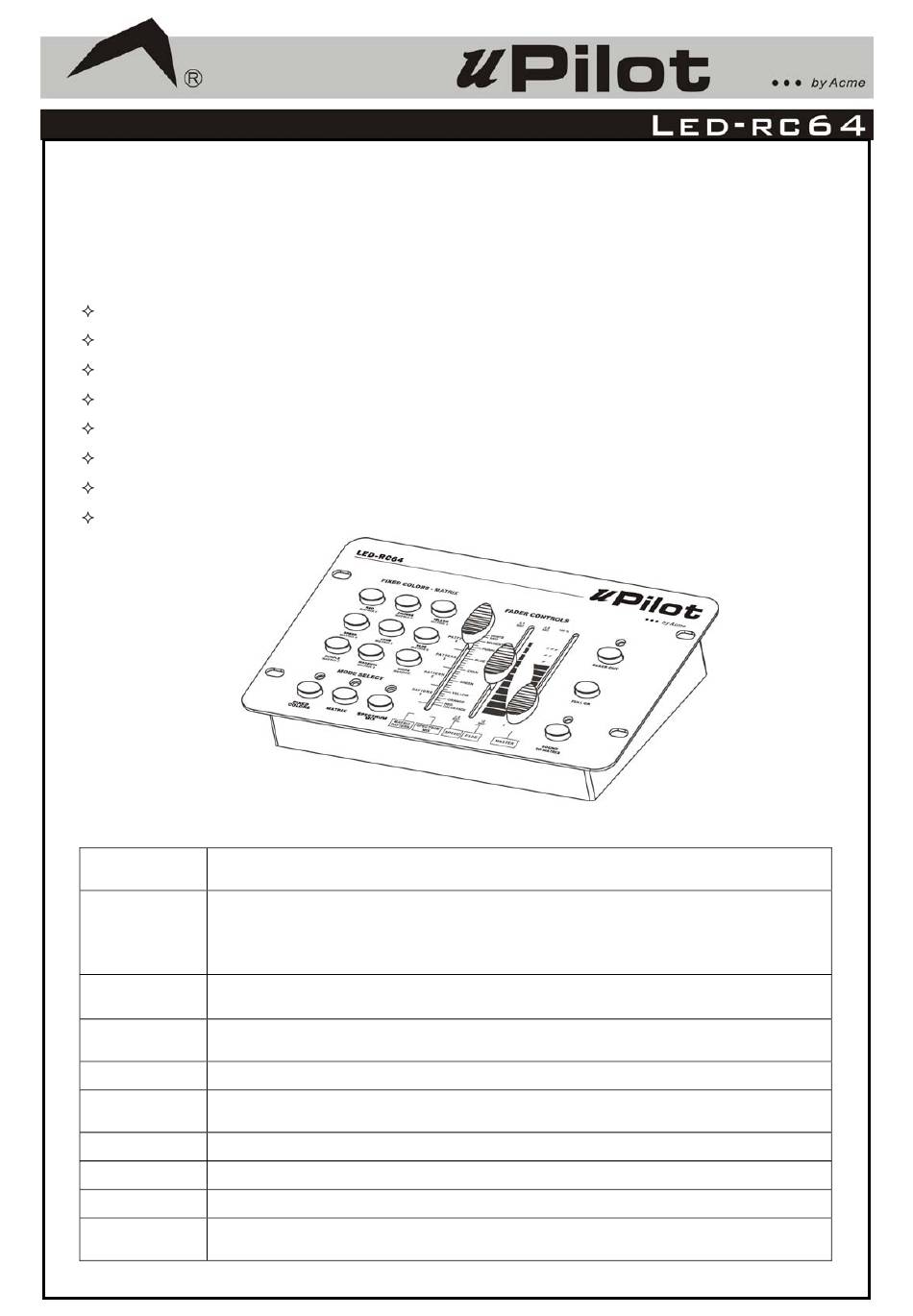

ACME uPilot LED-RC64 Manual

1. General Instructions

uPilot is a marvelous pre-programmed remote matrix controller for 8pcs of CP-208; and can control
up to 16 groups ( 8 x 2) of CP-208. With the easy access, great 32 pre-programmed "Matrix" chase,
the Color Panels can deliver eye catching effects that are perfect for stage, clubs, and various
background enhancement.
Fixed color mode: instant access to 9 fixed colors.
Matrix mode: 32 different 8 x8 matrix chases with manual speed control or triggered by music.
Spectrum mix: 32 different mix colors, including color fade.
Adjustable speed and dimmer with fader.
Blackout and full on functions.
Power Input: DC 9V 300mA min
Size: 210 x 134 x 53 mm
Weight: 1.2 kgs

Function Instructions:

Mode select Use to select Fixed Colors / Matrix / Spectrum mix mode
1. In Fixed Color mode, use to select color on Red /Orange / Yellow / Green /
Fixed color
/ matrix
2. In Matrix mode, use to select 32 matrix chases with matrix pattern fader.
Matrix pattern
In Matrix mode, use the fader to select 32 matrix chases with matrix buttons
fader
Spectrum Mix
Use to select 32 spectrum mix colors in Spectrum mix mode.
fader
Speed fader Use to adjust chase speed in the range of 0.1 to 2.5 seconds
Fade Time
Use to adjust fade time. Fade time is amount of one color to fade in or fade out
fader
Master fader Use to dimmer / shutter the fixture
Black out Blackout the fixture
Full on All lighting effect at once
Sound to
Use to receive audio signal for sound activated
chase
Cyan / Blue / Purple / Magenta /White
