ACME Koolmaster PP-32 User Manual

Acme controller user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

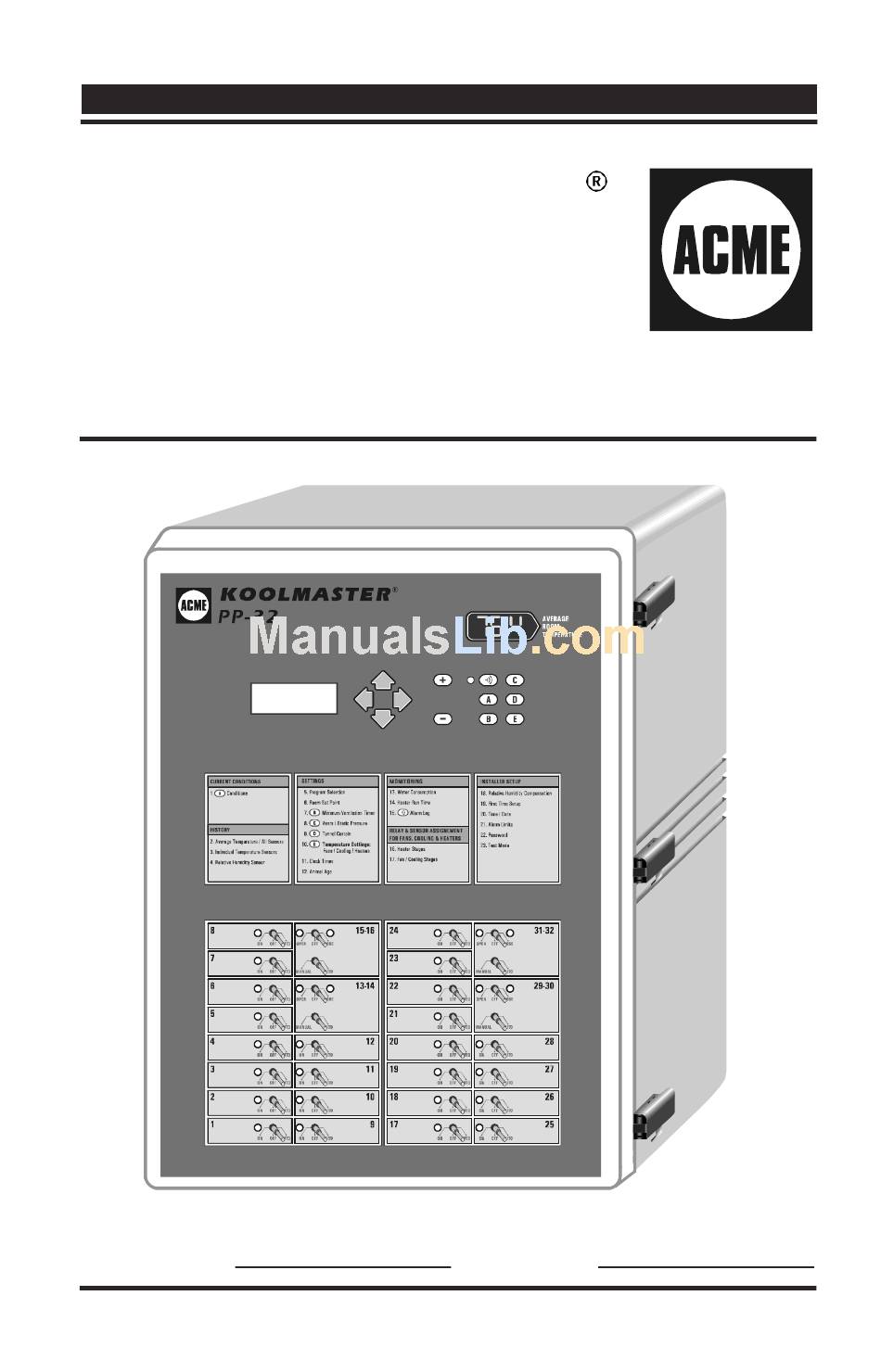

KOOLMASTER
PP-32
ENVIRONMENTAL
MANAGEMENT
CONTROLLER
SYSTEM
SERIAL NUMBER:
DATE:
Read this guide carefully before using the controller.
R01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Koolmaster PP-32 and is the answer not in the manual?

Questions and answers

Related Manuals for ACME Koolmaster PP-32

Summary of Contents for ACME Koolmaster PP-32

  • Page 1 KOOLMASTER PP-32 ENVIRONMENTAL MANAGEMENT CONTROLLER SYSTEM SERIAL NUMBER: DATE: Read this guide carefully before using the controller.
  • Page 2 NOTICE Every effort has been made to ensure that this manual is complete, accurate and up-to-date. The information contained in it is however subject to change without notice due to further developments.

  • Page 3: Table Of Contents

    5.6.4 Adjusting Static Pressure Hi and Lo Set Points ... 36 5.6.5 Adjusting Curtain's Timer Cycle ... 36 5.7 FAN STAGES SETTINGS ... 38 5.7.1 Adjusting Fan Stages' Start/Stop Temperatures ... 39 5.7.2 Adjusting Fans Stages' Timer ... 39 5.8 HEATER SETTINGS ... 41 KOOLMASTER PP-32 Page REV.01...
  • Page 4 5.14.6.4 Assigning Relays to the Tunnel Curtain ... 74 5.14.6.5 Assigning Relays to Clock Outputs ... 75 5.14.6.6 Assigning Relays to Auxiliary Outputs ... 75 5.14.6.7 Assigning Relays for the Lo Static Pressure Alarm ... 76 5.14.7 Calibrating the Water Counter ... 77 KOOLMASTER PP-32 REV.01...
  • Page 5 6. TECHNICAL SPECIFICATIONS ... 89 7. FACTORY SETTINGS ... 90 8. USING THE CONFIGURATION MODULE ... 91 8.1 LOADING A CONFIGURATION ... 91 8.2 SAVING A CONFIGURATION ... 92 9. INSTALLATION REPORT ... 93 10. INDEX ... 98 PP-32 KOOLMASTER PP-32 REV.01...

  • Page 6: Precautions

    ALWAYS REMAIN BETWEEN 32°F AND 104°F (0°C TO 40°C). To avoid exposing the controller to harmful gases or excessive humidity, it is preferable to install it in a corridor. DO NOT SPRAY WATER ON THE CONTROLLER KOOLMASTER PP-32 connect the thermostat). supply circuit. FOR CUSTOMER USE...

  • Page 7: Features

    These values are recorded for the current day and for the previous 60 days. ALARM MANAGEMENT Alarms are provided for high-low temperatures, defective sensors and other system failures. The controller keeps in memory the 10 most recent alarms. KOOLMASTER PP-32 REV.01...

  • Page 8: Humidity Compensation

    The controller can be connected to a computer, thus making it possible to centralize the management of information and diversify control strategies. TEST MODE A test mode allows you to simulate temperature changes and verify controller performance, as well as manually activate each output sequentially. KOOLMASTER PP-32 REV.01...

  • Page 9: Location Of The Controls

    3. LOCATION OF THE CONTROLS Front Panel LCD DISPLAY MAIN MENUS 32 ON/OFF RELAYS NAVIGATION BUTTONS ADJUSTMENT BUTTONS KOOLMASTER PP-32 DISPLAY ALARM STATUS LED SHORTCUT KEYS REV.01...
  • Page 10 LCD display. Use the adjustment buttons to change the value of a parameter. Pressing value. Shortcut Keys: These 6 buttons allow the user to step quickly to the special predefined functions on the display. KOOLMASTER PP-32 increases the value, pressing i n i i t n t a l...

  • Page 11: Mounting Instructions

    REGULATIONS. BE SURE POWER IS OFF BEFORE DOING ANY WIRING TO AVOID ELECTRICAL SHOCKS AND EQUIPMENT DAMAGE. WARNING HUMIDITY SENSOR (Refer to the main wiring diagram) STATIC PRESSURE SENSOR (Refer to the main wiring diagram) OUTSIDE T° SENSOR KOOLMASTER PP-32 LOCKING DEVICE REV.01...
  • Page 12 There are two types of alarms on the market. One type activates when current is cut off at its input, whereas the other activates when current is supplied at its input. For an alarm of the first type, use the NC KOOLMASTER PP-32 key to directly access this ALARM...
  • Page 13 If DWR-F-1A air inlet controllers are connected to the PP-32, use id numbers within the range 4-15. Id numbers 1,2 and 3 are reserved for another purpose. Refer to section 5.5.1.1 to set the proper ID numbers. terminal. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 14: Setting The Dip Switches

    2 switches at the same time. When the controller is shipped, all DIP switches are set to the OFF position. ALWAYS close the controller before applying power to it. WARNING KOOLMASTER PP-32 REV.01 10 11 12...

  • Page 15: Controller Setup

    Fan Stage: shows which fan stage is currently active. Program: shows the selected program. Fan On-Time sec: fans' on-time in minimum ventilation. Sensor 1-8: actual reading of each temperature sensor. Outside: actual outside temperature reading. RH Sensor: current humidity level in the room. KOOLMASTER PP-32 REV.01...

  • Page 16: Controller Programs

    Use the navigation buttons to select "5. Program Select" from the main menu then press the right-arrow key. The program that is currently in use is flashes on the display. Press the down-arrow key to select the " Temp Settings" display. KOOLMASTER PP-32 REV.01...
  • Page 17 Use the adjustment buttons to select the proper season (winter/ summer). The start and stop temperatures of heating and ventilation stages that are associ- ated with this seasons will be used. Press the left-arrow key to exit this menu. KOOLMASTER PP-32 REV.01...

  • Page 18: Adjusting The Room Set Point

    Press the down-arrow key and scroll the menu until "Curve stat" status flashes on the display. Press to turn off the temperature curve then follow the procedure above to adjust the set point. KOOLMASTER PP-32 REV.01 shortcut key...

  • Page 19: Minimum Ventilation

    On-Time cannot be greater than the cycle time. If vent doors are used, the On-Time is limited by the vent doors' pre-opening delay (see sec. 5.14.3). Select "7.Min. Ventilation" from the main menu using the naviga- tion buttons then press the right- arrow key. ON-TIME CYCLE-TIME KOOLMASTER PP-32 PP-32 REV.01...

  • Page 20: Adjusting Minimum Ventilation's Cycle Time

    Use the arrow keys to select the "2. Cycle Time" function. Press the right-arrow key. The current cycle time flashes on the display. Use the adjustment buttons to adjust the Cycle-Time to the desired value then press the left-arrow key to exit this menu. KOOLMASTER PP-32 REV.01...

  • Page 21: Inlet / Vent Door Settings

    5.5.1.1 Setting DWR-F-1A's ID numbers ID numbers must be assigned to each DWR-F-1A modules. This allows to establish the communication with the PP-32 control and the external modules. The following table gives the proper ID numbers for each DWR-F-1A module. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 22: Adjusting The Air Inlet Compensation

    Use the up or down-arrow key to select the desired inlet. Use the adjustment buttons to set the compensation to the proper value. Press the left-arrow key to exit this menu. KOOLMASTER PP-32 REV.01 ..

  • Page 23: Vent Door Settings

    LO SET POINT: VENT DOORS CLOSE IN TIMER CYCLE (CLOSE TIME/ OFF TIME) VENT DOORS STOP CLOSING PP-32 VENT DOORS STOP STATIC PRESSURE OPENING EXCEEDS HI SET POINT: VENT DOORS OPEN IN TIMER CYCLE (OPEN TIME/ OFF TIME) KOOLMASTER PP-32 TIME REV.01...
  • Page 24 (CLOSE AT) LO SET POINT 1 (CLOSE AT) Refer to the installation setup section to activate the second group of static pressure set points (see sec. 5.14.3). KOOLMASTER PP-32 FAN STAGE 5 FAN STAGE 5 STOP T° START T° REV.01...
  • Page 25 LO SET POINT 2 (CLOSE AT) Refer to the installation setup section to activate the second group of static pressure set points (see sec. 5.14.3). 5°F (2.8°C) 50°F 55°F (27.8°C) (30.6°C) (outside t° influence) KOOLMASTER PP-32 PP-32 OUTSIDE TEMPERATURE REV.01...

  • Page 26: Adjusting Static Pressure Set Points

    The open time ranges from 0 to 900 seconds. Close Time: when the static pressure drops below the Lo pressure set point, the vent doors close during this delay. The close time ranges from 0 to 900 seconds. KOOLMASTER PP-32 REV.01...
  • Page 27 Use the adjustment buttons to set the Close Time to the desired value. Press the down-arrow key once again. The Off Time flashes on the display. Use the adjustment buttons to set the Off Time to the desired value. VENT DOORS TIMER OPEN / CLOSE TIMES TIME PP-32 KOOLMASTER PP-32 REV.01...

  • Page 28: Adjusting Stage Level For The Closing Of Vent Doors

    Press the down-arrow key in order to select "Static Settings 2 At Stage" display. This menu is only displayed if the 2nd group of static pressure set points has been enabled during the installation (see sec. 5.14.3). KOOLMASTER PP-32 REV.01...

  • Page 29: 2Nd Group Of Pressure Set Points: At Outside T° X

    "Outside Temperature Influence" display. Note that this menu only appears if the outside temperature has been enabled during the installation setup and if the 2nd Group of static pressure set points has been enabled (see sec 5.14.3). PP-32 KOOLMASTER PP-32 REV.01...
  • Page 30 The HI static pressure set point #2 (Open At) is selected. Use the adjustment buttons to adjust the 2nd HI static pressure set point (Open At) to the desired value. Press the left-arrow key to exit this menu. KOOLMASTER PP-32 REV.01...

  • Page 31: Tunnel Curtain

    TURN OFF --------------------- CURTAIN CLOSES DURING STAGE B OPEN TIME DELAY CURTAIN STARTS OPENING, THEN STAGE A TUNNEL FANS TURN ON KOOLMASTER PP-32 PP-32 STAGE B TUNNEL FANS TURN ON --------------------- CURTAIN OPENS DURING STAGE B OPEN TIME DELAY ROOM T°...
  • Page 32 The following diagram sums up the operation of the tunnel curtain controlled by the static pressure. TUNNEL CURTAIN - STATIC PRESSURE MODE STATIC PRESSURE HIGH SET POINT LOW SET POINT KOOLMASTER PP-32 STATIC PRESSURE DROPS BELOW LO SET POINT: CURTAIN CLOSES IN TIMER CYCLE (CLOSE TIME/ OFF TIME)
  • Page 33 4. Steps 2 and 3 are repeated until the tunnel curtain runs for over 30 seconds without reaching a static pressure of Hi Static Pressure Limit - 0.01"WC; The house is now in sidewall ventilation mode (vent doors). PP-32 KOOLMASTER PP-32 REV.01...

  • Page 34: Adjusting Minimum Age For Tunnel Ventilation

    (see sec 5.14.3). Press the right-arrow key once to select "1.Set Points" menu. The first tunnel stage # is displayed. Use the adjustment buttons to set the first tunnel stage. KOOLMASTER PP-32 REV.01...

  • Page 35: Adjusting Curtain's Operating Times

    Proceed in similar fashion to set all curtain running times for each tunnel stage below. Remember that the sum of all running times cannot exceed the "Total Run Time" value. (see sec 5.14.3). PP-32 KOOLMASTER PP-32 REV.01...

  • Page 36: Adjusting Static Pressure Hi And Lo Set Points

    The tunnel curtain starts opening or closing according to this timer whenever the static pressure level exceeds high or low set points that have been defined above. KOOLMASTER PP-32 Note that this menu only REV.01 (see...
  • Page 37 Close Time to the desired value. Press the down-arrow key in once. The Off Time is selected. Use the adjustment buttons to set the Off Time to the desired value. CURTAIN'S TIMER OPEN / CLOSE TIMES TIME PP-32 KOOLMASTER PP-32 REV.01...

  • Page 38: Fan Stages Settings

    The relay assignement for fan stages 1 to 4 differs depending on the selected program. Refer to section 5.2 for further information on the controller's programs and to section 5.14.6 to assign fan stage relays. KOOLMASTER PP-32 STAGE S+1 STAGE S FANS...

  • Page 39: Adjusting Fan Stages' Start/Stop Temperatures

    Pumps. The ON and OFF times can be adjusted from 0 to 900 seconds, in increment of 15 seconds. The timer uses operates according to an ON and Off time as follows : FAN STAGES TIMER ON-TIME TIME PP-32 KOOLMASTER PP-32 REV.01...
  • Page 40 Use the adjustment buttons to adjust the On-Time to the desired value. Press the down-arrow key once again and use the adjustment buttons to set the Off-Time to the desired value. Press the left-arrow key to exit this menu. KOOLMASTER PP-32 REV.01...

  • Page 41: Heater Settings

    Use the adjustment buttons to set the Start or Stop temperature to the desired value. Proceed in similar fashion for both winter and summer seasons. Refer to sec. 5.2.2 to select the proper season. PP-32 HEATER TURNS OFF ROOM T° KOOLMASTER PP-32 REV.01...

  • Page 42: Auxiliary Outputs

    TURNS ON TURNS OFF ROOM T° 2. In cooling mode, the auxiliary output operates above its start temperature: AUXILIARY OUTPUTS - IN COOLING MODE AUXILIARY OUTPUT STATUS AUX. OUTPUT AUX. OUTPUT TURNS ON TURNS OFF ROOM T° KOOLMASTER PP-32 REV.01...
  • Page 43 Press the down-arrow key once. The stop temperature is selected (Off Temp.) . Use the adjustment buttons to set stop temperature to the desired value. Proceed in similar fashion for the other auxiliary output (if applicable). PP-32 KOOLMASTER PP-32 REV.01...

  • Page 44: Animal Age

    Setting the Animal Age Set the function to "12. Animal Age" from the main menu using the navigation buttons. The current animal age is displayed. Use the adjustment buttons to set the age to the desired value. KOOLMASTER PP-32 REV.01...

  • Page 45: Clock Outputs

    ON / OFF 9 ON / OFF 10 ON / OFF 10 ON / OFF 10 CLOCK OUTPUTS 3-4 KOOLMASTER PP-32 ON / OFF 1 ON / OFF 2 ON / OFF 3 ON / OFF 4 ON / OFF 5...

  • Page 46: Adjusting Clock Output Start And Stop Times

    If all 10 start and stop times are not needed, set the start and stop times of unused cycles to the same value (any value except for 12:00AM). When all start and stop times are set to 12:00AM, the output runs continuously, 24h. KOOLMASTER PP-32 REV.01...

  • Page 47: Adjusting Starting Day Of Clock Programs

    Use the adjustment buttons to set the age at which the selected program will start. Proceed in similar fashion to adjust the start age for each program of clock outputs 1 and 2 (if appli- cable). PP-32 KOOLMASTER PP-32 REV.01...

  • Page 48: History

    The current average room temperature is displayed. Press the down-arrow key to scroll the menus. The minimum (T°L) and maximum (T°H) temperatures for the past 60 days are displayed. KOOLMASTER PP-32 REV.01...

  • Page 49: Individual Temperature Sensors History

    Set the function to "4.R. Humidity" from the main menu using the navigation buttons then press the right-arrow key. The current humidity level is displayed. This menu is only accessible if a humidity sensor has been installed (see sec. 5.14.3). PP-32 KOOLMASTER PP-32 REV.01...

  • Page 50: Water Consumption History

    Set the function to "14. Heater Run Time" from the main menu using the navigation buttons then press the right-arrow key. Select the desired heater using the navigation buttons then press the right-arrow key. The heater run time for the current day is displayed. KOOLMASTER PP-32 REV.01...
  • Page 51 Keep pressing the down-arrow key to scroll the display. The Heater Run Time values recorded for the past 60 days are displayed. Keep pressing the down-arrow key to scroll the display and look at all histories. KOOLMASTER PP-32 REV.01...

  • Page 52: Alarm Settings

    ° T Another alarm situation occurs when power to the PP-32 fails. In this case, the alarm relay is activated. When the alarm relay is activated, the normally open contact ( KOOLMASTER PP-32 c i t c i t "...

  • Page 53: Setting Alarm Limits

    The room temperature must always remain below the critical tempera- ture, no matter what the outside temperature is. The following diagram illustrates this situation: An alarm is set off NORMAL RANGE: NO TEMPERATURE ALARMS OUTSIDE THE RANGE: THE TEMPERATURE ALARM IS SET OFF PP-32 TIME KOOLMASTER PP-32 REV.01...

  • Page 54: Adjusting Hi/ Lo Temperature Alarms

    Press the right-arrow key once again, in to select the "1.Tempera- ture" menu. Lo and Hi Offsets are displayed. Use the adjustment buttons to set the Lo and Hi offsets to the desired values. KOOLMASTER PP-32 Outside Influence REV.01 ALARM LIMIT OUTSIDE TEMP.

  • Page 55: Adjusting Critical Temperature

    "Out. Influence" display. Note that this menu only appears if the outside temperature sensor has been enabled during the installation (see sec. 5.14.3). Use the adjustment buttons to adjust the Outside Temperature Influence to the desired value. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 56: Adjusting Static Pressure Alarms

    Press the right-arrow key once again in order to select the "1.Hi/Lo limits" option. The Lo and Hi pressure limits are displayed. Use the adjustment buttons to set the Low alarm limit to the desired value. KOOLMASTER PP-32 REV.01...
  • Page 57 Lo Pressure Alarm Delay to the desired value. Press the down-arrow key once again to select the "Hi Delay" display. Use the adjustment buttons to set the Hi Pressure Alarm Delay to the desired value. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 58: Resetting The Alam Log

    (see sec. 5.14.2). Use the adjustment buttons to select "Yes", in order to clear the alarm log. The answer is validated after an 8 second delay or when the user exits the menu. KOOLMASTER PP-32 REV.01...

  • Page 59: Installation

    Fan stages operate according to this average temperature. Sensors must be assigned to each air inlet, in the case where DWR-F-1A modules are used. Inlets use the average temperature of their assigned sensors to operate. PP-32 KOOLMASTER PP-32 REV.01...
  • Page 60 (see sec. 5.9). 20. Adjust the animal age (see sec. 5.10). To clear previous histories, the animal age must first be set to "Off" and then be changed for "1 day". KOOLMASTER PP-32 REV.01...

  • Page 61: Password Settings

    Proceed in similar fashion to set the third two-digit number. Press the right-arrow another time to validate the whole password. If the entered password is incor- rect, the error message “Wrong Password” is displayed. PP-32 KOOLMASTER PP-32 REV.01...
  • Page 62 Installer's Password menu. Use the adjustment buttons to adjust all three numbers of the installer's password. Once the new Installer Password is correctly set, press the left- arrow key to exit this menu. KOOLMASTER PP-32 REV.01...

  • Page 63: Installation Setup

    Set to "Yes" to enable the tunnel ventilation mode. 7. Tunnel Mode: Select either the tunnel curtain is controlled in timer mode (Timer) or by the static pressure level (SP) . This menu only appears if the tunnel is enabled on #6 above. PP-32 KOOLMASTER PP-32 REV.01...
  • Page 64 None =1 program only, abc = 3 programs, 15.# of Heater Stages Set the number of heater stages to the desired value. Up to 8 heater stages can be activated. KOOLMASTER PP-32 ab =2 programs, abcd = 4 programs REV.01...
  • Page 65 19.Use Outside Temperature Sensor ? Set to "Yes" if an outside temperature sensor is connected to the controller. 20.Installer Password Set the 3 two-digit numbers of the installer's password to the desired value. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 66: Sensor Assignment

    The selected sensors are used to calculate the aver- age room temperature into the selected program. Proceed in similar fashion to activate the proper sensors for each program. Refer to sec. 5.2 to select another program. KOOLMASTER PP-32 to activate the sensor or REV.01...

  • Page 67: Assigning Sensors To Heater Stages

    Note that this menu is only available if the static pressure sensor is disabled and if inlets have been activated during the installation setup (see sec. 5.14.3). to activate to deactivate it. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 68: Assigning Sensors To Auxiliary Outputs

    Press the down-arrow key once to select "2.Sensors" menu then press the right-arrow key. Use the navigation buttons to select "2.Auxiliary 1" or "3.Auxiliary 2" menu. Sensors that have been activated during the installation are displayed (see sec. 5.14.3). KOOLMASTER PP-32 REV.01...
  • Page 69 Use the right and left-arrow keys to select the desired sensor. When the item is flashing, press activate the sensor or deactivate it. Proceed in similar fashion to assign sensors to the second auxiliary output, if applicable. KOOLMASTER PP-32 REV.01...

  • Page 70: Setting Time And Date

    HINT: Pressing the UP or DOWN arrow keys acts as a page-up & page-down function. This makes it easier to step through the relays. KOOLMASTER PP-32 REV.01...
  • Page 71 PP-32 KOOLMASTER PP-32 REV.01...

  • Page 72: Assigning Fan Stages' Relays

    The Kool-Cel Pump will then operate while fan stages continue running at the same time. Timer relays can only be set on fan stage outputs. Refer to section 5.7.2 to set the timers' ON and OFF time settings. KOOLMASTER PP-32 to activate to deactivate it.

  • Page 73: Assigning Heater Stages' Relays

    Note that this menu is only available in the installer mode (see sec. 5.14.2) and if vent doors have been enabled during the installation setup (see sec 5.14.3). to activate to deactivate it. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 74: Assigning Relays To The Tunnel Curtain

    Relay" menu then press the right-arrow key. Use the right and left-arrow keys to select the desired relay. When the item is flashing, press the relay or KOOLMASTER PP-32 to activate to deactivate it. to activate to deactivate it. REV.01...

  • Page 75: Assigning Relays To Clock Outputs

    Use the navigation buttons to select the desired auxiliary output then press the right-arrow key. Use the right and left-arrow keys to select the desired relay. When the item is flashing, press the relay or to deacti- to activate to deactivate it. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 76: Assigning Relays For The Lo Static Pressure Alarm

    Use the navigation buttons to select the "2. Lo Static Alarm" menu then press the right-arrow key. Use the right and left-arrow keys to select the desired relay. When the item is flashing, press deactivate it. KOOLMASTER PP-32 to activate the relay or REV.01...

  • Page 77: Calibrating The Water Counter

    The water consumption of the current day is displayed. Press the up-arrow key once. The water flow per pulse is displayed. Use the adjustment buttons to set the water flow per pulse to the desired value. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 78: Advanced Settings

    Certain restrictions apply to reduce the risk of errors: - The highest possible day number is 450. - Decreasing day numbers are not allowed. - Increasing temperatures are not allowed. KOOLMASTER PP-32 TEMPERATURE CURVE DAY 30 DAY 36 DAY 45 DAY 55 REV.01...
  • Page 79 Once they are all properly set, press the down-arrow key. The curve state flashes on the display. Press NOTE: All ten points of the curve must be specified. If ten points are not needed, repeat the last temperature value for each unnecessary point. PP-32 to activate the curve. KOOLMASTER PP-32 REV.01...

  • Page 80: Setting The Minimum Ventilation Curve

    On-Time value for each unnecessary point. ii) Certain restrictions apply to reduce the risk of errors: - The highest possible day number is 450. - Decreasing day numbers are not allowed. - Decreasing On-Times are not allowed. KOOLMASTER PP-32 REV.01...
  • Page 81 Press to activate the curve. NOTE: All ten points of the curve must be specified. If you don't need ten different points, repeat the last On-Time for each unnecessary point of the curve. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 82: Koolmaster Pp-32 Rev

    (see sec. 5.14.3). Use the navigation buttons to select the relative humidity set point (RH Set Point) display. Use the adjustment buttons to adjust the relative humidity set point to the desired value. KOOLMASTER PP-32 REV.01...

  • Page 83: Rh Compensation On Minimum Ventilation

    Min Vent sec) . Note that this menu only appears if dipswitch #7 is turned ON. ON TIME + ADDED DELAY WHEN THE HUMIDITY EXCEEDS THE RH SET POINT, THE ON TIME STARTS INCREASING RH SET POINT PP-32 HUMIDITY (RH) KOOLMASTER PP-32 RELATIVE REV.01...

  • Page 84: Adjusting Mist Or Kool-Cel Shutoff

    Heaters reach their HUMIDITY COMPENSATION ON HEATERS SECONDS MAX ON TIME MIN ON TIME 0 SEC KOOLMASTER PP-32 HEATERS REACH MAXIMUM ON TIME HEATERS START IN TIMER MODE WITH MIN. ON TIME RH SET POINT REV.01...
  • Page 85 Use the adjustment buttons to set the Heater's On-Time to the desired value. Press the down-arrow key once to select the "Heater Off time" display. Use the adjustment buttons to set the Heater's Off-Time to the desired value. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 86: Calibrating Sensors

    (see sec. 5.14.3). Press the down-arrow key once in order to select the calibration menu of the humidity sensor "Cal. RH". Note that this menu is only dis- played in the installer mode (see sec. 5.14.2). KOOLMASTER PP-32 REV.01...

  • Page 87: Calibrating The Static Pressure Level

    (see sec. 5.14.2 and 5.14.3). Use the adjustment buttons to set the humidity level that will be added or removed from all readings of the humidity sensor. PP-32 KOOLMASTER PP-32 REV.01...

  • Page 88: Test Mode

    The controller then displays the fan stage that is activated, in accordance with the selected temperature. It also displays the current program in use and the static pressure readings (if a static pressure sensor is used). These values are displayed as readings, they cannot be modified. KOOLMASTER PP-32 REV.01...

  • Page 89: Technical Specifications

    1A max, fast-blow 10mA to 2A, 24 Vac or dc max. NEMA 4X, IP54, plastic casing, IEC 529, UL-508-4X 32 to 140°F (0 to 40°C) 5 to 104°F (-15 to 50°C) max. 95% AND 104 F (0 KOOLMASTER PP-32 AND 40 REV.01...

  • Page 90: Factory Settings

    7. FACTORY SETTINGS KOOLMASTER PP-32 " " ° ° ° ° " " REV.01 ° ° ° ° ° ° ° ° " " ° ° ° ° " "...

  • Page 91: Using The Configuration Module

    4- Once the configuration has reached 100%, press the up and down- arrow keys menu. 5- The new configuration is now loaded. Remove the configuration module from the connector. once again simultaneously to exit this KOOLMASTER PP-32 . The REV.01...

  • Page 92: Saving A Configuration

    5- Once the configuration has reached 100%, press the up and down- arrow keys 6- The new configuration is now saved on the configuration module. Remove the configuration module from the connector. KOOLMASTER PP-32 during once again to exit this menu. REV.01...

  • Page 93: Installation Report

    9. INSTALLATION REPORT CONTACT INFORMATION CLIENT INFORMATION INSTALLER INFORMATION KOOLMASTER PP-32 REV.01...
  • Page 94 Heater 5 Heater 6 Heater 7 Auxiliary 1 Auxiliary 2 Inlet 1 Inlet 2 Inlet 3 Inlet 4 Inlet 5 Inlet 6 Inlet 7 Inlet 8 Inlet 9 Inlet 10 Inlet 11 Inlet 12 KOOLMASTER PP-32 SENSOR ASSIGNEMENT DESCRIPTION REV.01 SENSORS...
  • Page 95 STATIC P. OUTSIDE T° (0 to 12) COOLING COOLING (2 to 16) abcd (0 to 8) (0 to 4) (1 to 8) (1 to 8) (1 to 8) OUTSIDE T° INFLUENCE ON ALARMS (0 to 100%) KOOLMASTER PP-32 °F REV.01...
  • Page 96 At cooling stage 3: Exhaust Fans 1, 2 and 3 run continuously and Each controller program uses a separate relay assignment for cooling stages 1 to 4 (program a, b, c or d). KOOLMASTER PP-32 n i l n i l...
  • Page 97 n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l...

  • Page 98: Index
